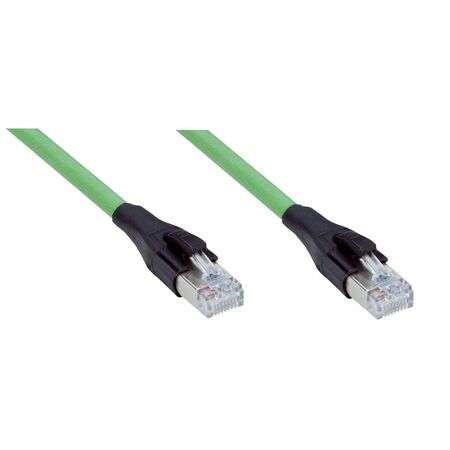

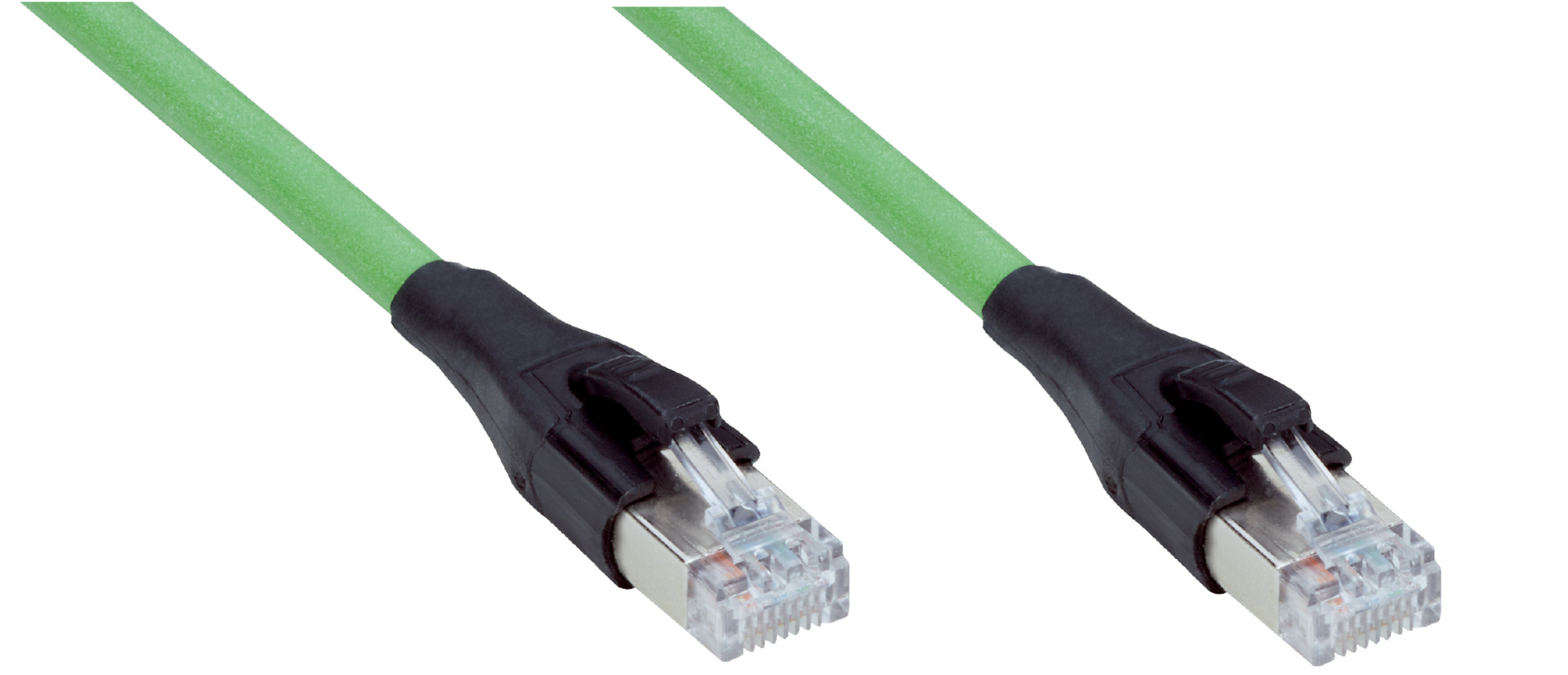

Industrial Ethernet Cable CAT6A Shielded | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Industrial Ethernet Cable CAT6A Shielded is designed for high-performance networking, supporting data rates up to 10 Gbit/s. With male RJ45 connectors on both ends and a halogen-free PUR jacket, this cable is perfect for industrial environments, ensuring durability and safety in harsh conditions. Ideal for data transmission in areas exposed to oils and lubricants, it meets stringent safety standards for reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male RJ45, 8-pin, straight
- Connection type head B: Male RJ45, 8-pin, straight
- Connector material: TPU
- Connector color: Black
- Cable length: 50 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage cable: 125 V AC
- Test voltage cable: 1000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature cable: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, 1100 (FT2), 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 6400mm x 6400mm
- Weight: 0.2 kg
Key Features
- Male RJ45 8-pin straight connectors on both ends
- Shielded CAT6A cable supporting up to 10 Gbit/s data rate
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2
- Operating temperature range: -40°C to +80°C (cable), -25°C to +85°C (head)
- Contamination rating 3 for industrial environments
- Cable length: 50 meters
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper handling and compliance with safety standards.
Applications
- Industrial Ethernet networks
- Zones with oils and lubricants
- Data transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Durable PUR jacket extends cable lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YMRJA8-500EG1 Ethernet CAT6A Shielded Cable is available for immediate purchase, ideal for industrial Ethernet networking applications in harsh environments.
