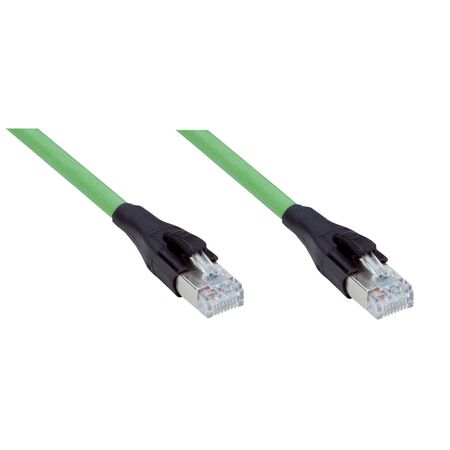

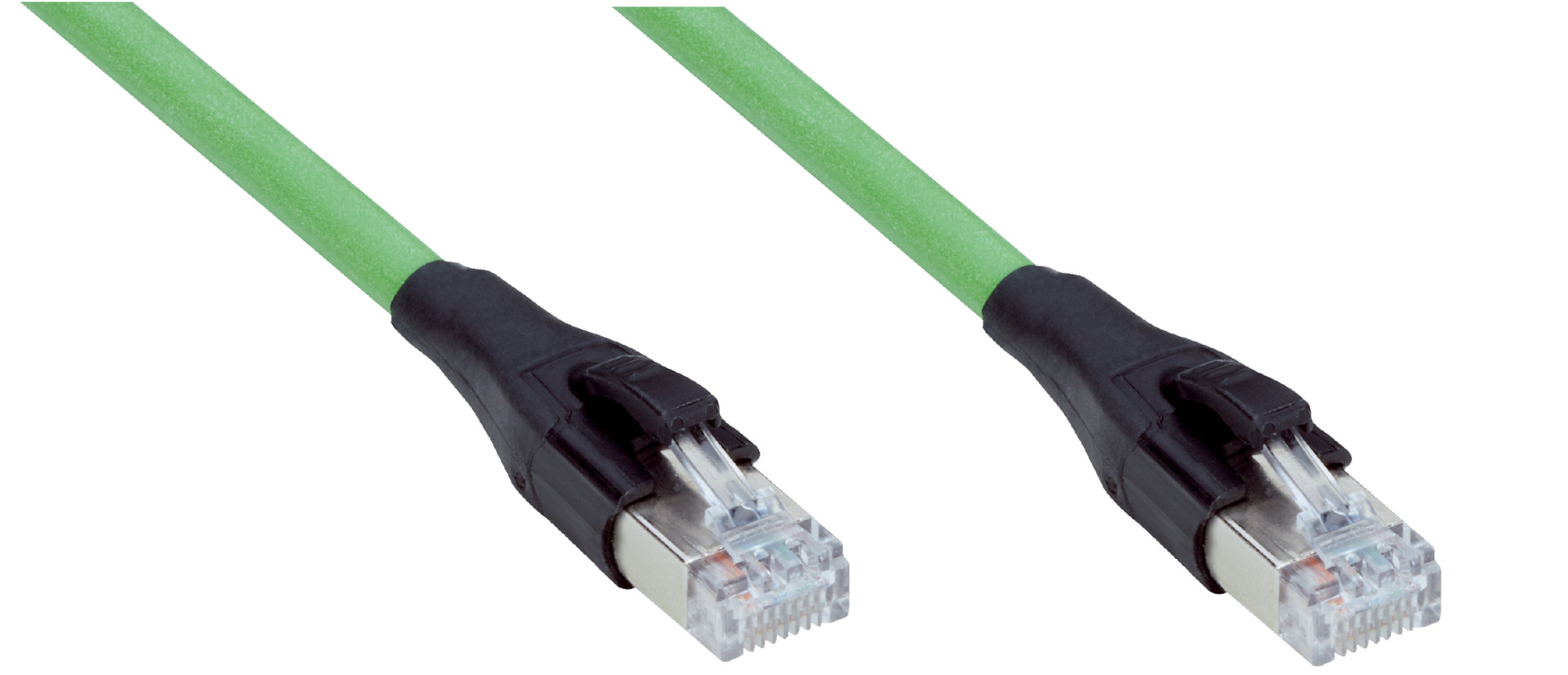

Industrial Ethernet Cable CAT6A | Shielded RJ45 | 10 Gbit/s Data Rate | Halogen-Free PUR | by SICK
The Industrial Ethernet Cable CAT6A is designed for high-speed data transmission, supporting up to 10 Gbit/s. With male RJ45 connectors on both ends and a halogen-free PUR jacket, this cable is perfect for industrial environments where flame retardant properties are essential. Ideal for applications in zones with oils and lubricants, it ensures reliable connectivity and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Cable length: 0.6 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Enclosure rating: IP20
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 600mm x 6mm
- Weight: 0.1 kg
Key Features
- Male RJ45 8-pin straight connectors on both ends
- Shielded CAT6A cable supporting data rates up to 10 Gbit/s
- Cable jacket and conductor insulation are halogen-free PUR
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- IP20 enclosure rating suitable for protected environments
- Contamination rating 3 for industrial use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission requiring Gigabit Ethernet speeds
- Environments requiring flame retardant and halogen-free cabling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YMRJA8-C60EG1MRJA8 Ethernet CAT6A Shielded Cable is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and flame retardant cabling.
