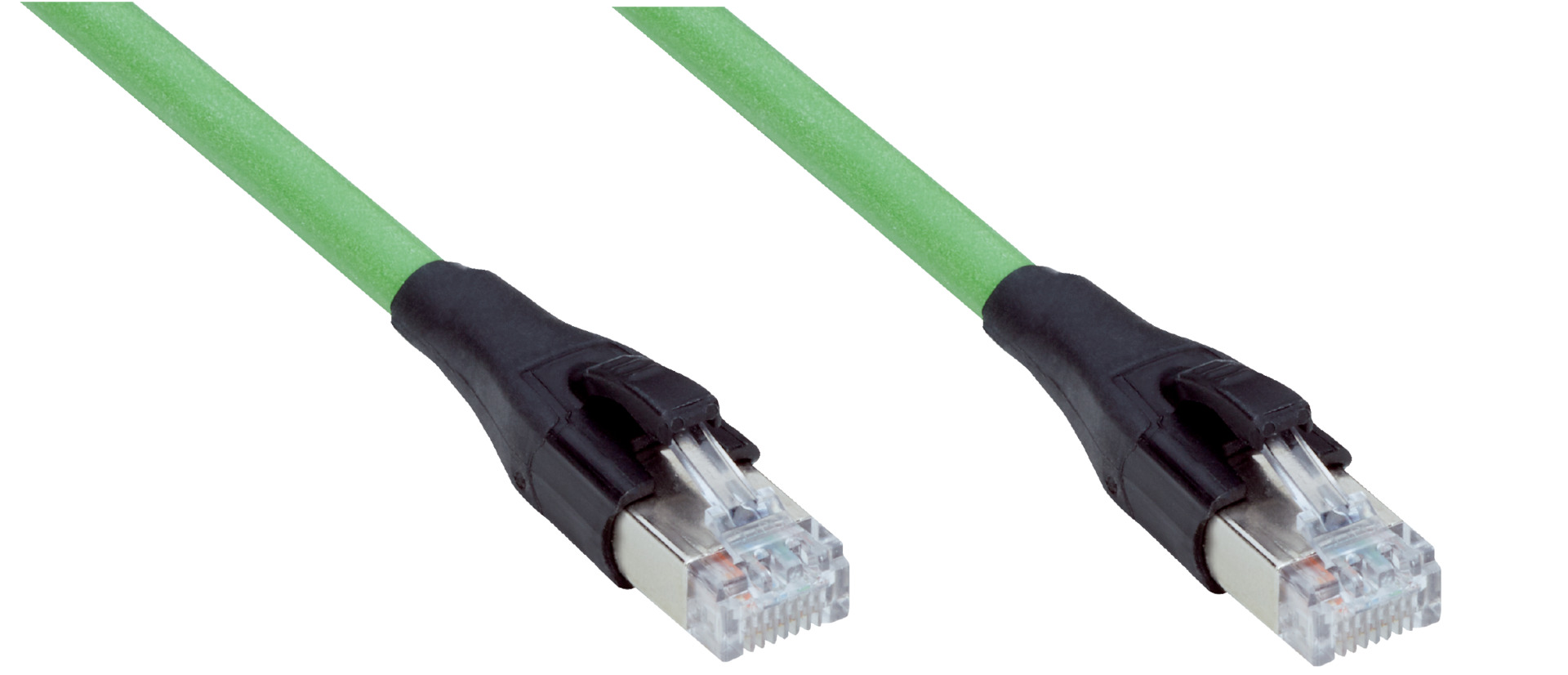

Industrial Ethernet Cable CAT6A | Shielded RJ45 | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Industrial Ethernet Cable CAT6A is designed for high-speed data transmission in industrial environments, featuring shielded RJ45 connectors and supporting up to 10 Gbit/s. With a halogen-free PUR jacket, this cable is ideal for automation and control systems, ensuring safety and reliability even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Cable length: 1.5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP20
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 1500mm x 6mm
- Weight: 0.1 kg
Key Features
- Male RJ45 8-pin straight connectors on both ends
- Shielded CAT6A cable supporting up to 10 Gbit/s data transmission
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Contamination rating 3 suitable for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks requiring high-speed data transmission
- Zones with oils and lubricants
- Automation and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

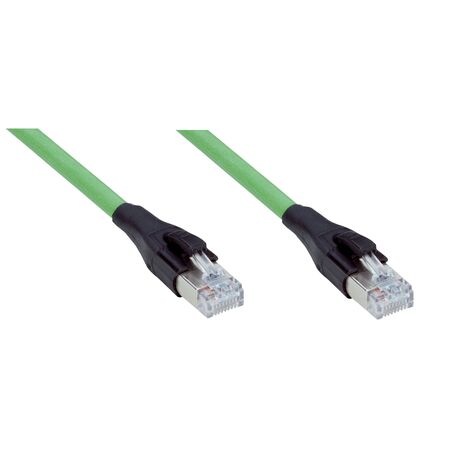

The SICK YMRJA8-015EG1 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet network installations requiring robust and high-speed data transmission.
