Industrial Ethernet Cable M12 | 30m Length | Shielded & Durable | IP65/IP66K/IP67 Rated | by SICK

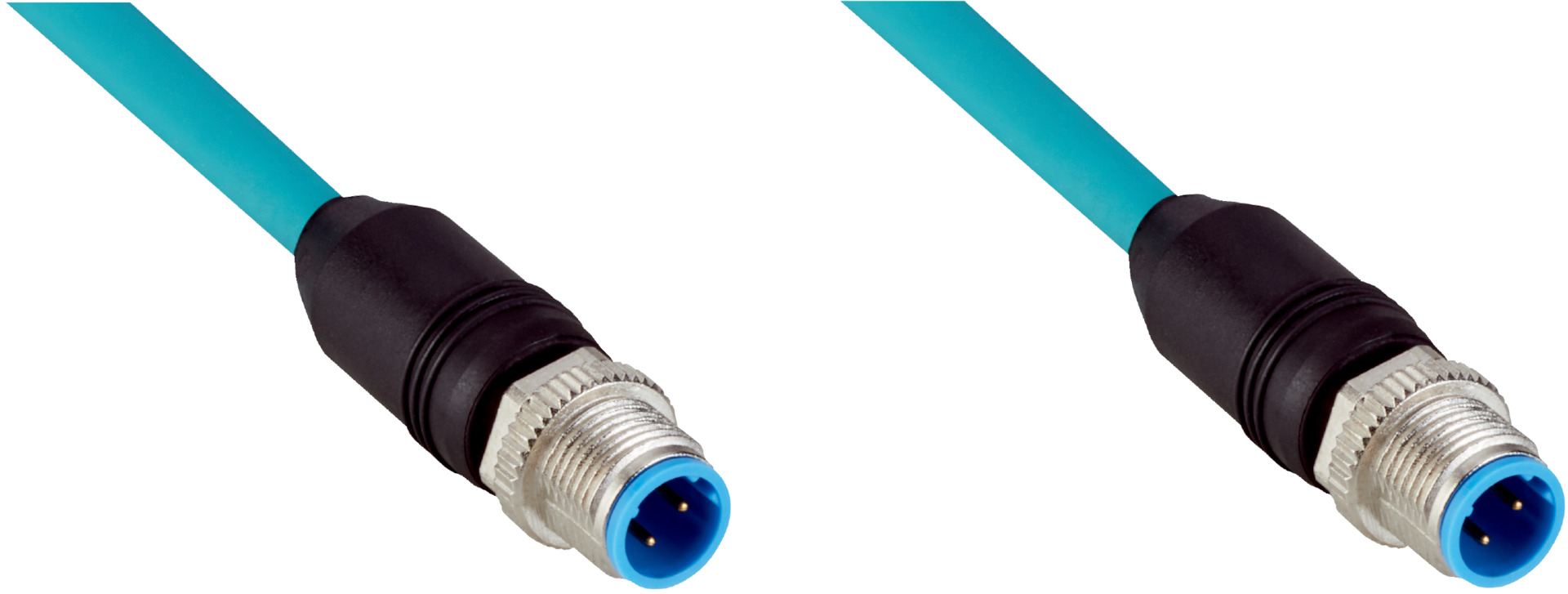

The Industrial Ethernet Cable M12 is designed for robust connectivity in industrial automation and robotic applications. With male M12 4-pin straight D-coded connectors on both ends and a durable 30m TPE cable, it ensures reliable data transmission with CAT5e characteristics. Rated for 600 V AC and featuring an IP65/IP66K/IP67 enclosure rating, this cable is perfect for drag chain operations and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 30 m
- Cable type: 4-wire, TPE
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Current loading: 4 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 30000mm x 13mm
- Weight: 0.5 kg
Key Features
- Male M12 4-pin straight D-coded connectors on both ends
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 30 m length, 4-wire TPE cable with turquoise jacket
- Shielded cable with bending radius > 10x cable diameter for flexible use
- High durability with 1,000,000 bending cycles and 3,000,000 torsion cycles
- Rated for 600 V AC nominal voltage and 1,500 V AC test voltage
- Supports Ethernet and EtherNet/IP™ with CAT5e transmission characteristics
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Contamination rating 3 and overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial Ethernet cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Shielded cable reduces electromagnetic interference, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-300EF4M2D24 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and reliable Ethernet connectivity.
