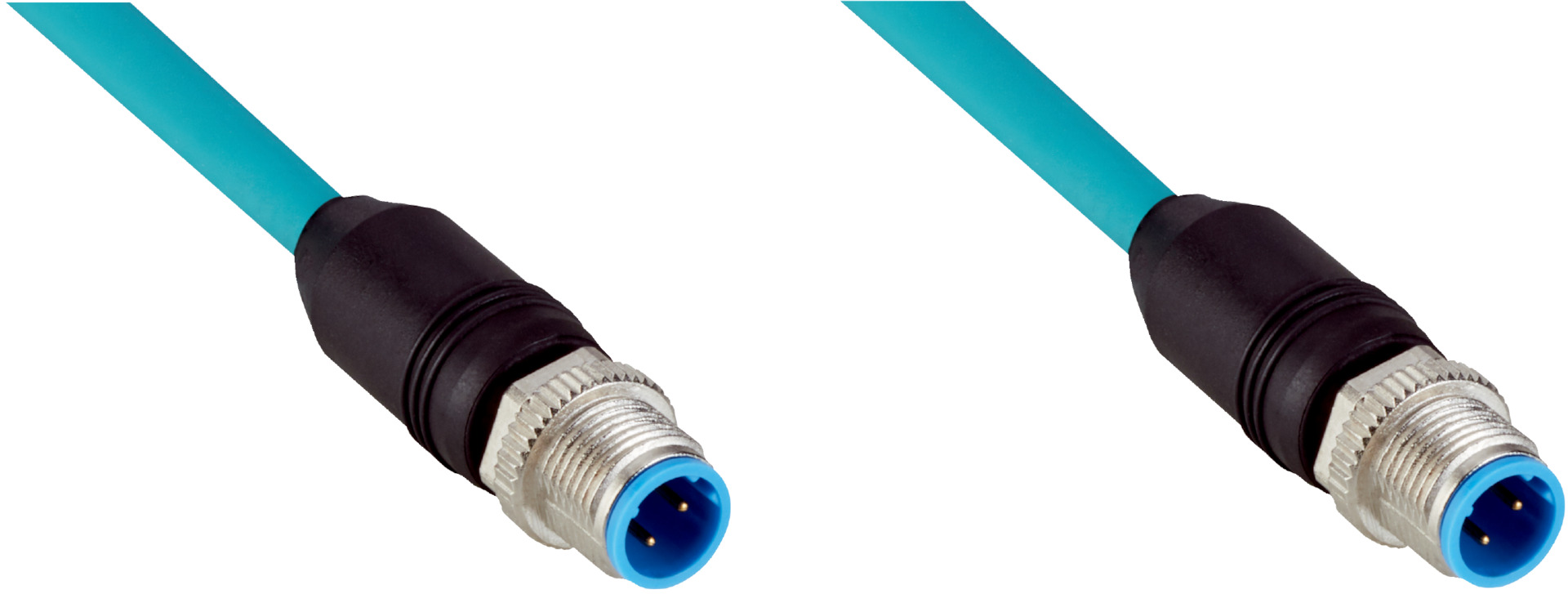

Industrial Ethernet Cable M12 4-Pin | 40m Length | Shielded & Durable | IP65/IP66K/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 4-Pin is designed for robust connectivity in industrial automation and robotic applications. With a 40m length, shielded construction, and IP65/IP66K/IP67 rating, it ensures reliable performance even in harsh environments. Ideal for drag chain operation and areas exposed to oils and lubricants, this cable supports Ethernet and EtherNet/IP™ signals, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 40 m, 4-wire, TPE
- Jacket material: TPE
- Jacket color: Turquoise
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage, cable: 600 V AC
- Test voltage, cable: 1,500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 40000mm x 13mm
- Weight: 0.5 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on both ends
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- 40 m long, 4-wire TPE cable with turquoise jacket
- Shielded cable with 6.6 mm diameter
- High bending radius for flexible use and drag chain operation
- Nominal voltage of 600 V AC and test voltage of 1,500 V AC
- Supports Ethernet, EtherNet/IP™ signal type with CAT5e transmission
- Data transmission rate up to 0.1 Gbit/s
- IP65 / IP66K / IP67 enclosure rating
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- High torsion force and cycles for durability
- Overvoltage category III and insulation resistance > 100 MΩ
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
- Shielded cable reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK YM2D24-400EF4M2D24 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable Ethernet connectivity.
