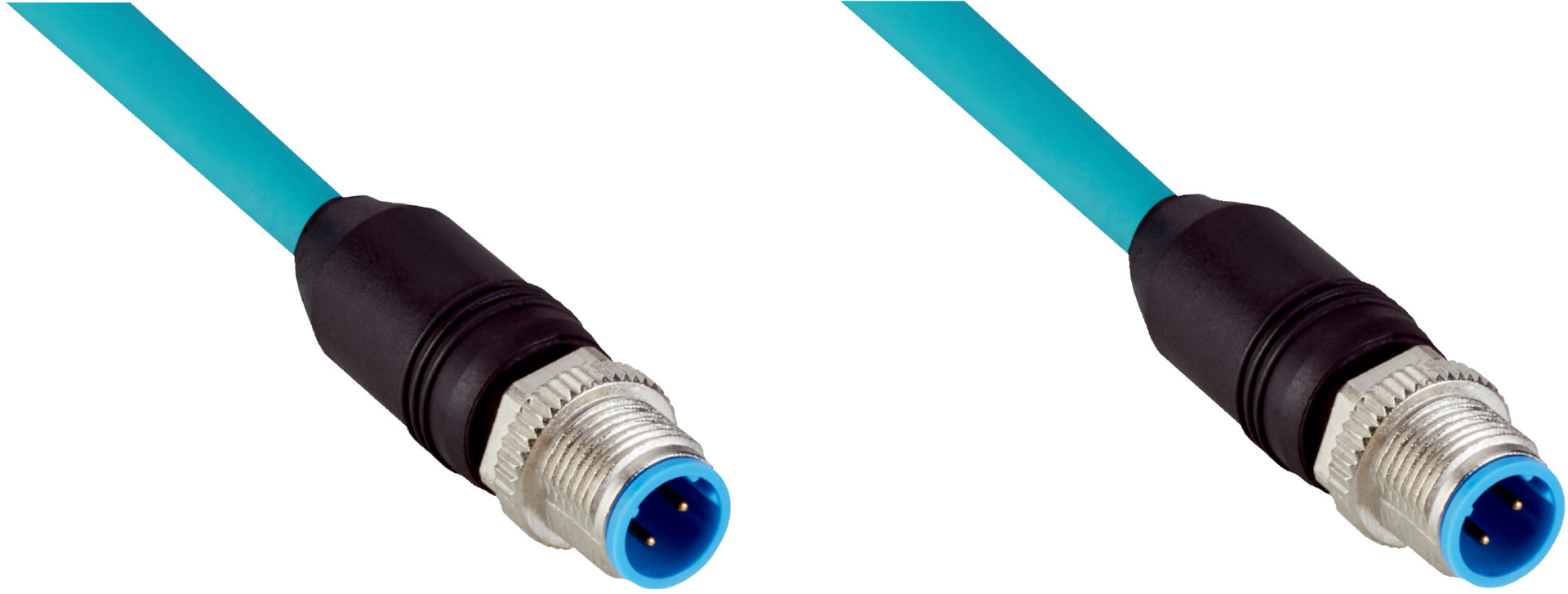

Industrial Ethernet Cable M12 | 4-Pin D-Coded Connectors | Shielded CAT5e | IP65/IP66K/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 is designed for robust connectivity in industrial automation, featuring male M12 4-pin D-coded connectors on both ends. With a shielded CAT5e construction, it ensures reliable data transmission for Ethernet and EtherNet/IP™ applications. Ideal for drag chain operations and environments with oils and lubricants, this cable operates effectively in temperatures ranging from -40°C to +80°C, providing durability and high torsion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m, 4-wire, TPE jacket
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage cable: 600 V AC
- Test voltage cable: 1,500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12 4-pin straight D-coded connectors on both ends
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- Shielded CAT5e cable for Ethernet and EtherNet/IP™ data transmission
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- IP65 / IP66K / IP67 rated enclosure for robust protection
- High torsion resistance with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial Ethernet cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-050EF4M2D24 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and reliable Ethernet connections.
