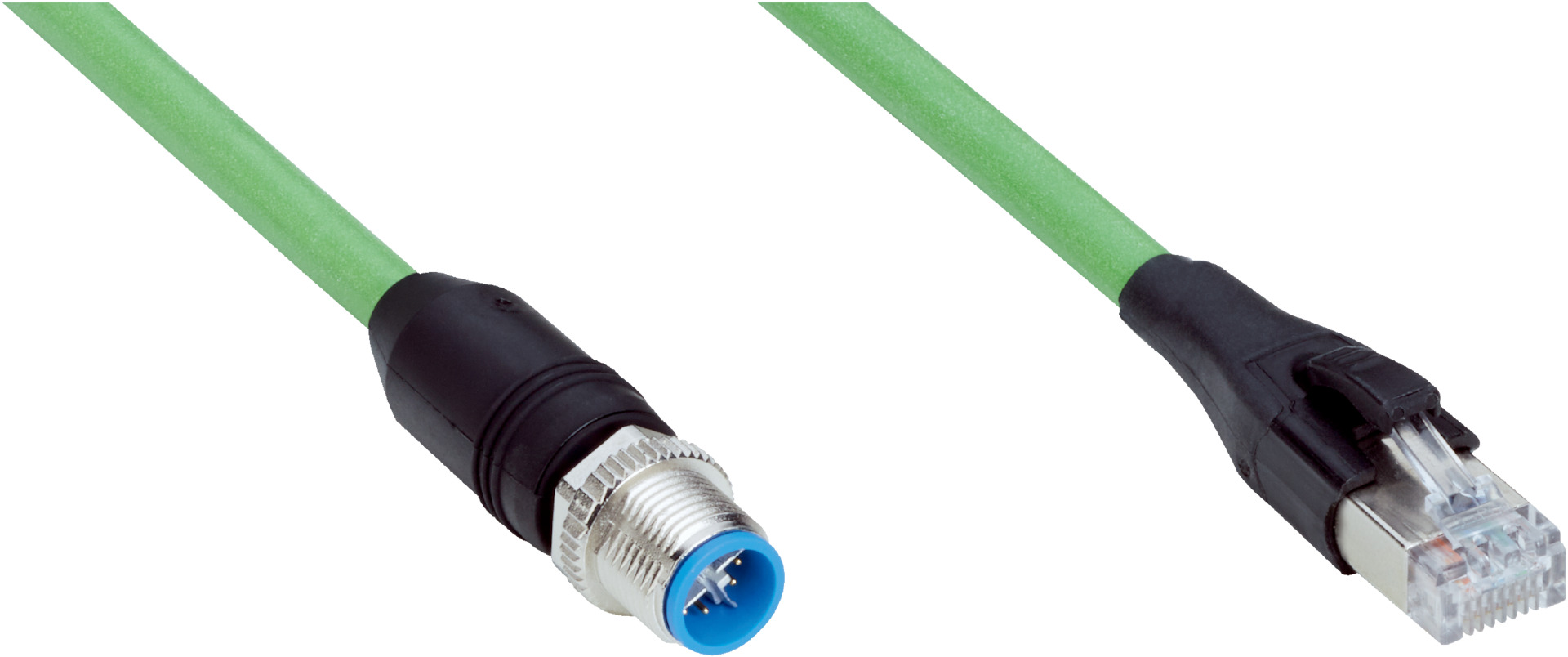

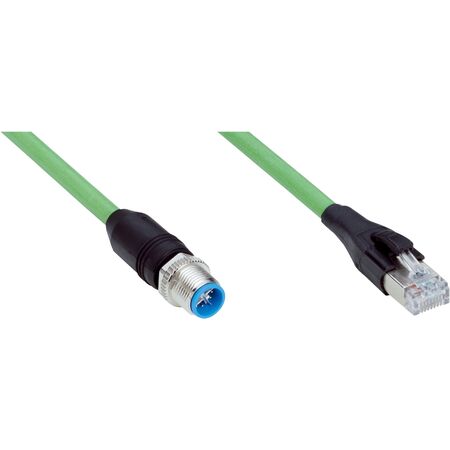

Industrial Ethernet Cable M12 to RJ45 | 5m Length | CAT6A Shielded | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust data transmission in harsh environments, featuring a 5m length and CAT6A shielding for up to 10 Gbit/s speeds. With an IP65/IP67 rating, it's perfect for industrial automation and networking applications, ensuring reliable connections even in zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded and Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable is 5 m long, 8-wire, PUR, halogen-free with green jacket
- Shielded cable with CAT6A transmission characteristics supporting ≤ 10 Gbit/s data rate
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Enclosure rating IP65/IP67 for M12 connector and IP20 for RJ45 connector
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial Ethernet cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission in harsh environments requiring IP65/IP67 protection
- Gigabit Ethernet networking in manufacturing and automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and flame retardant materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2X18-050EG1MRJA8 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and networking applications requiring robust and reliable data transmission.
