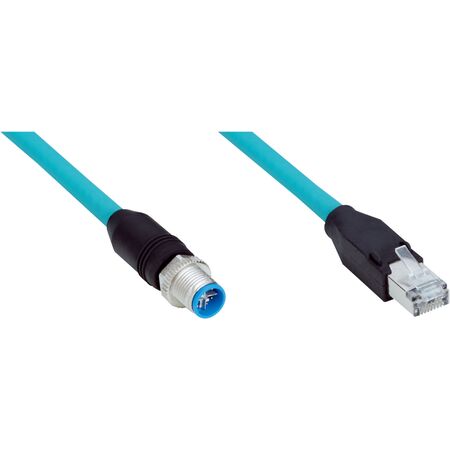

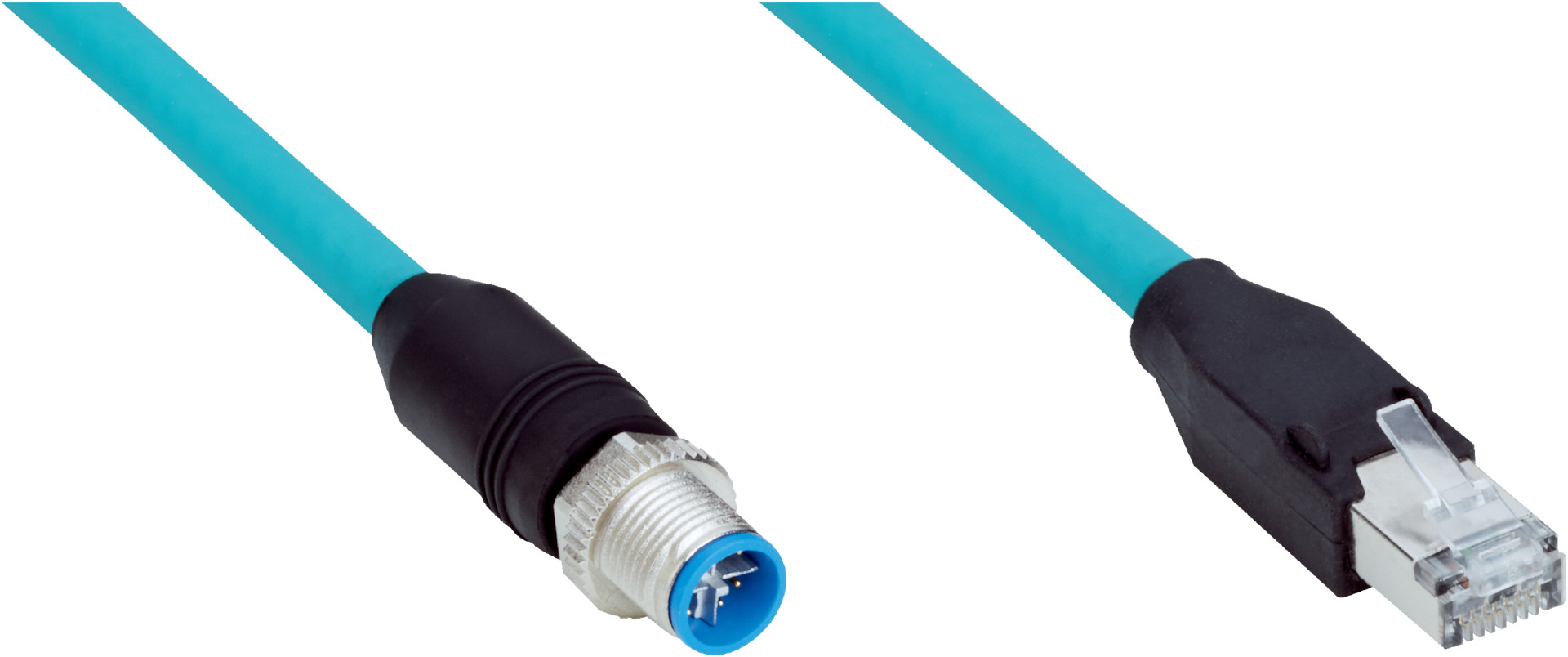

Industrial Ethernet Cable M12 to RJ45 | CAT6A | 10 Gbit/s Data Rate | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for high-performance data transmission in industrial automation and robotics. With CAT6A transmission characteristics and a data rate of up to 10 Gbit/s, this cable is perfect for drag chain operations and environments with oils and lubricants. Built to withstand extreme temperatures from -40°C to +85°C, it features a robust shielded design and IP65/IP67 rating for reliable performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 8-wire, TPE jacket
- Cable diameter: 7.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 20 x cable diameter
- Bending cycles: 10,000,000
- Nominal voltage cable: 600 V AC
- Test voltage cable: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame-retardant
- Dimensions (H x L x W): 7mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range -40°C to +85°C
- IP65/IP67 rated for M12 connector and IP20 for RJ45 connector
- Torsion force 270° per meter with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2X18-050EG2MRJA8 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable data transmission in harsh environments.
