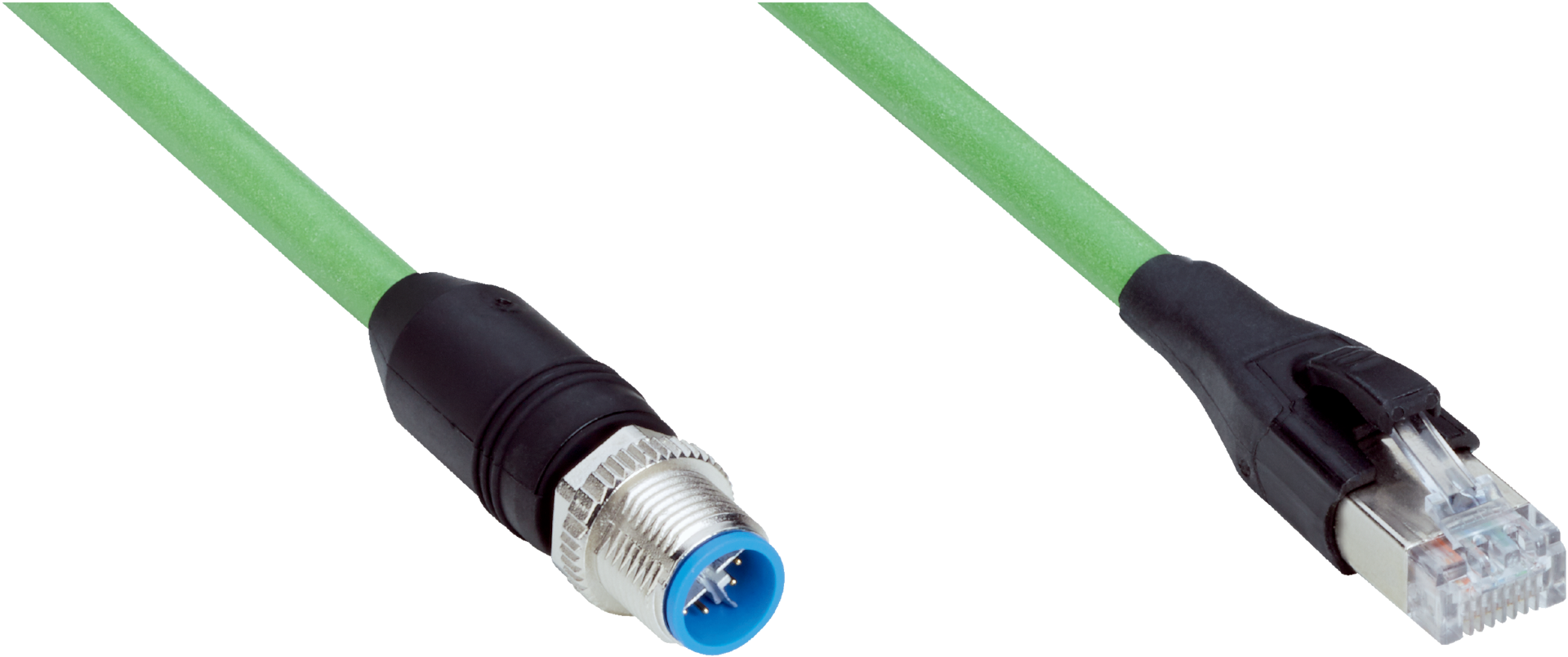

Industrial Ethernet Cable M12 to RJ45 | CAT6A | IP65/IP67 Rated | PUR Halogen-Free Jacket | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust data transmission in industrial environments. Featuring a CAT6A rating for up to 10 Gbit/s speeds and an IP65/IP67 rating for protection against dust and water, this cable is perfect for applications in harsh conditions. With a durable PUR halogen-free jacket, it ensures safety and longevity, making it ideal for industrial Ethernet connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial Ethernet Cable M12 to RJ45, SICK Ethernet Patch Cable, PUR Jacket Ethernet Cable, Gigabit Ethernet Cable Industrial
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on (M12), snap-in (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage: 125 V AC
- Test voltage: 1000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 8-pin X-coded connector and Male RJ45 8-pin connector
- Screw-on locking for M12 and snap-in locking for RJ45 connectors
- PUR halogen-free jacket, green color
- Shielded cable with 8 wires and 0.14 mm² conductor cross section
- CAT6A transmission characteristics supporting up to 10 Gbit/s data rate
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- IP65/IP67 rated for M12 connector, IP20 for RJ45 connector
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and electrical safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission for Gigabit Ethernet networks
- Use in harsh environments requiring IP65/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

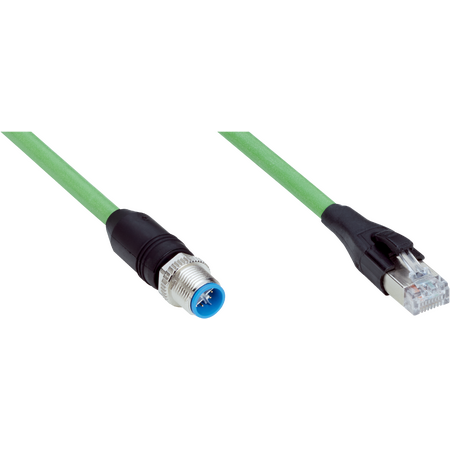

The SICK YM2X18-050EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial networking applications requiring robust and reliable data transmission.
