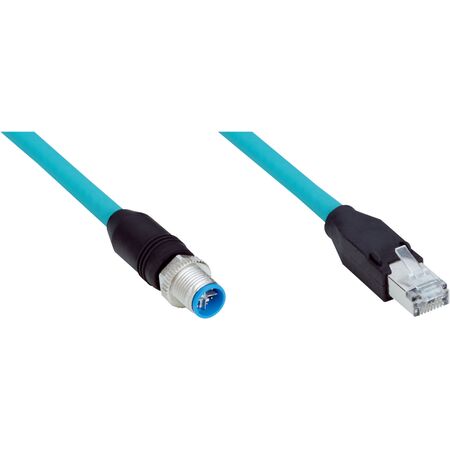

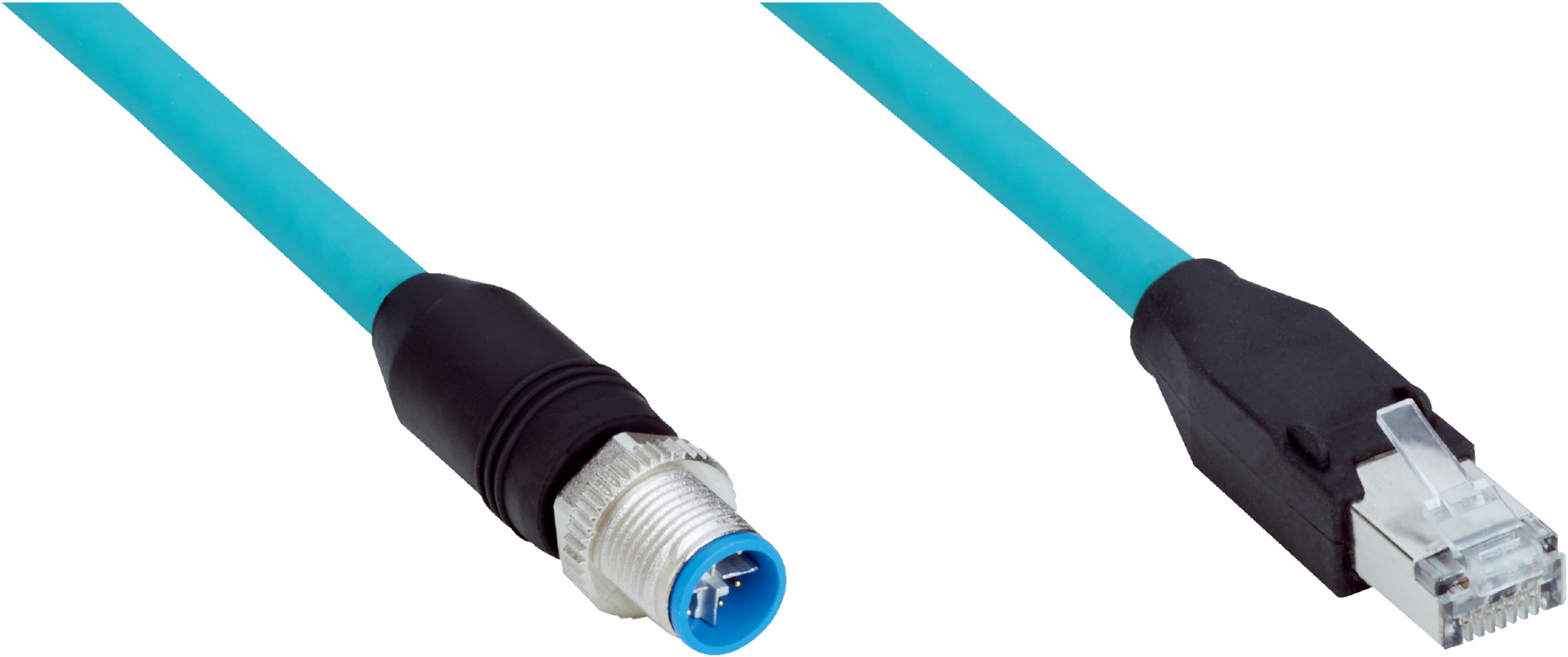

Industrial Ethernet Cable M12 to RJ45 | Gigabit Ethernet | 10m Length | Shielded Design | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for high-speed data transmission in industrial environments. With a robust 10m length and shielded construction, it supports Gigabit Ethernet with CAT6A characteristics, making it ideal for drag chain operations and robotic applications. Built to withstand harsh conditions, this cable ensures reliable connectivity and minimal electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 8-wire, TPE jacket
- Cable diameter: 7.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius drag chain operation: > 20 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Operating temperature: -40 °C to +80 °C stationary, -25 °C to +85 °C head
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame-retardant
- Dimensions (H x L x W): 10mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded and Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 10 m length, 8-wire TPE cable with turquoise jacket
- Shielded cable with 0.14 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Supports Gigabit Ethernet with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Torsion force 270°/1 m and 3,000,000 torsion cycles
- Operating temperature range -40 °C to +85 °C
- Enclosure rating IP65/IP67 (M12), IP20 (RJ45)
- UL File No. E513908 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and high bending radius reduce cable replacements and waste.
- Shielded design minimizes electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2X18-100EG2MRJA8 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable high-speed data transmission.
