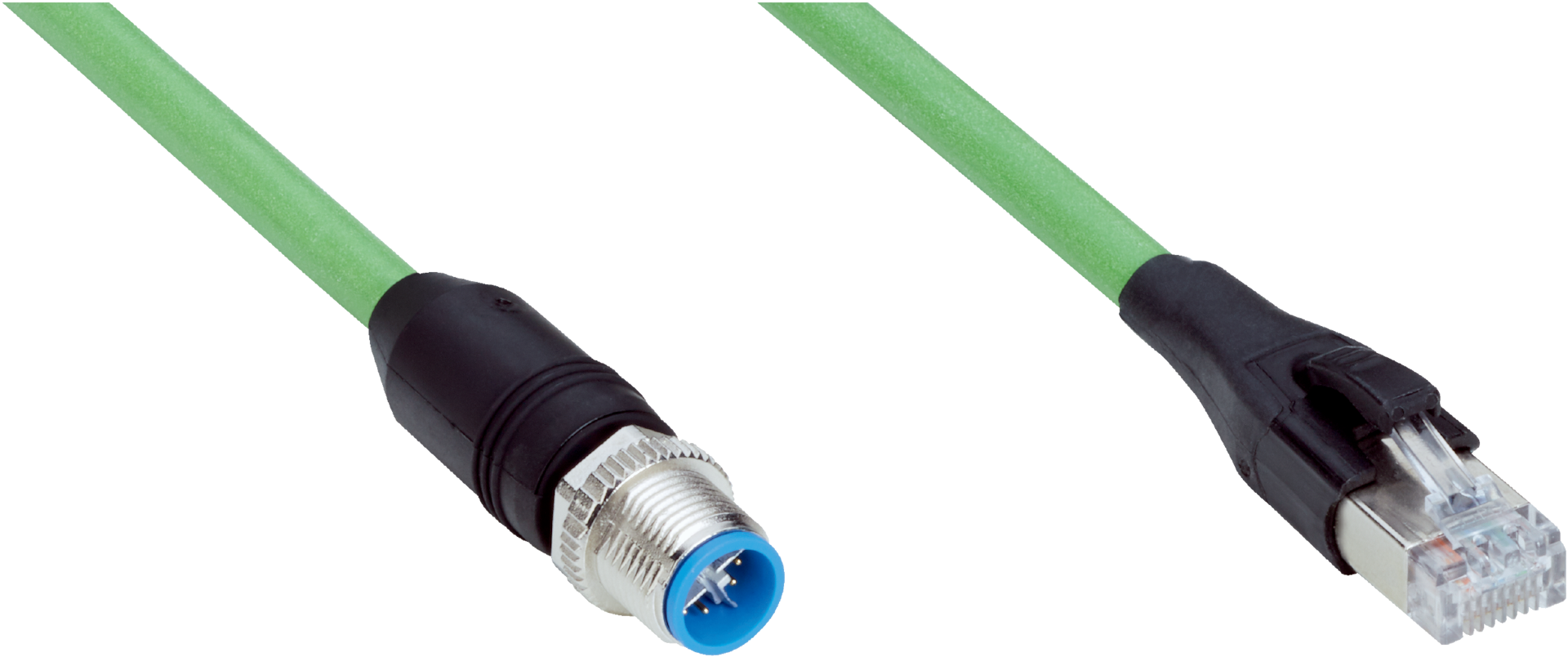

Industrial Ethernet Cable M12 to RJ45 | Gigabit Ethernet | Halogen-Free PUR Jacket | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust industrial communication, featuring a halogen-free PUR jacket and supporting Gigabit Ethernet with CAT6A transmission characteristics. Ideal for use in harsh environments with oils and lubricants, this cable ensures reliable data transmission rates up to 10 Gbit/s, making it perfect for automation and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial Ethernet Cable M12 to RJ45, SICK Ethernet Cable PUR Jacket, Gigabit Ethernet Cable Industrial
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage cable: 125 V AC
- Test voltage cable: 1000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable jacket made of halogen-free PUR material
- Shielded cable with 8 wires and 0.14 mm² conductor cross section
- Supports Gigabit Ethernet with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Enclosure rating IP65/IP67 for M12 connector, IP20 for RJ45 connector
- Flame retardant according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet communication in zones with oils and lubricants
- Data transmission for automation and control systems
- Use in harsh environments requiring robust cable protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

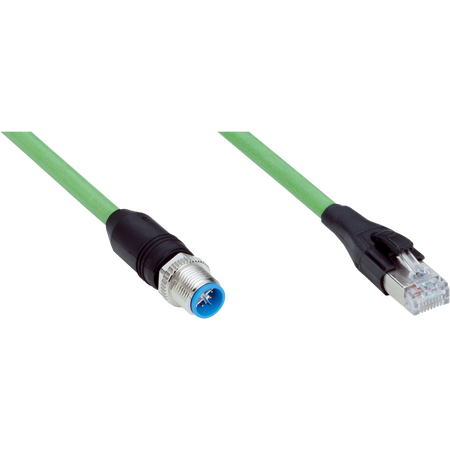

The SICK YM2X18-020EG1MRJA8 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and communication applications in harsh environments.
