Industrial Ethernet Cable | M12 to RJ45 | Shielded | 10 Gbit/s Data Rate | by SICK
The Industrial Ethernet Cable is designed for high-performance data transmission, featuring a male M12 connector and a male RJ45 connector. With a robust shielded design and a data transmission rate of up to 10 Gbit/s, it's perfect for industrial automation and robotic applications. Built to withstand harsh environments, this cable operates effectively in temperatures ranging from -40°C to +85°C, ensuring reliable connectivity in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

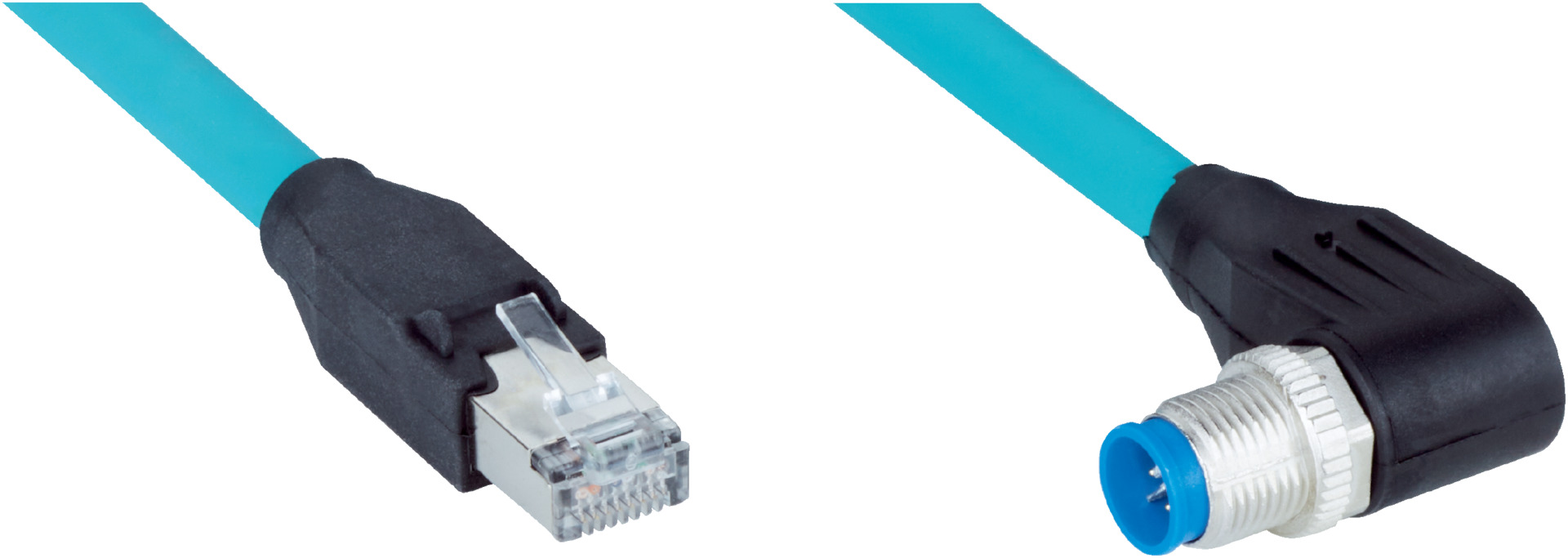

- Connection type head A: Male connector, M12, 8-pin, angled, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m, 8-wire, TPE jacket
- Cable diameter: 7.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 20 x cable diameter
- Nominal voltage, cable: 600 V AC
- Test voltage, cable: 500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: Fieldbus, CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Torsion force: 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position -40°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 8-pin, angled, X-coded and male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded cable with TPU connector material and TPE jacket
- High data transmission rate up to 10 Gbit/s
- Durable for torsion cycles up to 3,000,000 and bending radius suitable for flexible use
- Enclosure rating IP65/IP67 (M12) and IP20 (RJ45)
- Operating temperature range from -40°C to +85°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and Gigabit Ethernet data transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing electronic waste
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

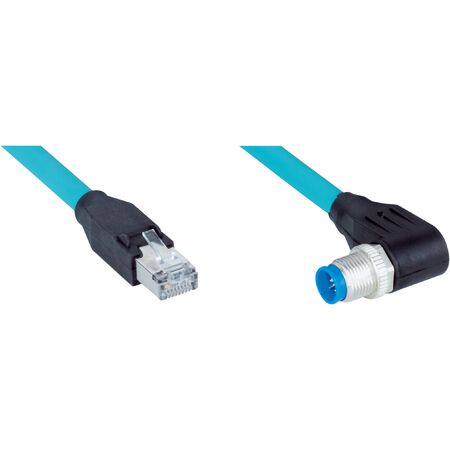

The SICK YN2X18-050EG2MRJA8 Ethernet Gigabit Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable data transmission.
