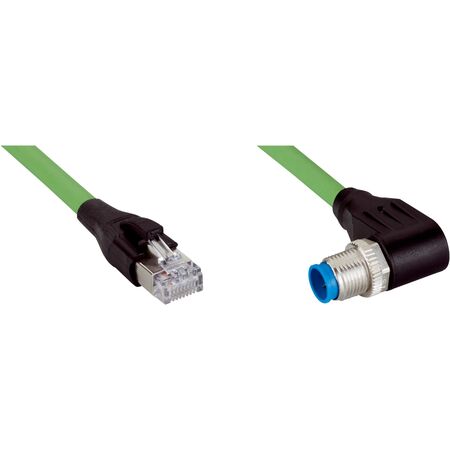

Industrial Ethernet Cable | M12 to RJ45 | Shielded | 10m Length | by SICK
The Industrial Ethernet Cable is designed for robust data transmission in automation systems, featuring a male M12 connector and a straight RJ45 connector. With a 10m length and CAT6A transmission characteristics, it supports data rates up to 10 Gbit/s, making it ideal for harsh environments. The halogen-free PUR jacket enhances safety and durability, ensuring reliable performance in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, angled, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 10 m, 8-wire, AWG26, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature stationary: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: ≥ 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: ≤ 30 mΩ
- Dimensions (H x L x W): 10mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 8-pin, angled, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection for M12 and snap-in locking for RJ45
- Cable length 10 m with 8-wire, AWG26, PUR, halogen-free jacket
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Enclosure rating IP65/IP67 for M12 and IP20 for RJ45
- Operating temperature range -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Contamination rating 3
- UL File No. E513908
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections
- Automation systems requiring Gigabit Ethernet
- Harsh environment data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2X18-100EG1MRJA8 Ethernet Cable is available for immediate purchase, ideal for industrial and automation applications requiring reliable high-speed data transmission.
