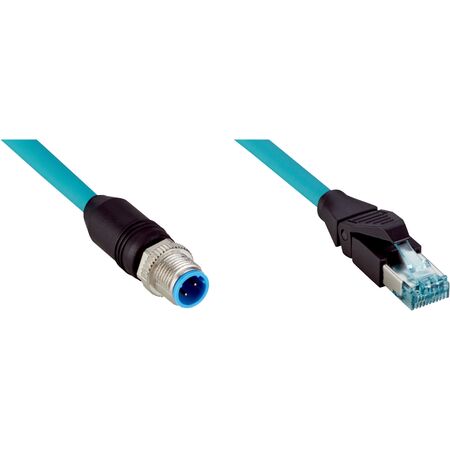

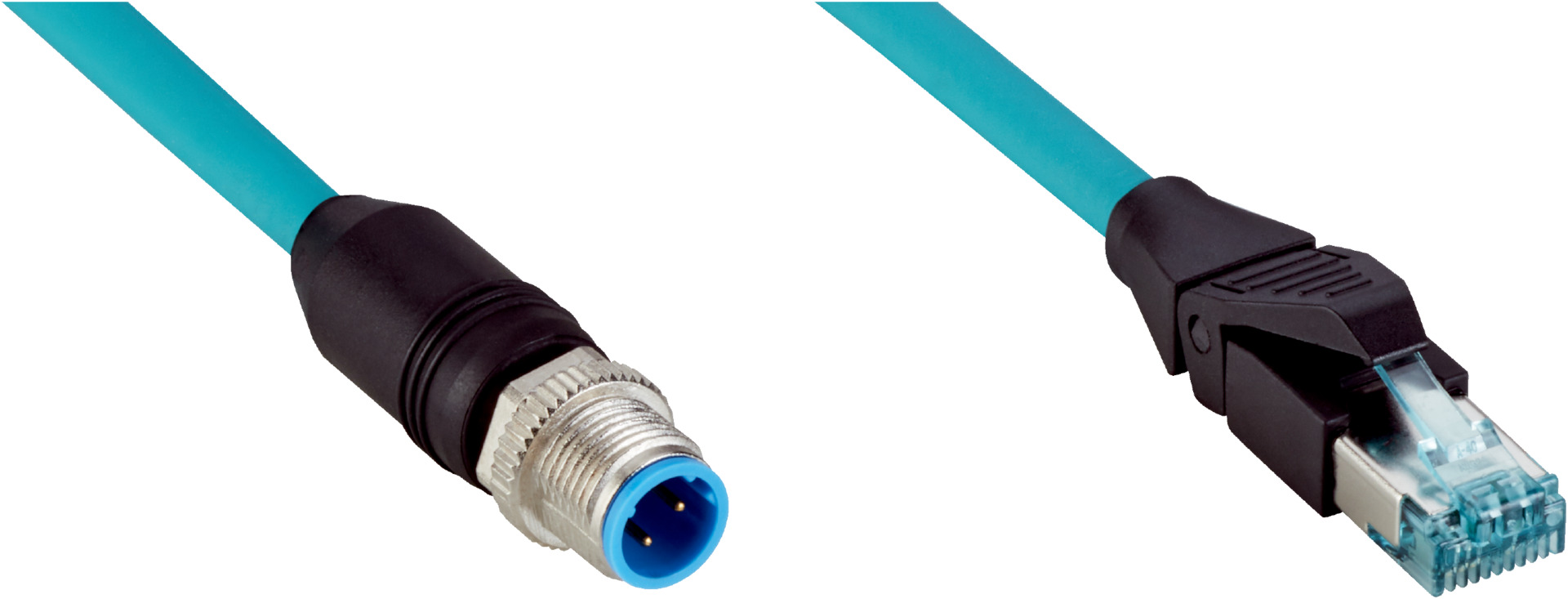

Industrial Ethernet Cable M12 to RJ45 | Shielded | 3m Length | IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust and reliable connections in industrial automation. With a shielded design and IP67 rating for the M12 connector, it ensures optimal performance in harsh environments. Ideal for drag chain operations and EtherNet/IP™ communication, this cable features a durable TPU connector and supports data transmission rates up to 0.1 Gbit/s, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 3 m, 4-wire, TPE
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Dimensions (H x L x W): 6.6mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 3 m length, 4-wire TPE cable with turquoise jacket
- Shielded cable with CAT5e transmission characteristics
- High bending radius for flexible use and drag chain operation
- IP67 rated enclosure for M12 connector and IP20 for RJ45
- Supports data transmission rate up to 0.1 Gbit/s
- Torsion force 270° per meter with 3,000,000 torsion cycles
- Operating temperature range -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-030EF4MRJA4 Ethernet Cable is available for immediate purchase, ideal for industrial automation and communication applications requiring robust and reliable Ethernet connections.
