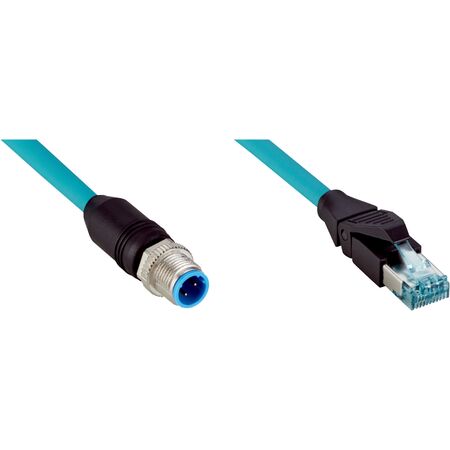

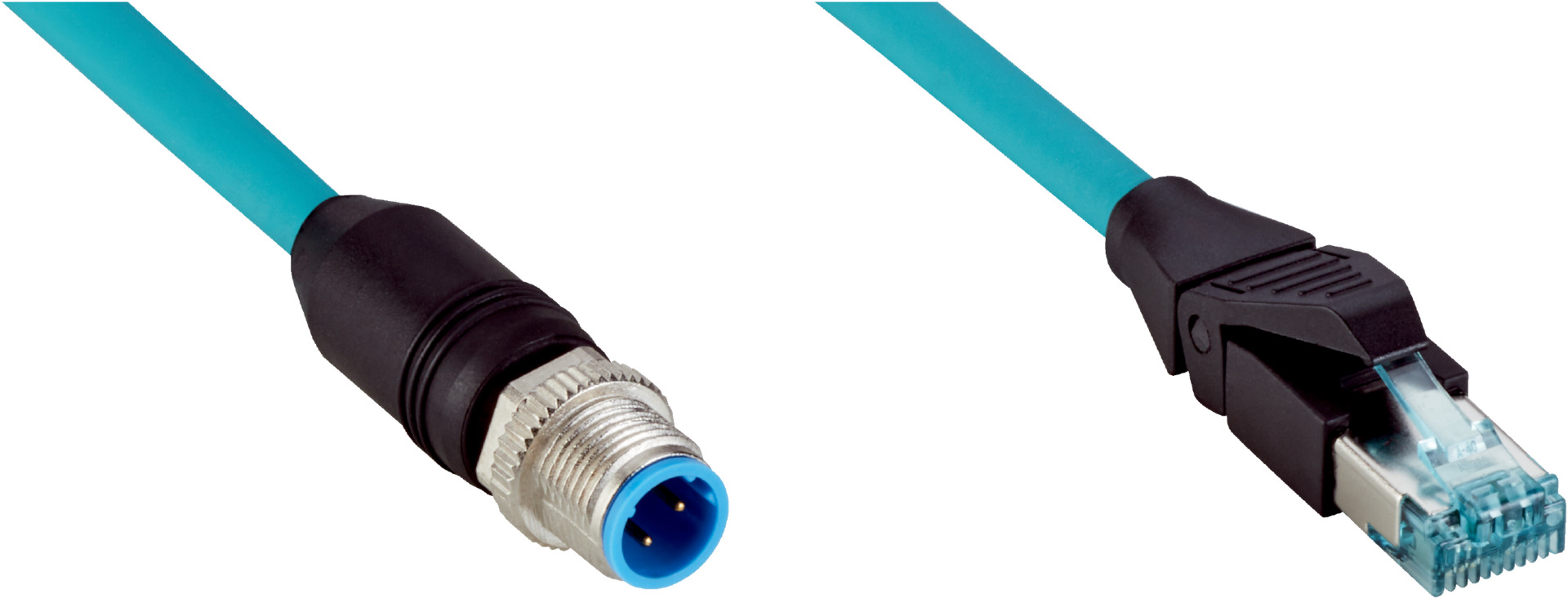

Industrial Ethernet Cable M12 to RJ45 | Shielded | 4m Length | IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust connectivity in industrial automation and robotic applications. Featuring a shielded design, this 4m cable supports Ethernet and EtherNet/IP™ with CAT5e transmission characteristics, ensuring reliable data transfer. With an IP67 rating for the M12 connector, it withstands harsh environments, making it ideal for zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 4 m, 4-wire, TPE
- Cable diameter: 6.6 mm
- Conductor cross section: 0.227 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Dimensions (H x L x W): 10mm x 4000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on head A
- Male connector, RJ45, 4-pin, straight on head B
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 4 m long, 4-wire TPE cable with turquoise jacket
- Shielded cable with 0.227 mm² conductor cross section
- High bending radius for flexible use and drag chain operation
- Nominal voltage of 600 V AC and test voltage of 1,500 V AC
- Supports Ethernet, EtherNet/IP™ with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- IP67 rated enclosure for M12 connector and IP20 for RJ45
- Operating temperature range from -40 °C to +85 °C
- High durability with up to 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Shielded cable reduces electromagnetic interference, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-040EF4MRJA4 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable Ethernet connectivity.
