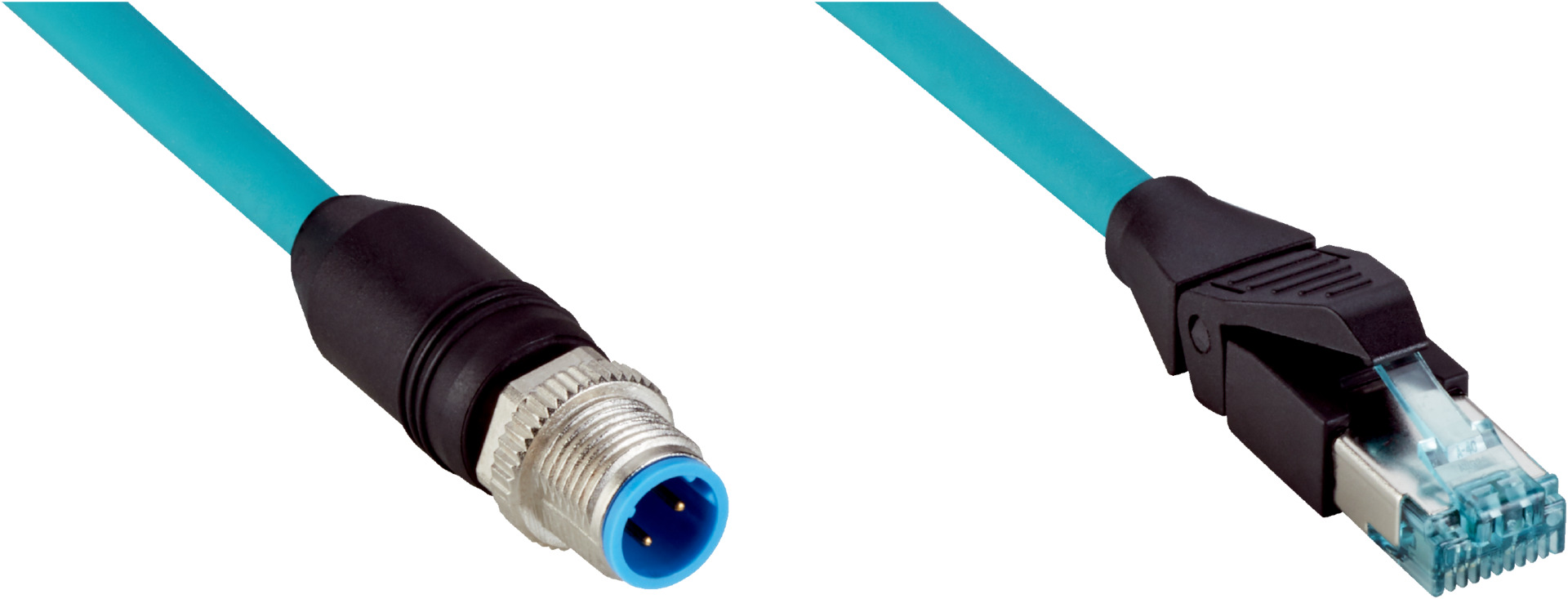

Industrial Ethernet Cable M12 to RJ45 | Shielded | 600V AC Rated | IP67 Enclosure | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust data transmission in industrial environments. With a shielded design and rated for 600V AC, it ensures reliable connectivity in drag chain operations and robot zones. Built for durability, this cable withstands extreme temperatures and high bending cycles, making it ideal for automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 2 m, 4-wire, TPE jacket
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 6.6mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- Shielded cable with TPE jacket in turquoise color
- High bending radius for flexible use and drag chain operation
- Rated for 600 V AC nominal voltage and 1.5 A current loading
- Supports data transmission rate up to 0.1 Gbit/s
- IP67 rated enclosure for M12 connector and IP20 for RJ45
- Operating temperature range from -40 °C to +85 °C
- High durability with 1,000,000 bending cycles and 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

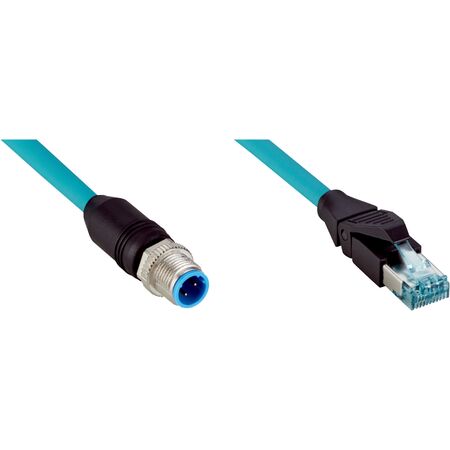

The SICK YM2D24-020EF4MRJA4 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable Ethernet connectivity.
