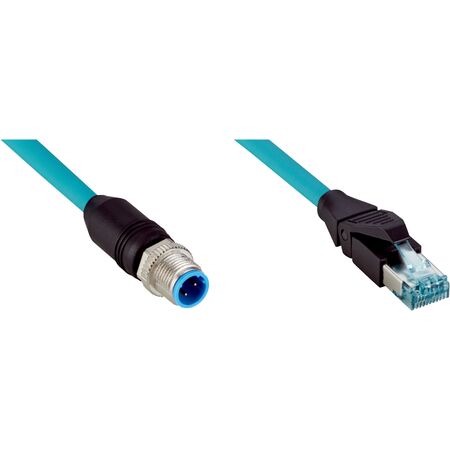

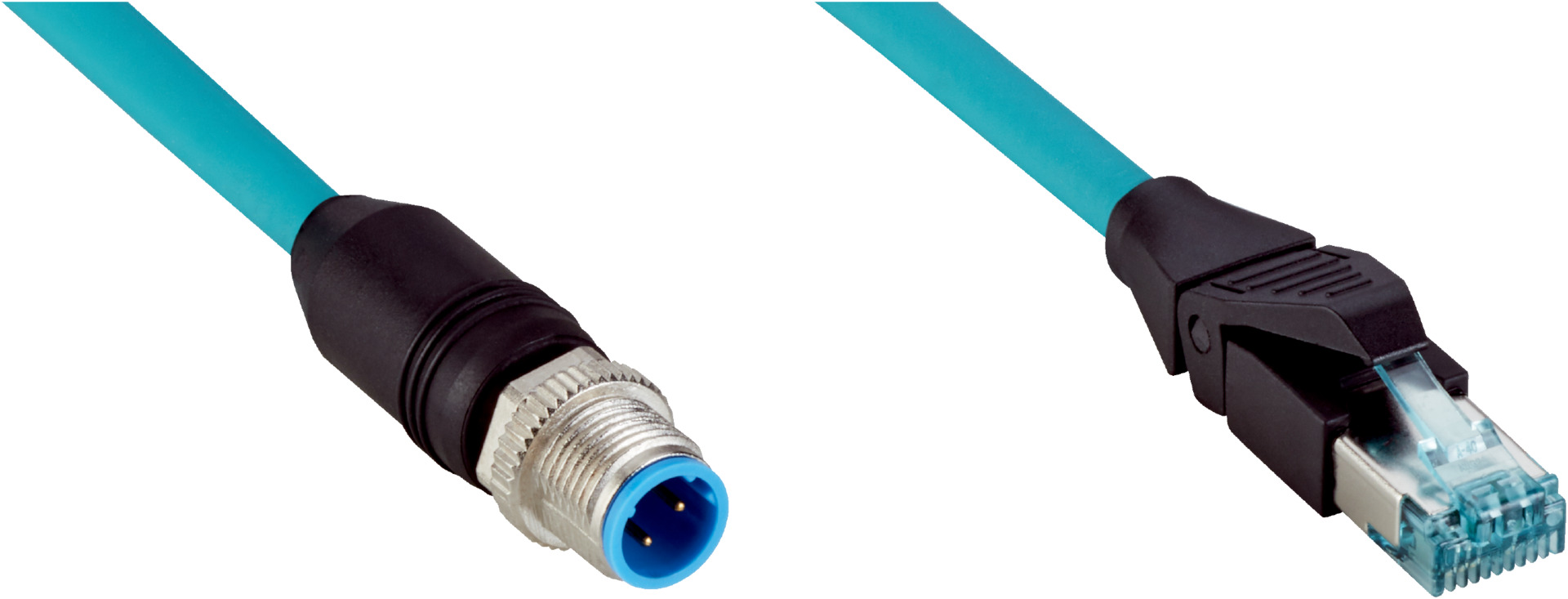

Industrial Ethernet Cable M12 to RJ45 | Shielded CAT5e | 15m Length | IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust data transmission in industrial environments. With a shielded CAT5e construction and a length of 15 meters, it ensures reliable connectivity for drag chain operations and robotic applications. Built to withstand extreme temperatures from -40 °C to +85 °C, this cable features high torsion resistance and is ideal for use in areas exposed to oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 15 m, 4-wire, TPE
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 10mm x 15000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded and Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 15 m length, 4-wire TPE cable with turquoise jacket
- Shielded cable with CAT5e transmission characteristics
- High bending radius for flexible use and drag chain operation
- IP67 rated at M12 connector and IP20 at RJ45 connector
- Supports data transmission rate up to 0.1 Gbit/s
- High torsion resistance with 3,000,000 torsion cycles
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-150EF4MRJA4 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable Ethernet connectivity.
