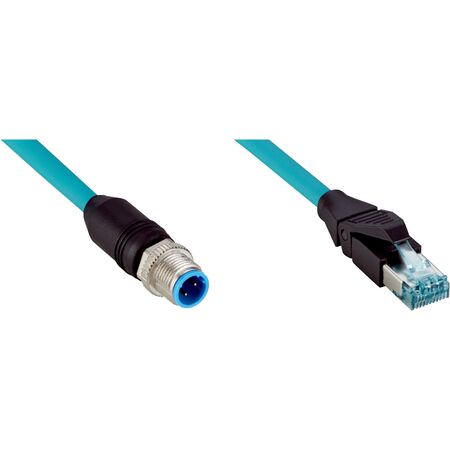

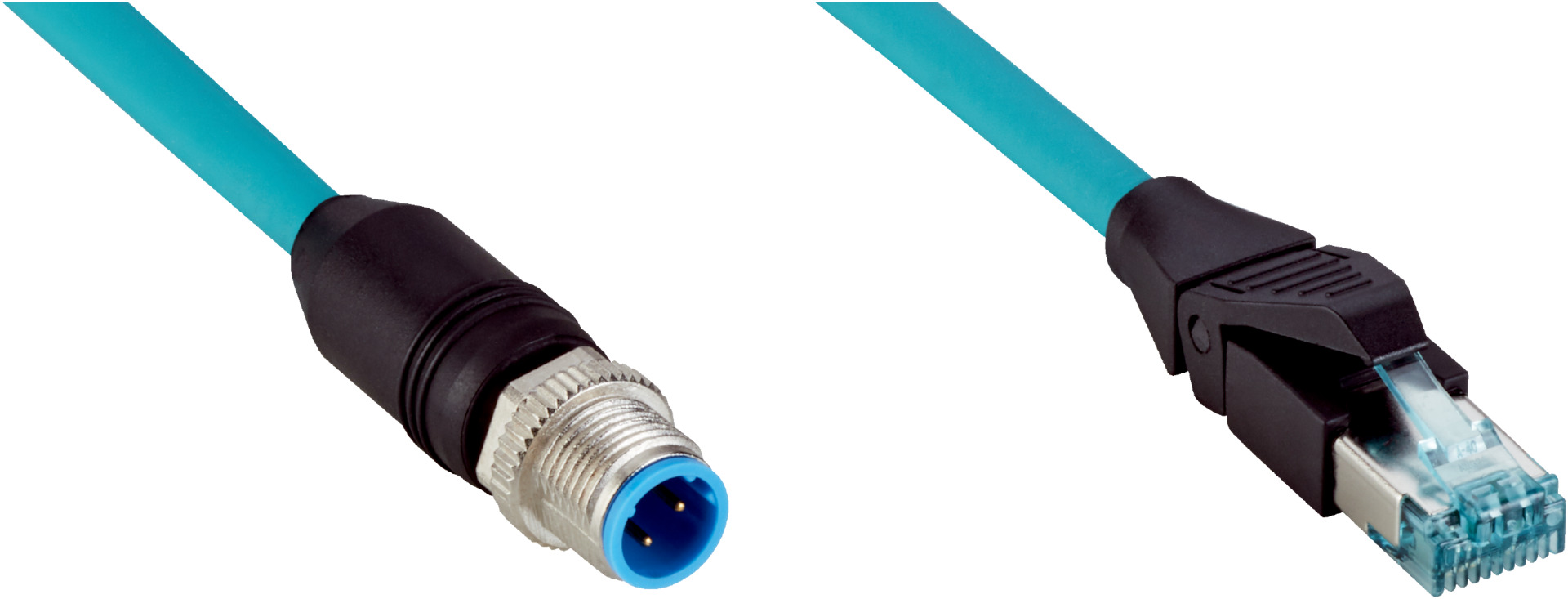

Industrial Ethernet Cable M12 to RJ45 | Shielded CAT5e | IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for reliable data transmission in industrial environments. Featuring a shielded CAT5e design, this cable ensures minimal electromagnetic interference, making it ideal for drag chain operations and robot zones exposed to oils and lubricants. With an operating temperature range of -40°C to +85°C and an IP67 rating at the M12 connector, it’s built for durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m, 4-wire, TPE jacket
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded CAT5e cable for reliable data transmission
- High bending radius for flexible use and drag chain operation
- Operating temperature range: -40°C to +85°C
- IP67 rated at M12 connector for dust and water protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D24-050EF4MRJA4 Ethernet Cable is available for immediate purchase, ideal for industrial automation and data communication applications.
