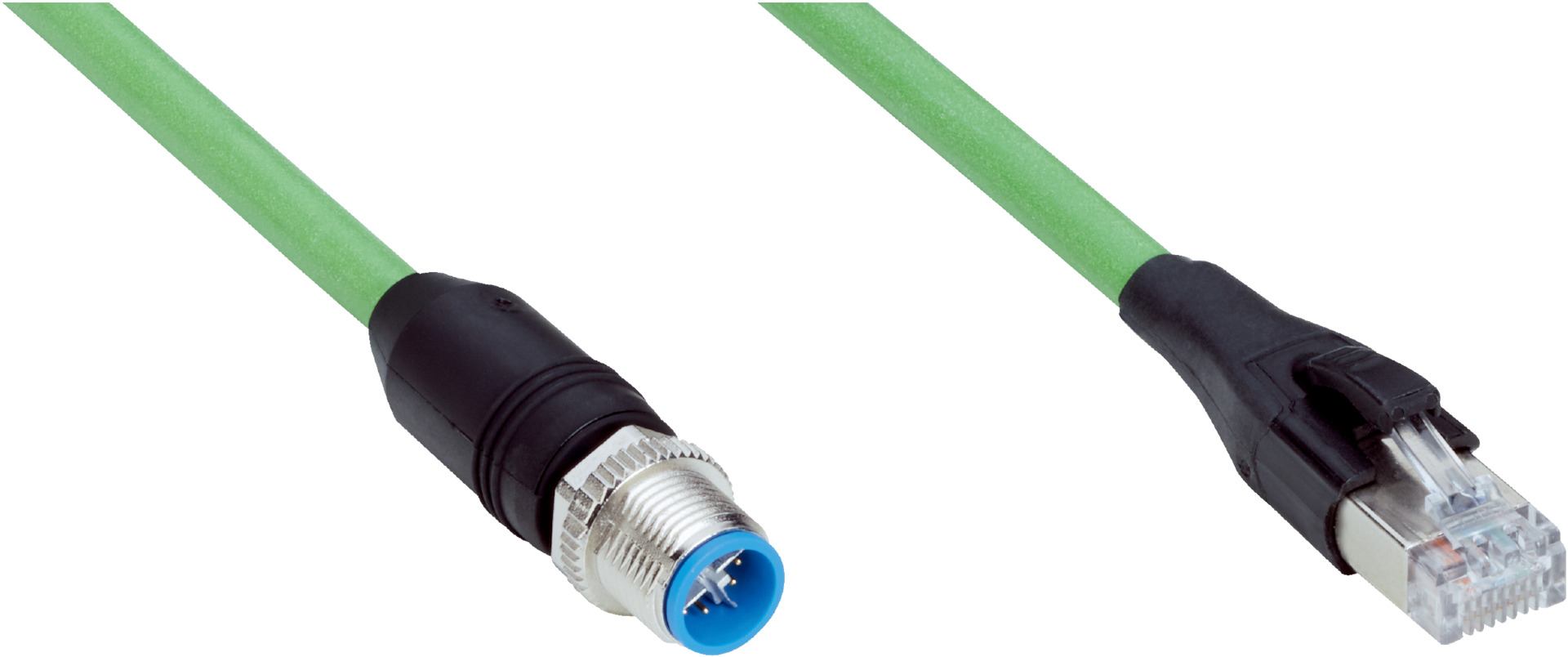

Industrial Ethernet Cable M12 to RJ45 | Shielded CAT6A | 10 Gbit/s Data Rate | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust networking in harsh environments, featuring a shielded CAT6A construction that supports data transmission rates up to 10 Gbit/s. With an IP65/IP67 rating for the M12 connector, this cable is perfect for applications in zones with oils and lubricants, ensuring reliable connectivity and durability in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage cable: 125 V AC
- Test voltage cable: 1000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable is 1 m long, 8-wire, PUR, halogen-free
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Enclosure rating IP65/IP67 for M12 connector, IP20 for RJ45 connector
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission in harsh environments requiring IP65/IP67 protection
- Gigabit Ethernet networking in automation and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable and flame retardant materials enhance product lifespan and safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

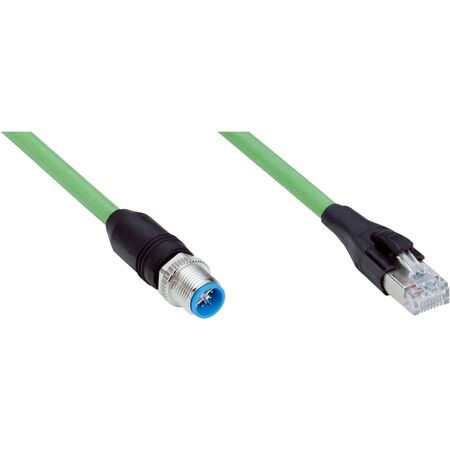

The SICK YM2X18-010EG1MRJA8 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet networking in harsh environments.
