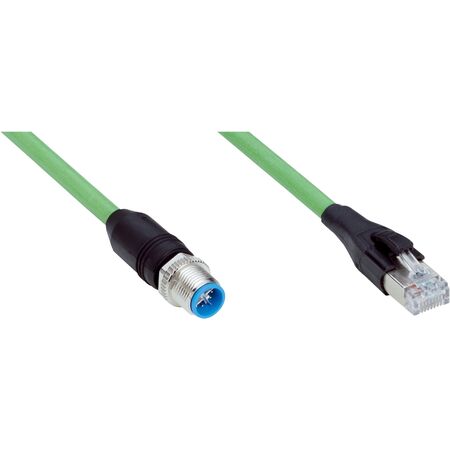

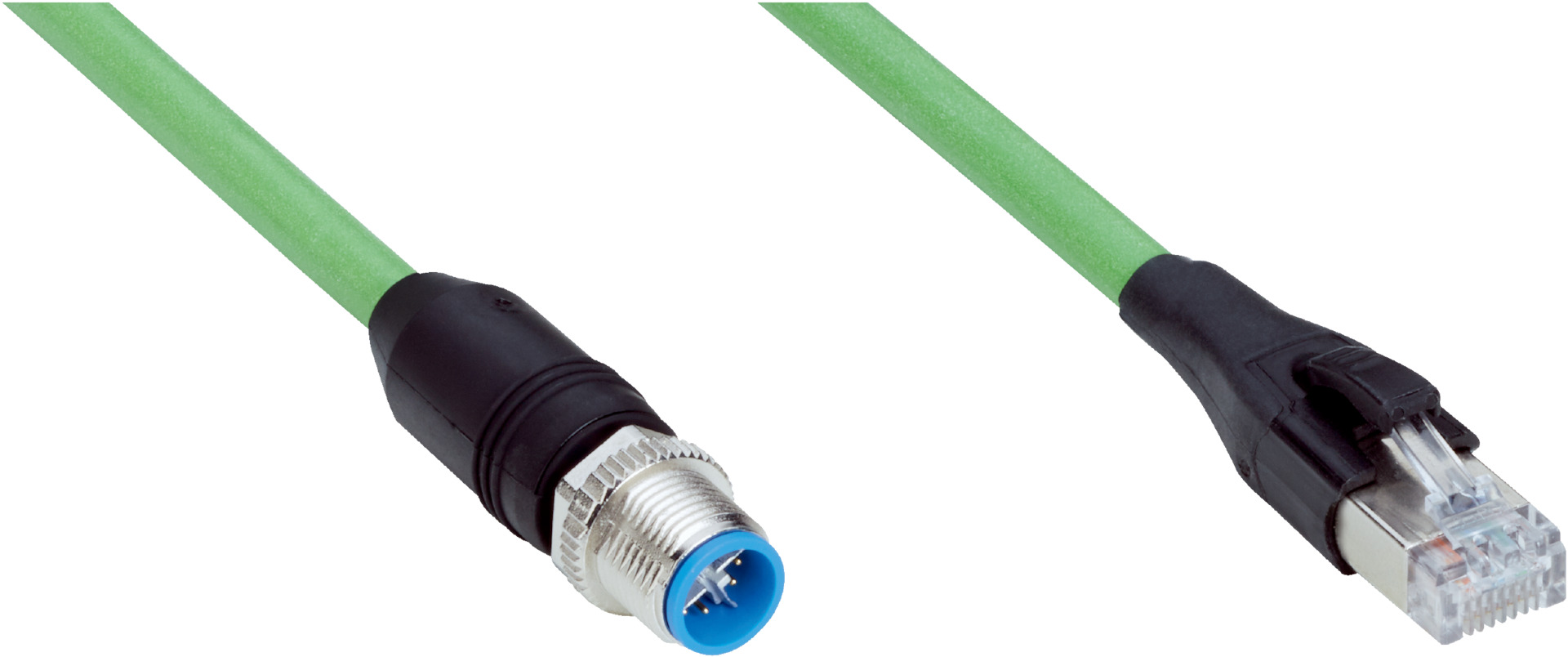

Industrial Ethernet Cable M12 to RJ45 | Shielded CAT6A | 10 Gbit/s Data Rate | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust data transmission in industrial environments, featuring a shielded CAT6A construction that supports data rates up to 10 Gbit/s. With an operating temperature range of -40 °C to +85 °C and an IP65/IP67 enclosure rating, this cable is perfect for applications in zones with oils and lubricants, ensuring reliable connectivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 3 m, 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage, cable: 125 V AC
- Test voltage, cable: 1,000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature head: -25 °C to +85 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable length 3 m, 8-wire, PUR, halogen-free
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Operating temperature range -40 °C to +85 °C
- Enclosure rating IP65/IP67 (M12), IP20 (RJ45)
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission for Gigabit Ethernet networks
- Environments requiring robust, shielded cable with high protection ratings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM2X18-030EG1MRJA8 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and reliable data transmission.
