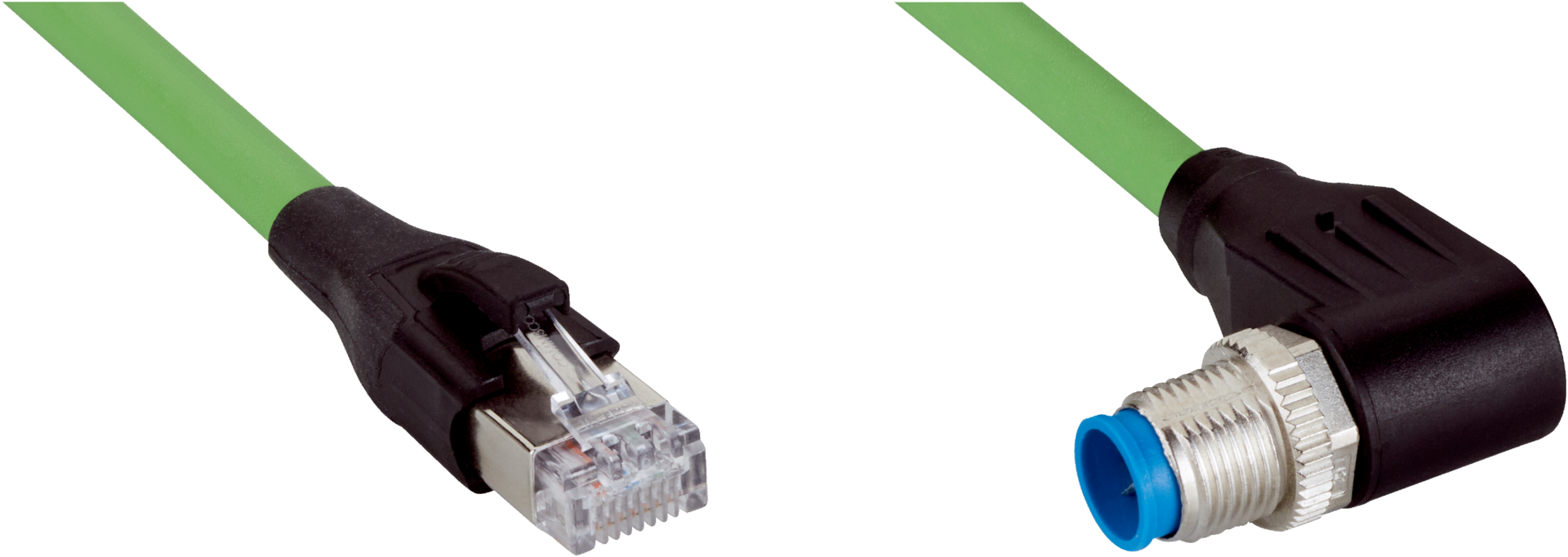

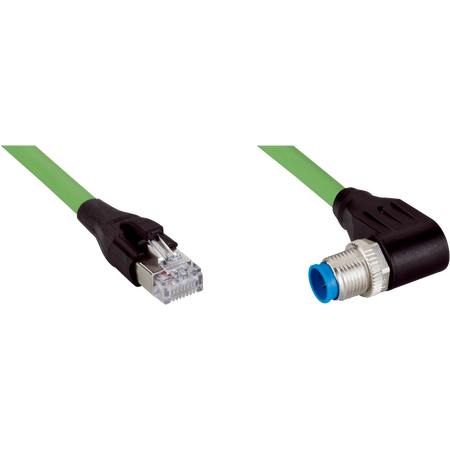

Industrial Ethernet Cable M12 to RJ45 | Shielded CAT6A | 10m Length | Green Jacket | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust networking in industrial environments. Featuring a shielded CAT6A construction, this 10m cable supports data transmission rates up to 10 Gbit/s, making it ideal for Gigabit Ethernet applications. With an IP65/IP67 enclosure rating for the M12 connector, it ensures reliable performance even in harsh conditions, perfect for industrial and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial Ethernet Cable, M12 to RJ45 Ethernet Cable, Shielded Gigabit Ethernet Cable, PUR Ethernet Cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, angled, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 10 m, 8-wire, AWG26, PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature head: -25 °C to +85 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Contamination rating: 3
- Insulation resistance: ≥ 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: ≤ 30 mΩ
- Dimensions (H x L x W): 6mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin, angled, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Cable is 10 m long, 8-wire, AWG26, PUR, halogen-free
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Enclosure rating IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature range -40 °C to +85 °C
- Contamination rating 3
- UL File No. E513908
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections
- Gigabit Ethernet data transmission
- Harsh environment networking requiring shielded cables
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YN2X18-100EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial and commercial networking applications requiring robust and reliable data transmission.
