Industrial Ethernet Cable | M12 to RJ45 | Shielded & Halogen-Free | IP67 Rated | by SICK

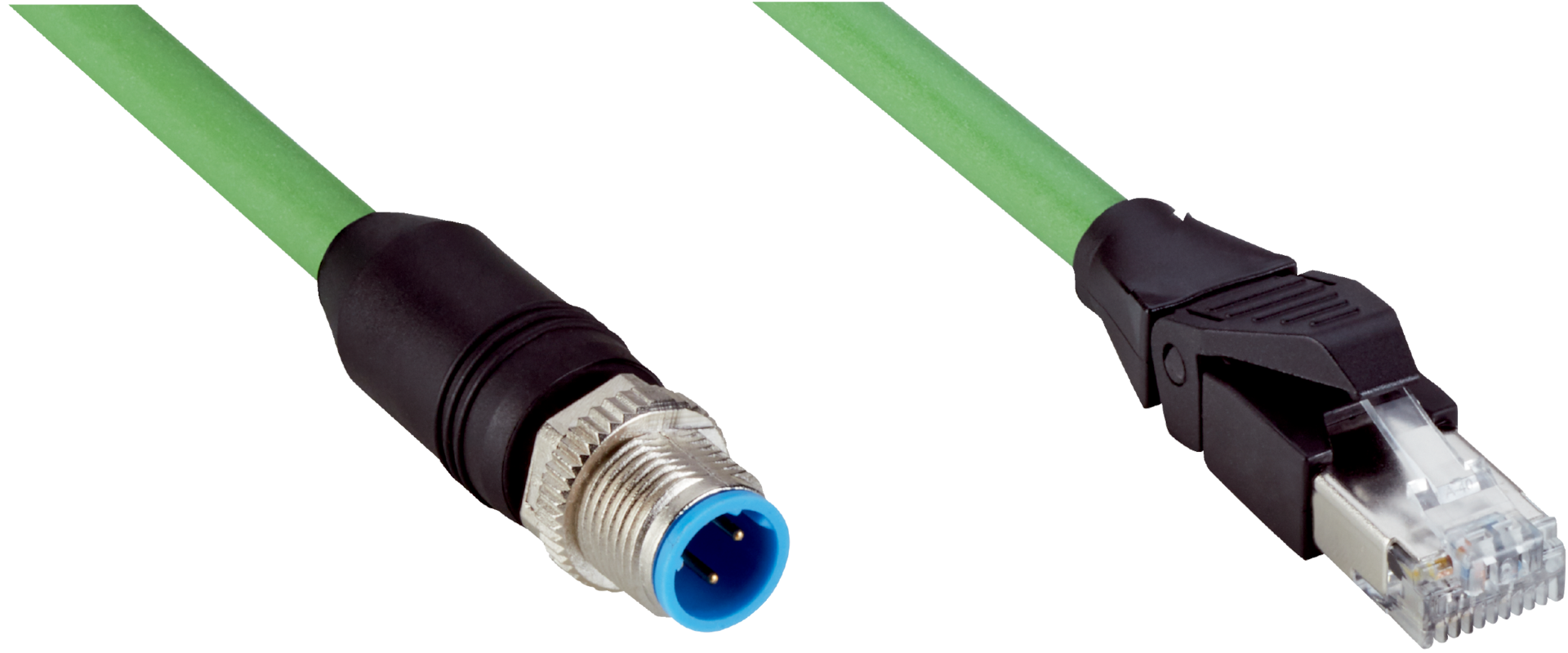

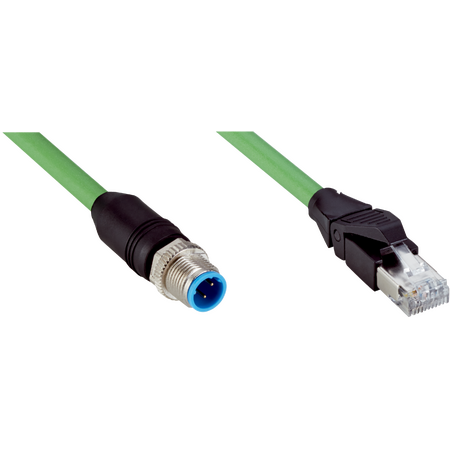

The Industrial Ethernet Cable is designed for robust PROFINET communication, featuring a male M12 4-pin D-coded connector and a male RJ45 connector. With a shielded, halogen-free PUR jacket, this cable is perfect for industrial automation and control systems, ensuring reliable performance in harsh environments. Rated for 300 V AC and capable of flexible use, it meets high standards for safety and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial Ethernet Cable, PROFINET Cable, M12 to RJ45 Ethernet Cable, Shielded Ethernet Cable, Drag Chain Ethernet Cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter
- Temperature range: Flexible use -30°C to +70°C, Stationary -40°C to +80°C, Drag chain -30°C to +70°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 4-pin D-coded connector and male RJ45 4-pin connector
- Screw-on locking for M12 and snap-in locking for RJ45 connectors
- PUR halogen-free jacket with green color
- Shielded cable with 4 wires and 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- IP67 rated at M12 connector and IP20 at RJ45 connector
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Rated for 300 V AC nominal voltage and 1.5 A current loading
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Drag chain operation in zones with oils and lubricants
- Automation and control systems requiring shielded Ethernet cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design extends product life reducing waste
- Flame retardant materials enhance safety and environmental protection
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK YM2D24-050PN1MRJA4 Ethernet cable is available for immediate purchase, ideal for industrial automation and control applications requiring robust and reliable Ethernet connectivity.
