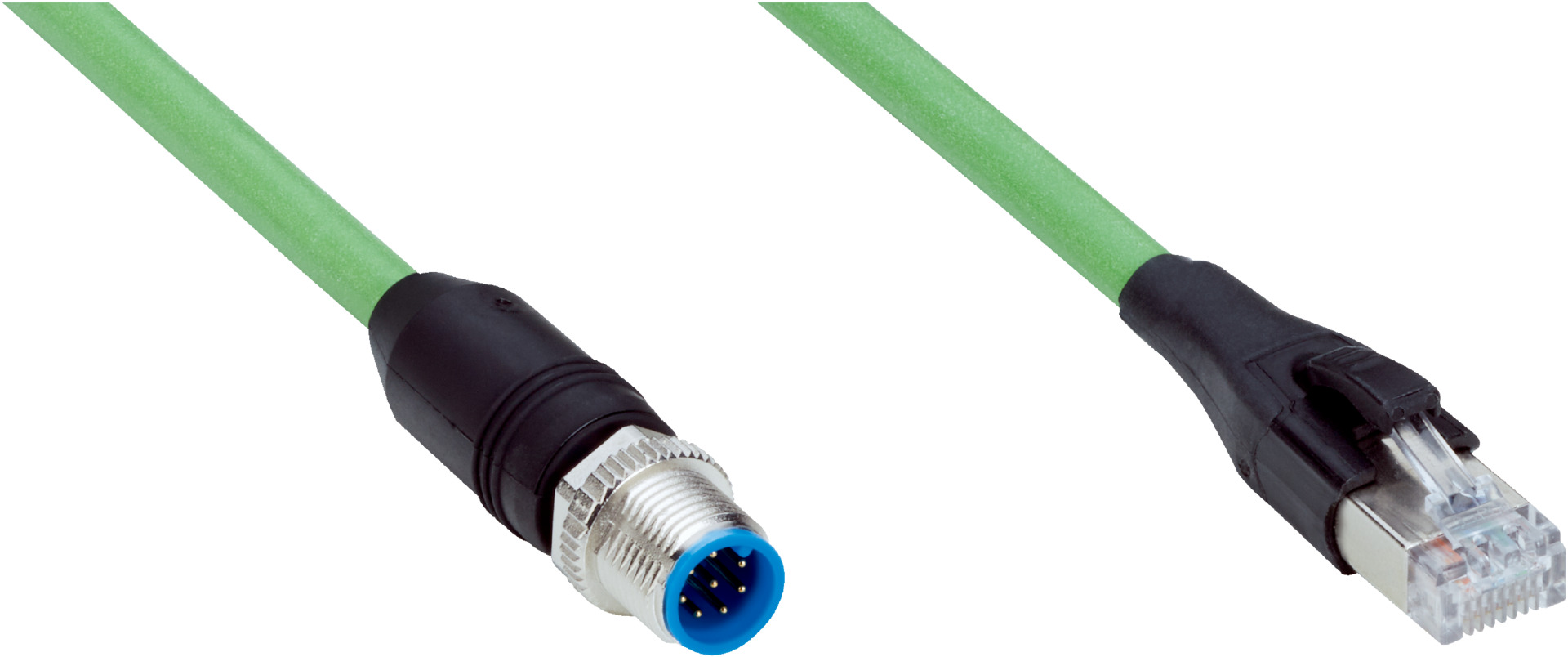

Industrial Ethernet Cable M12 to RJ45 | Shielded | IP65/IP67 Rated | 10 Gbit/s | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for robust industrial Ethernet communication, featuring a shielded construction and IP65/IP67 rating for durability in harsh environments. With a data transmission rate of up to 10 Gbit/s and a halogen-free PUR jacket, this cable is perfect for applications in zones with oils and lubricants, ensuring reliable connectivity and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 1.5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage cable: 125 V AC
- Test voltage cable: 1000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature head: -25 °C to +85 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 1500mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Male connector, RJ45, 8-pin, straight
- Shielded cable with PUR halogen-free jacket
- IP65/IP67 rated for M12 connector, IP20 for RJ45
- Supports Gigabit Ethernet with CAT6A transmission
- Data transmission rate up to 10 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet communication
- Zones with oils and lubricants
- Data transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

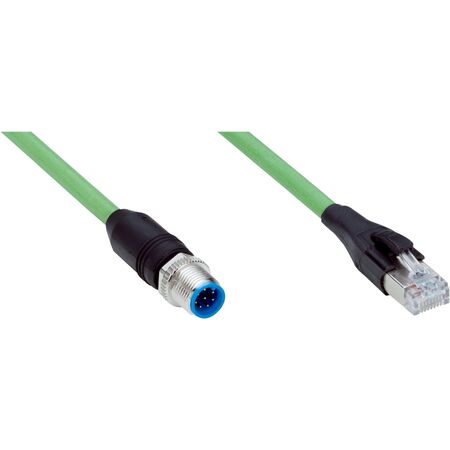

The SICK YM2A18-015EG1MRJA8 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet communication in harsh environments.
