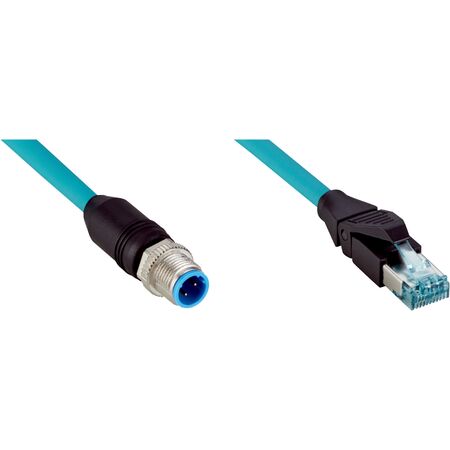

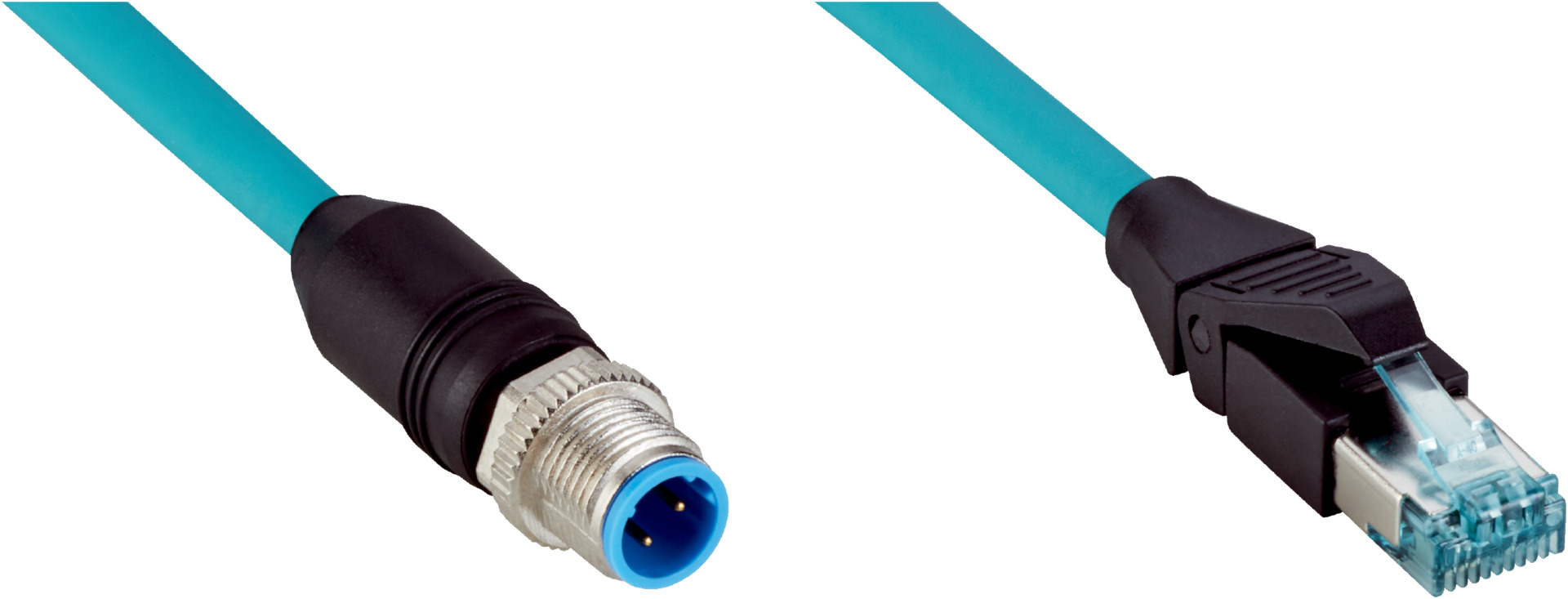

Industrial Ethernet Cable M12 to RJ45 | Shielded | IP67 Rated | by SICK
The Industrial Ethernet Cable M12 to RJ45 is designed for reliable data transmission in industrial environments. With a shielded construction and IP67 rating on the M12 connector, it’s perfect for drag chain operations and robot zones exposed to oils and lubricants. Built for durability and flexibility, this cable supports CAT5e transmission characteristics, ensuring efficient communication in automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 1 m, 4-wire, TPE jacket
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Nominal voltage: 600 V AC
- Test voltage: 1500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° per meter
- Torsion cycles: 3,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 6.6mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded cable with TPU connector material
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range: -40°C to +85°C
- IP67 rated enclosure on M12 connector, IP20 on RJ45 connector
- Supports CAT5e transmission characteristics with data rate up to 0.1 Gbit/s
- High torsion resistance with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK YM2D24-010EF4MRJA4 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotics applications.
