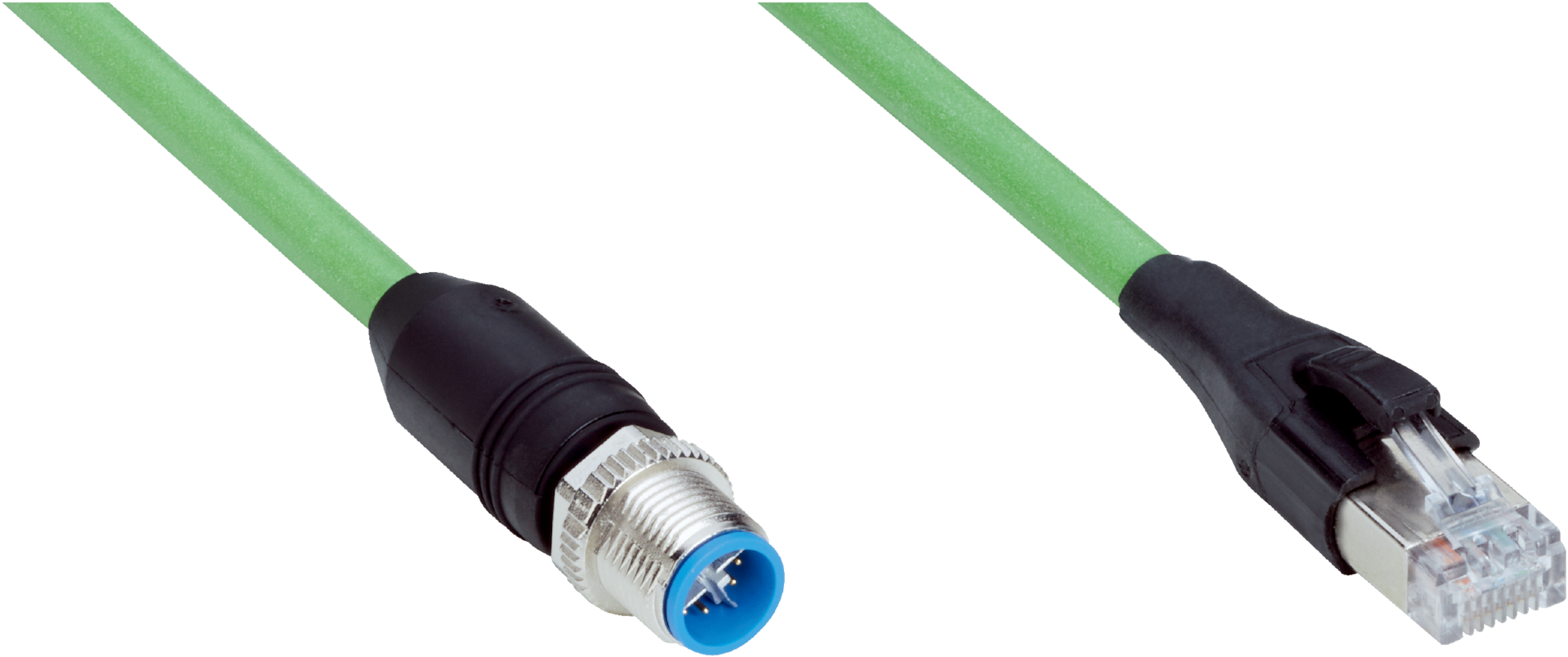

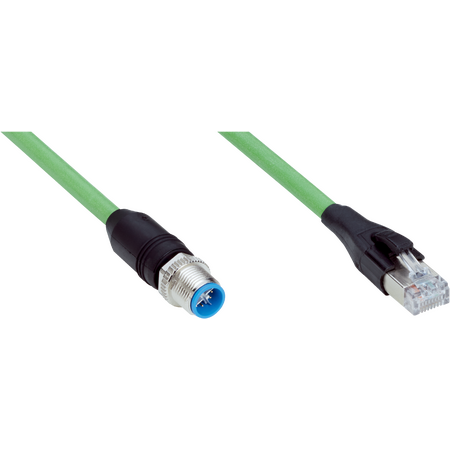

Industrial Ethernet Cable M12 to RJ45 | Shielded | PUR Jacket | IP65/IP67 Rated | by SICK

BRAND: SICK
SKU: 2106260
$392.70 List price: $493.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
The Industrial Ethernet Cable M12 to RJ45 is designed for robust data transmission in harsh environments, featuring a shielded construction and a halogen-free PUR jacket. With a data rate of up to 10 Gbit/s and an operating temperature range of -40 °C to +80 °C, this cable is perfect for industrial applications where reliability is crucial.

Alternatively Known As: Industrial Ethernet Cable M12 to RJ45, Gigabit Ethernet Cable PUR Jacket, Shielded Ethernet Cable

Technical Specifications
  • Connection type head A: Male connector, M12, 8-pin, straight, X-coded
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Locking plug connector: Screw-on (M12), snap-in locking (RJ45)
  • Connector material: TPU
  • Locking nut material: Zinc die-cast, nickel-plated
  • Tightening torque: 0.6 Nm
  • Cable length: 10 m
  • Cable type: 8-wire, PUR, halogen-free
  • Cable diameter: 6.4 mm
  • Conductor cross section: 0.14 mm²
  • Shielding: Shielded
  • Bending radius flexible use: > 10 x cable diameter
  • Nominal voltage: 125 V AC
  • Test voltage: 1000 V AC
  • Rated impulse voltage: 1 kV
  • Current loading: 0.5 A
  • Signal type: Ethernet, Gigabit Ethernet
  • Transmission characteristics: CAT6A
  • Data transmission rate: ≤ 10 Gbit/s
  • Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
  • Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
  • Contamination rating: 3
  • Insulation resistance: > 100 mΩ
  • Overvoltage category: III
  • Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
  • Dimensions (H x L x W): 6mm x 10000mm x 13mm
  • Weight: 0.2 kg
Key Features
  • Male M12 8-pin X-coded connector and male RJ45 8-pin connector
  • Screw-on locking for M12 and snap-in locking for RJ45 connectors
  • Cable jacket made of halogen-free PUR material, green color
  • Shielded cable with 8 wires and 0.14 mm² conductor cross section
  • Supports CAT6A transmission characteristics with data rates up to 10 Gbit/s
  • Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
  • Enclosure rating IP65/IP67 for M12 connector and IP20 for RJ45 connector
  • Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial Ethernet connections in zones with oils and lubricants
  • Data transmission for Gigabit Ethernet networks
  • Use in harsh environments requiring IP65/IP67 protection
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Halogen-free PUR jacket reduces harmful emissions in case of fire
  • Durable materials extend product life and reduce waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for details.

Available Now

The SICK YM2X18-100EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet applications in harsh environments.
