Industrial Ethernet Cable M12 | Shielded CAT5e | IP65/IP66K/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 is designed for reliable data transmission in industrial environments, featuring shielded CAT5e construction and robust TPU connectors. With IP65/IP66K/IP67 ratings, it’s perfect for drag chain operations and robot zones exposed to oils and lubricants, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

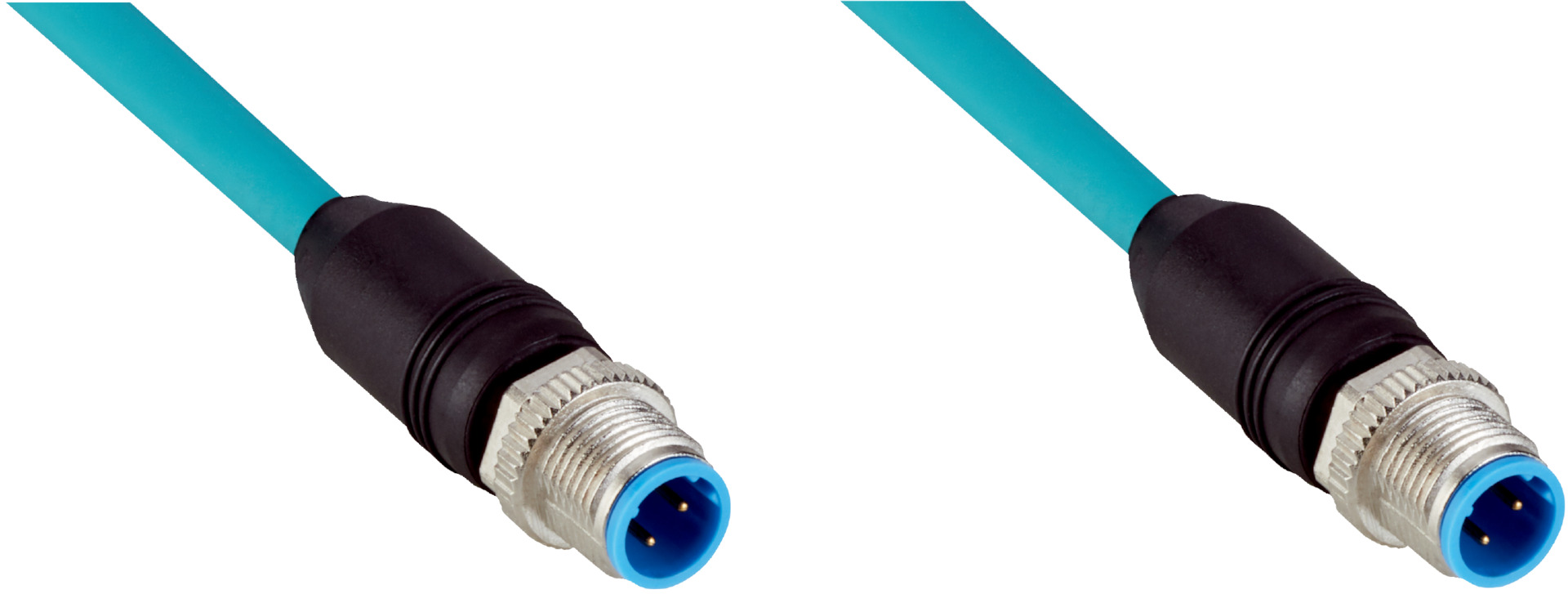

- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 15 m
- Cable type: 4-wire, TPE jacket, turquoise color
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage cable: 600 V AC
- Test voltage cable: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Shielded CAT5e cable for reliable Ethernet data transmission
- High bending radius for flexible use and drag chain operation
- Robust TPU connector material and zinc die-cast nickel-plated locking nut
- IP65 / IP66K / IP67 rated for protection against dust and water
- Supports data transmission rates up to 0.1 Gbit/s
- High torsion resistance with 3,000,000 torsion cycles
- Operating temperature range from -40°C to +85°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D24-150EF4M2D24 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring robust and flexible Ethernet connectivity.
