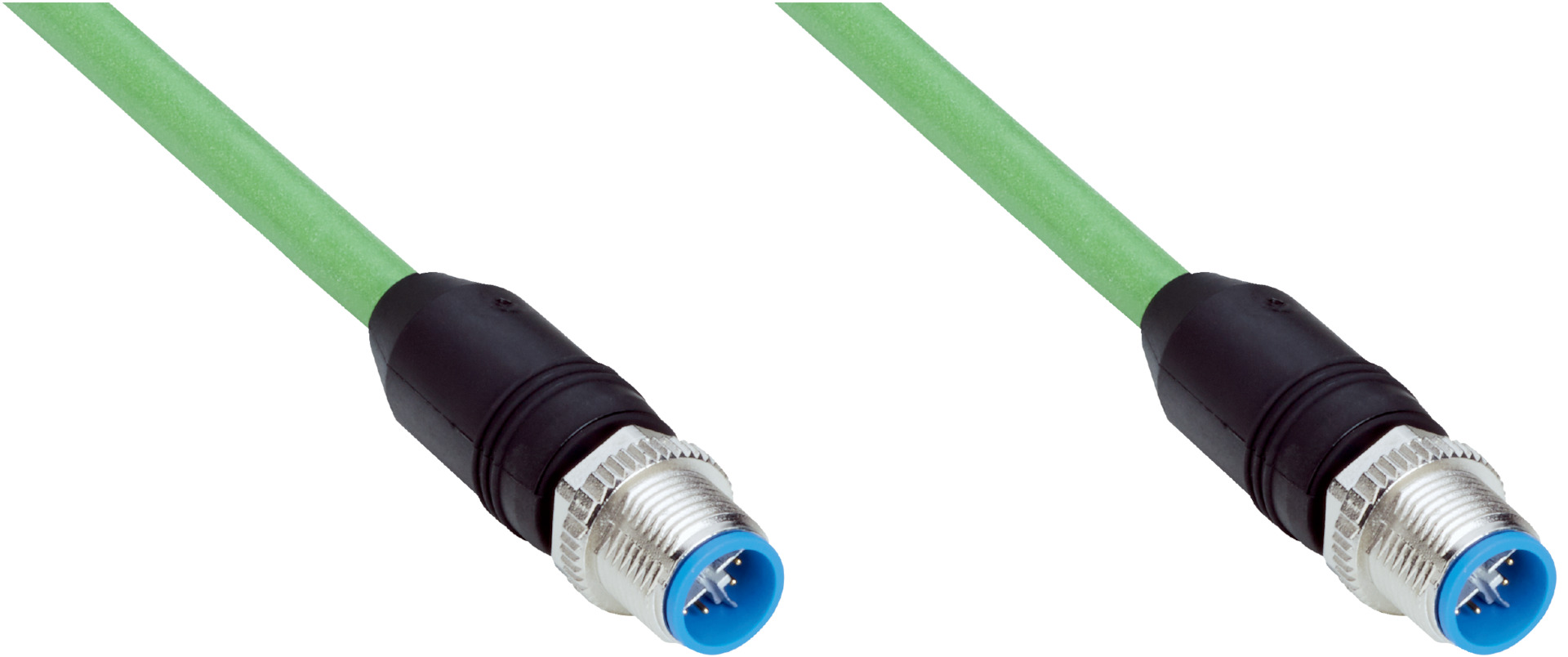

Industrial Ethernet Cable M12 | Shielded CAT6A | 10 Gbit/s Data Rate | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 is designed for robust data transmission in harsh environments, featuring shielded CAT6A construction that supports data rates up to 10 Gbit/s. With male M12, 8-pin connectors on both ends and an IP65/IP67 rating, this cable is perfect for industrial Ethernet communication, ensuring reliable performance even in zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, M12, 8-pin, straight, X-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP65 / IP67
- Operating temperature head: -25 °C to +85 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 8-pin, straight, X-coded connectors on both ends
- Shielded CAT6A cable supporting up to 10 Gbit/s data transmission
- Cable jacket made of halogen-free PUR material
- IP65 / IP67 rated for protection against dust and water
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- Operating temperature range: -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet communication
- Zones with oils and lubricants
- Data transmission in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

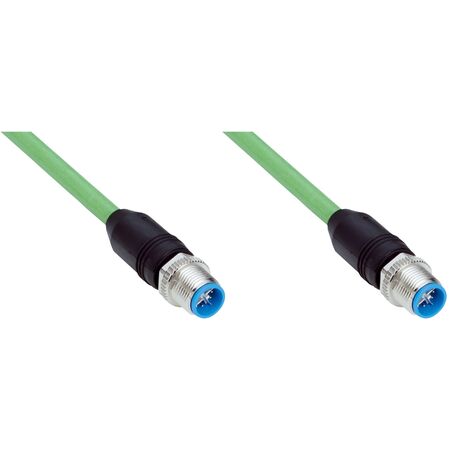

The SICK YM2X18-050EG1M2X18 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet communication in harsh environments.
