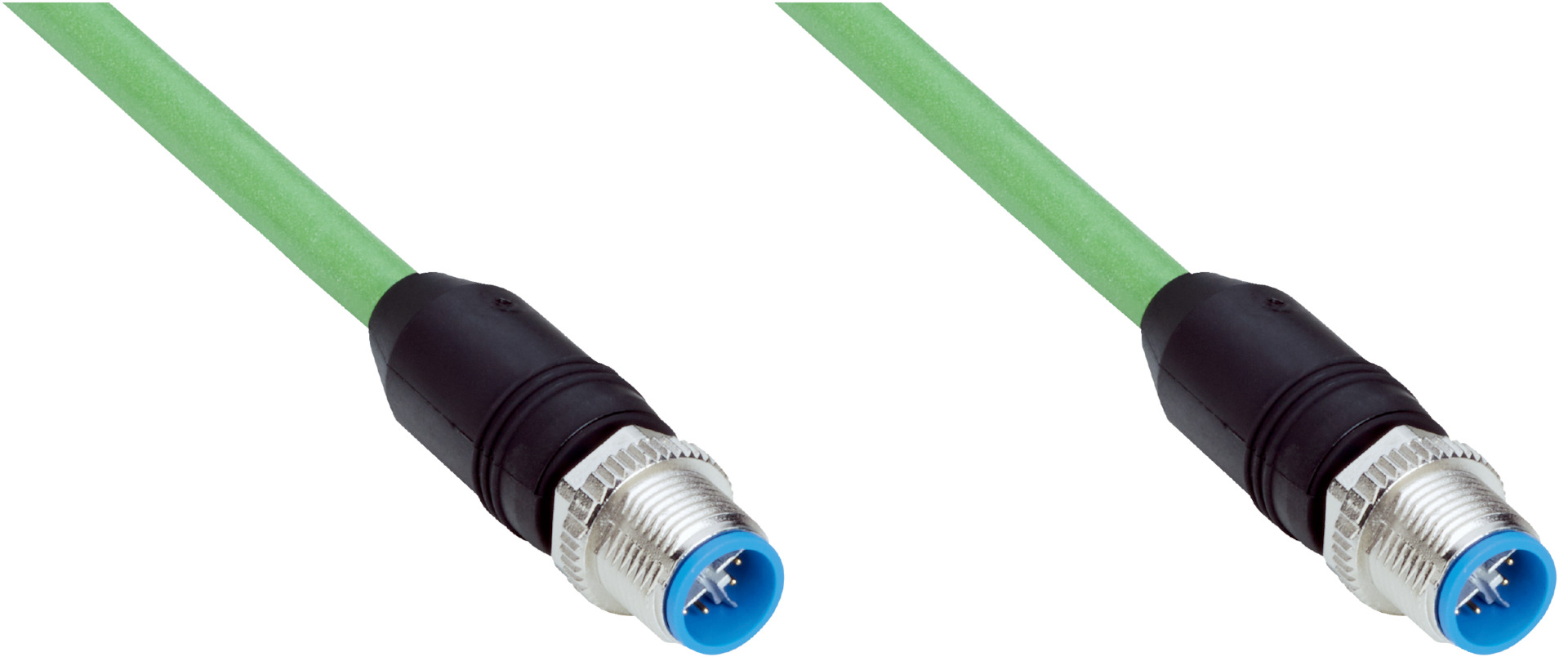

Industrial Ethernet Cable M12 | Shielded CAT6A | 10 Gbit/s Data Rate | IP65/IP67 Rated | by SICK
The Industrial Ethernet Cable M12 is designed for robust connections in harsh environments, featuring shielded CAT6A construction that supports data transmission rates up to 10 Gbit/s. With male M12, 8-pin connectors and an IP65/IP67 enclosure rating, this cable is perfect for industrial applications in zones with oils and lubricants, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, M12, 8-pin, straight, X-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Reference voltage: ≤ 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP65 / IP67
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 6mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 8-pin, straight, X-coded connectors on both ends
- Screw connection locking plug for secure attachment
- Shielded CAT6A cable supporting up to 10 Gbit/s data transmission
- Cable jacket made of halogen-free PUR material
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Enclosure rating IP65 / IP67 for dust and water protection
- Contamination rating 3 suitable for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission in harsh environments requiring IP65/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty terms as per SICK standard product warranty policies.
Available Now

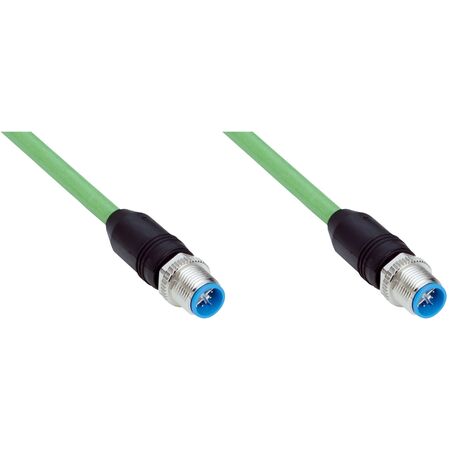

The SICK YM2X18-030EG1M2X18 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and reliable connections.
