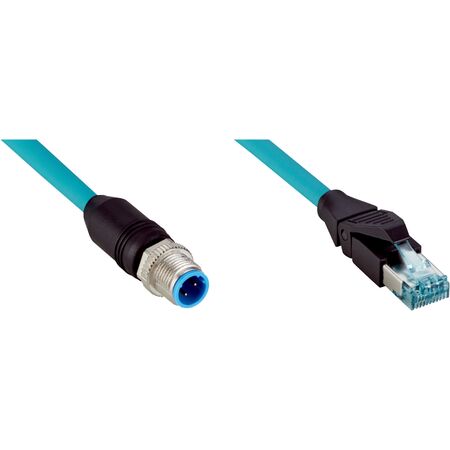

Industrial Ethernet Cable M12 to RJ45 Cat5e 5m IP67 SICK
Designed for drag chain operation and industrial Ethernet/EtherNet/IP data transmission, this SICK cable runs a male M12, 4-pin, straight, D-coded connector to a male RJ45, 4-pin, straight connector. The 5m shielded CAT5e cable has a TPE jacket, rated IP67 at the M12 end and IP20 at the RJ45 end, and supports up to 3,000,000 torsion cycles. It's built to AS/NZS 3000 wiring rules and operates from -40°C to +85°C. Full technical specifications and installation notes are listed below.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m, 4-wire, TPE jacket
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 10 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded
- Male connector RJ45, 4-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- Shielded CAT5e cable for reliable data transmission
- High bending radius for flexible use and drag chain operation
- Operating temperature range: -40°C to +85°C
- IP67 rated at M12 connector for dust and water protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
- Industrial Ethernet and EtherNet/IP™ data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2D24-050EF4MRJA4 Ethernet Cable is available for immediate purchase, ideal for industrial automation and data communication applications.
FAQ
Q: What connectors does this cable use?
A: It has a male M12, 4-pin, straight, D-coded connector on one end and a male RJ45, 4-pin, straight connector on the other, with screw-on locking for M12 and snap-in locking for RJ45.
Q: Is this cable suitable for drag chain applications?
A: Yes, it's rated for drag chain operation with a high bending radius, and it's backed by SCHNAP's 30-day returns policy for added purchasing confidence.
