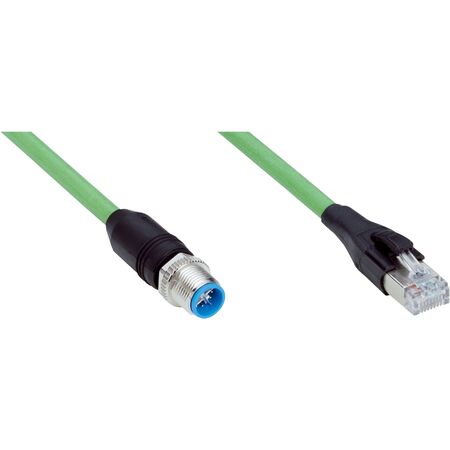

Industrial Ethernet Cable M12 X-Code Cat6A 0.5m IP65 IP67 SICK
This SICK Cat6A industrial ethernet cable pairs a screw-locking M12 8-pin X-coded connector with a snap-in RJ45 plug, rated IP65/IP67 for oily and lubricant-heavy zones. It's built with a halogen-free PUR jacket and shielded conductors supporting data rates up to 10 Gbit/s over a 0.5m length. The cable operates from -40°C to +80°C and meets AS/NZS 60950 requirements for IT and communication equipment. Spec sheet and application notes are available in the section below.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 0.5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage cable: 125 V AC
- Test voltage cable: 1000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 500mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 8-pin straight X-coded connector and male RJ45 8-pin straight connector
- Screw-on locking for M12 and snap-in locking for RJ45 connectors
- Cable jacket made of halogen-free PUR material, green color
- Shielded cable with 0.14 mm² conductor cross section
- Supports data transmission rates up to 10 Gbit/s (CAT6A)
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Enclosure rating IP65/IP67 for M12 connector, IP20 for RJ45 connector
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet cabling and connector standards to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission requiring Gigabit Ethernet speeds
- Environments requiring robust, shielded cable with IP65/IP67 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Durable PUR material extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YM2X18-C50EG1MRJA8 Ethernet CAT6A Cable is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and reliable data transmission.
FAQ
Q: What's the temperature range for this SICK M12 to RJ45 cable?
A: The cable body is rated from -40°C to +80°C in a stationary position, with the head rated from -25°C to +85°C.
Q: What ingress protection rating does this cable have?
A: It's rated IP65/IP67 at the M12 connector and IP20 at the RJ45 connector, suited to industrial zones with oils and lubricants.
For runs needing a bit more reach, the M12 X-Code Cat6A 1m IP65 IP67 cable uses the same connector pairing.
Longer distribution runs are better handled by the M12 X-Code Cat6A 10m IP65 IP67 cable.
Where two M12 connectors are needed instead of RJ45, an M12 to M12 Cat6a extension cable fits that setup.
