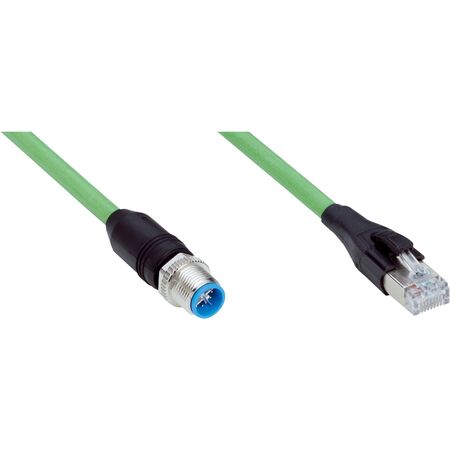

Industrial Ethernet Cable M12 X-Code Cat6A 30m IP65 IP67 SICK
This SICK Cat6A industrial ethernet cable pairs a screw-locking M12 8-pin X-coded connector with a snap-in RJ45 plug over a 30m length, suited to long-distance runs in zones with oils and lubricants. It's built with a halogen-free PUR jacket and shielded conductors supporting data rates up to 10 Gbit/s. The cable operates from -40°C to +80°C and meets AS/NZS 3000 wiring requirements. Wiring diagrams and compliance documentation are covered further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 30 m, 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage, cable: 125 V AC
- Test voltage, cable: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary position -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 30000mm x 640mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection for M12 and snap-in locking for RJ45
- Cable length 30 m, 8-wire, PUR, halogen-free
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- Operating temperature range -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Enclosure rating IP65/IP67 for M12 and IP20 for RJ45
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Industrial Ethernet communication in zones with oils and lubricants
- Data transmission in harsh environments requiring shielded cables
- Use in automation and control systems requiring Gigabit Ethernet
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2X18-300EG1MRJA8 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and reliable data transmission.
FAQ
Q: What's the longest length available in this SICK M12 to RJ45 Cat6A series?
A: This variant runs 30 meters, suited to longer industrial ethernet distribution runs.
Q: Where is this cable rated for use?
A: It's shielded and rated IP65/IP67 at the M12 connector, designed for zones with oils and lubricants and automation control systems.
For shorter runs, the M12 X-Code Cat6A 15m IP65 IP67 cable uses the same connector pairing.
For much shorter connections, the M12 X-Code Cat6A 1m IP65 IP67 cable offers a compact alternative.
Where two M12 connectors are needed instead of RJ45, an M12 to M12 Cat6a extension cable fits that setup.
