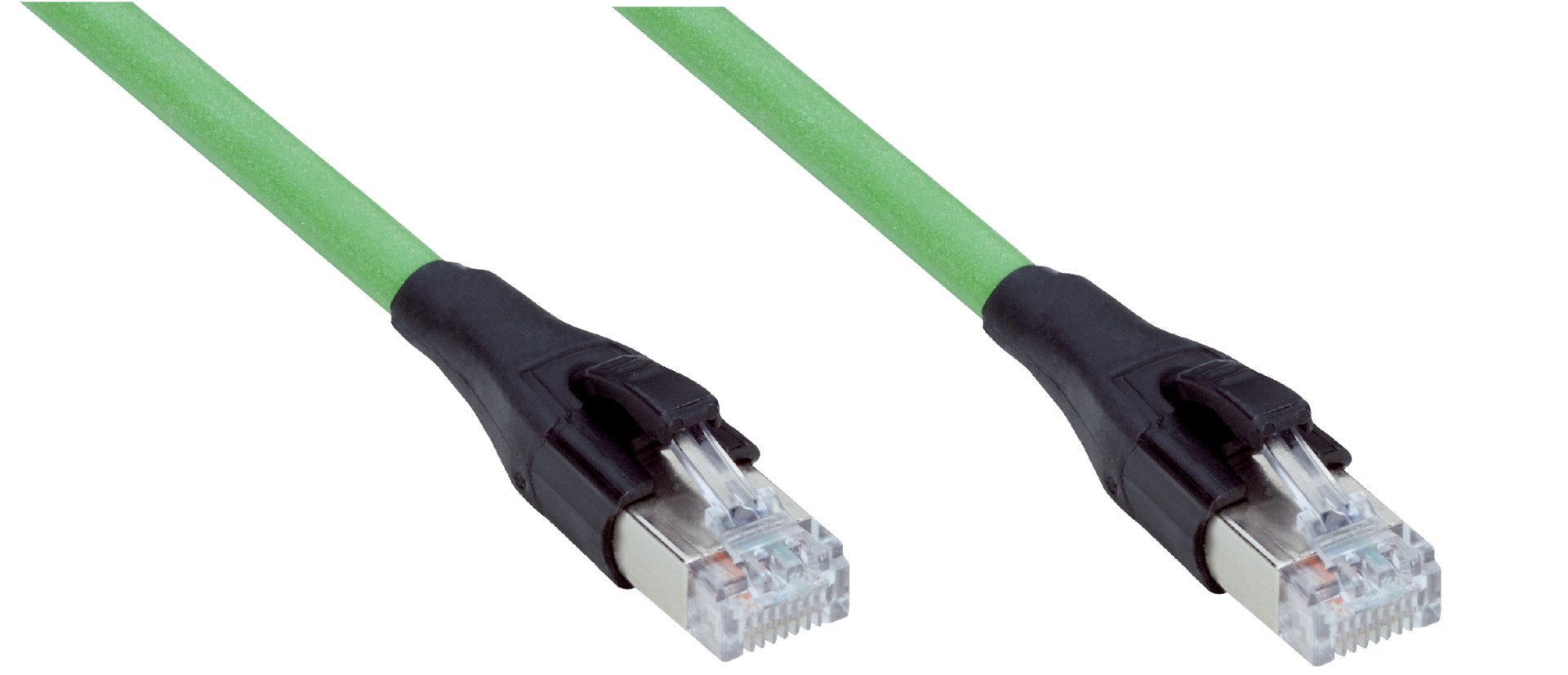

Industrial Ethernet Cable | PROFINET & Shielded | 5m Length | Green Jacket | by SICK
The Industrial Ethernet Cable is designed for reliable PROFINET communication, featuring shielded CAT5e construction and male RJ45 connectors on both ends. With a flexible and halogen-free PUR jacket, this 5m cable is perfect for industrial environments, including drag chain operations and areas exposed to oils and lubricants, ensuring safe and efficient data transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: TPU
- Connector color: Black
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: ≤ 3,000,000
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP20
- Operating temperature: Flexible use –30 °C to +70 °C, Stationary position –40 °C to +80 °C, Drag chain operation –30 °C to +70 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6.7mm x 5000mm x 6.7mm
- Weight: 0.1 kg
Key Features
- Male RJ45 4-pin straight connectors on both ends
- Push-pull male connector for secure connection
- Shielded CAT5e cable for reliable data transmission
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable and jacket materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

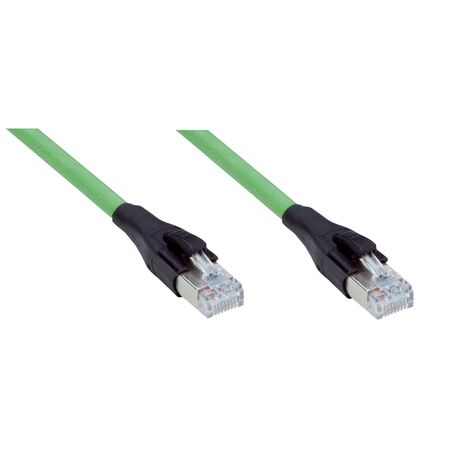

The SICK YMRJA4-050PN1MRJA4 Ethernet PROFINET cable is available for immediate purchase, ideal for industrial communication and automation applications.
