Industrial Ethernet Cable RJ45 to RJ45 Cat6A 3m SICK

BRAND: SICK
SKU: 2137365
$130.90 List price: $164.50
+ −
30 Days Return Electricians Unlock Trade Access

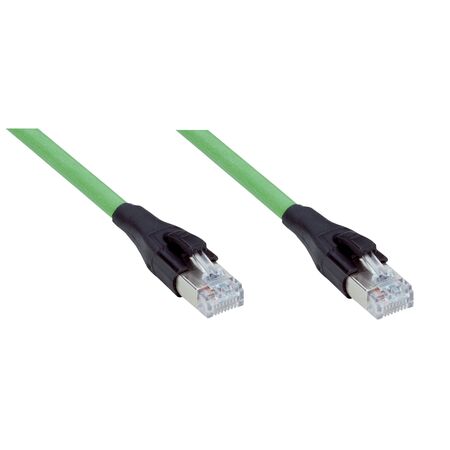

This SICK Cat6A industrial ethernet cable has male RJ45 8-pin straight connectors on both ends, running 3m for short, direct connections in automation and control systems. It's built with a halogen-free PUR jacket and shielded conductors supporting data rates up to 10 Gbit/s. The cable operates from -40°C to +80°C and complies with AS/NZS 60950. Check the product details and compatible accessories below before ordering.
Technical Specifications
  • Connection type head A: Male connector, RJ45, 8-pin, straight
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Connector material: TPU
  • Cable length: 3 m
  • Cable type: 8-wire, PUR, halogen-free
  • Cable diameter: 6.4 mm
  • Conductor cross section: 0.14 mm²
  • Shielding: Shielded
  • Nominal voltage: 125 V AC
  • Test voltage: 1,000 V AC
  • Reference voltage: 48 V AC / 60 V DC
  • Signal type: Ethernet, Gigabit Ethernet
  • Transmission characteristics: CAT6A
  • Data transmission rate: ≤ 10 Gbit/s
  • Enclosure rating: IP20
  • Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
  • Contamination rating: 3
  • Insulation resistance: > 100 mΩ
  • Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
  • Dimensions (H x L x W): 6mm x 3000mm x 6mm
  • Weight: 0.1 kg
Key Features
  • Male RJ45 8-pin straight connectors on both ends
  • Shielded CAT6A cable supporting up to 10 Gbit/s data transmission
  • Halogen-free PUR jacket and cable material
  • Flame retardant according to UL 1581 and IEC 60332-1-2
  • Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
  • Contamination rating 3 for industrial environments
  • Cable length: 3 meters
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper connection and compliance with industrial network standards.
Applications
  • Industrial Ethernet networks requiring high-speed data transmission
  • Zones with oils and lubricants
  • Automation and control systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Halogen-free cable and jacket materials reduce toxic emissions in case of fire
  • Flame retardant properties enhance safety and reduce environmental hazards
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK YMRJA8-030EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet networking applications requiring robust and high-speed data transmission.


FAQ

Q: What data transmission rate does this SICK RJ45 to RJ45 cable support?

A: Its shielded Cat6A construction supports Ethernet Gigabit signals at data rates up to 10 Gbit/s.

Q: What connectors does this cable have?

A: It has male RJ45 8-pin straight connectors on both ends, suited to industrial Ethernet networks needing high-speed data transmission.


For connections needing an M12 connector on one end, an M12 to RJ45 Cat6a cable is a related option.

Where two M12 connectors are needed instead of RJ45, an M12 to M12 Cat6a extension cable fits that setup.

For a Cat6 rated M12 X-Code option instead, the M12 X-Code Cat6 30m straight cable offers a related connector standard.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
