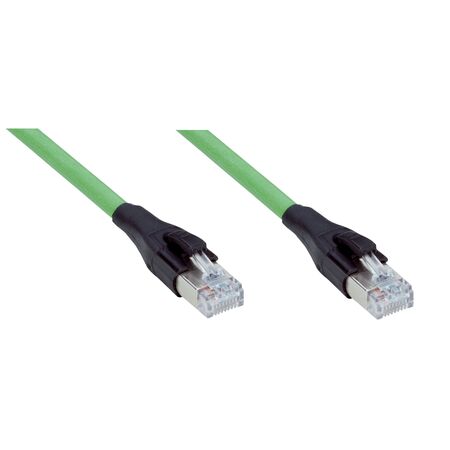

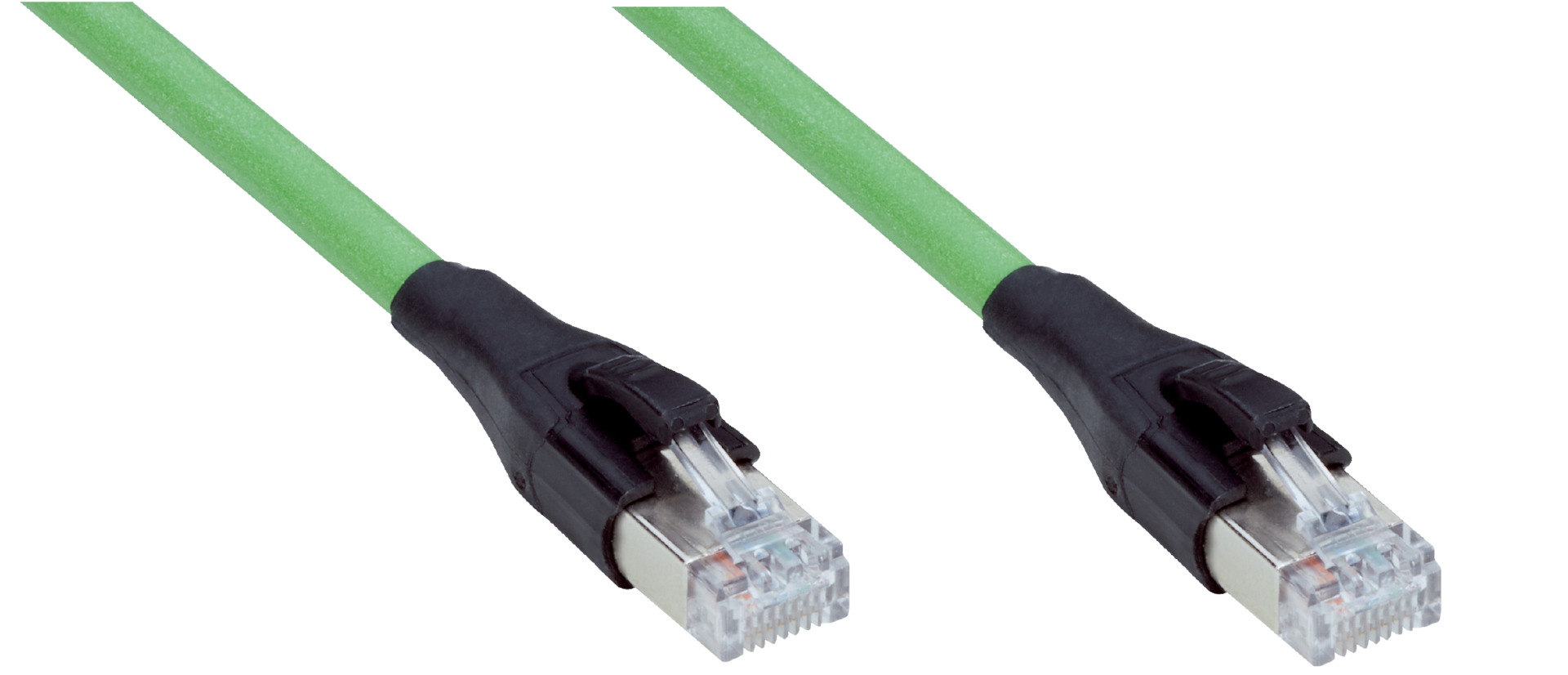

Industrial Ethernet Cable | Shielded CAT6A | 10 Gbit/s Data Rate | Halogen-Free | by SICK
The Industrial Ethernet Cable is a shielded CAT6A cable designed for high-speed data transmission rates up to 10 Gbit/s. With male RJ45 8-pin straight connectors on both ends and made from halogen-free PUR and TPU materials, it's perfect for industrial Ethernet networks, automation, and control systems. This cable is built to withstand harsh environments with an operating temperature range of -40 °C to +80 °C, ensuring reliable performance in zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Cable length: 2 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP20
- Operating temperature: Stationary -40 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant per UL 1581 Sections 1080, 1090, 1100 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Shielded CAT6A cable supporting data transmission rates up to 10 Gbit/s
- Male RJ45 8-pin straight connectors on both ends
- Cable jacket and connectors made from halogen-free PUR and TPU materials
- Flame retardant cable compliant with UL 1581 standards
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Contamination rating 3 suitable for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks requiring high-speed data transmission
- Zones with oils and lubricants
- Automation and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable materials reduce environmental impact during disposal
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YMRJA8-020EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet networking applications.
