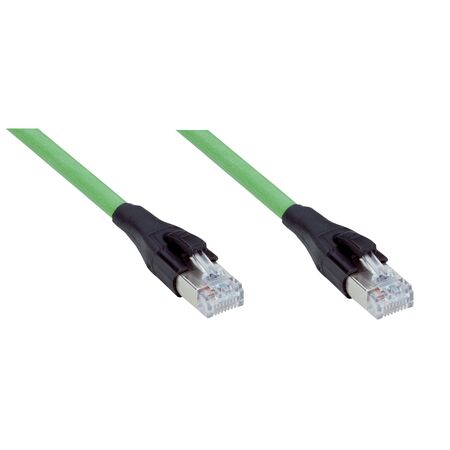

Industrial Ethernet Cable | Shielded CAT6A | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Industrial Ethernet Cable is designed for high-speed data transmission in industrial environments, featuring a shielded CAT6A construction that supports data rates up to 10 Gbit/s. With male RJ45 8-pin connectors on both ends and a halogen-free PUR jacket, this cable is perfect for applications exposed to oils and lubricants, ensuring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Connector color: Black
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage, cable: 125 V AC
- Test voltage, cable: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP20
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 10000mm x 6400mm
- Weight: 0.2 kg
Key Features
- Shielded CAT6A cable supporting data rates up to 10 Gbit/s
- Male RJ45 8-pin straight connectors on both ends
- Cable jacket made of halogen-free PUR material
- High bending radius for flexible use (>10x cable diameter)
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- Contamination rating 3 for industrial environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks requiring high-speed data transmission
- Environments with exposure to oils and lubricants
- Data communication in automation and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YMRJA8-100EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial and automation network applications requiring reliable and high-speed data transmission.
