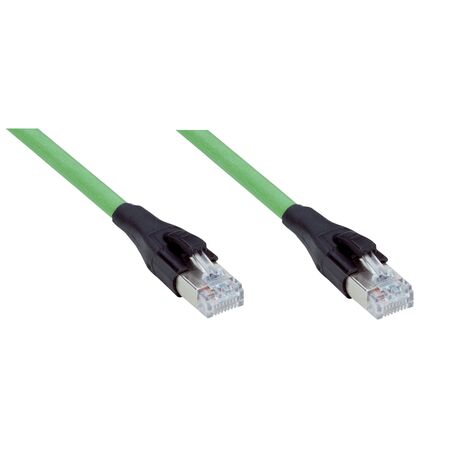

Industrial Ethernet Cable | Shielded RJ45 CAT6A | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Industrial Ethernet Cable is designed for robust data transmission in harsh environments, featuring shielded RJ45 CAT6A connectors that support data rates up to 10 Gbit/s. With a halogen-free PUR jacket, this cable is ideal for industrial Ethernet networks and zones exposed to oils and lubricants, ensuring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Cable length: 1 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP20
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Male RJ45 8-pin straight connectors on both ends
- Shielded CAT6A cable supporting up to 10 Gbit/s data rate
- Cable jacket made of halogen-free PUR material
- Flame retardant according to UL 1581 and IEC 60332-1-2
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Contamination rating 3 for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks
- Zones with oils and lubricants
- Data transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Durable PUR material extends cable lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YMRJA8-010EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial and commercial network applications requiring robust and reliable data transmission.
