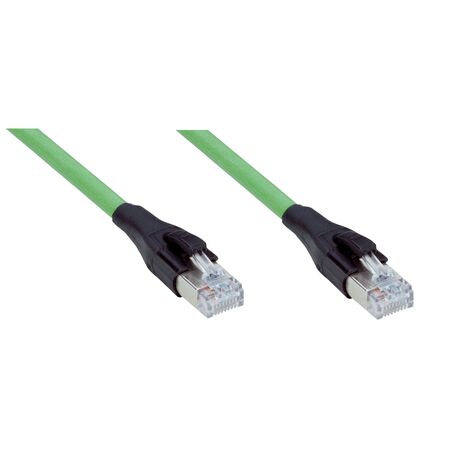

Industrial Ethernet Cable | Shielded RJ45 CAT6A | 10 Gbit/s Data Rate | Halogen-Free PUR Jacket | by SICK
The Industrial Ethernet Cable is designed for high-speed data transmission in industrial environments, featuring shielded RJ45 CAT6A connectors that support up to 10 Gbit/s. With a halogen-free PUR jacket, this cable is ideal for automation and control systems, ensuring reliable performance even in zones with oils and lubricants. Its robust construction and flame retardant properties make it a safe choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Cable length: 3 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP20
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 3000mm x 6mm
- Weight: 0.1 kg
Key Features
- Male RJ45 8-pin straight connectors on both ends
- Shielded CAT6A cable supporting up to 10 Gbit/s data transmission
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Contamination rating 3 for industrial environments
- Cable length: 3 meters
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper connection and compliance with industrial network standards.
Applications
- Industrial Ethernet networks requiring high-speed data transmission
- Zones with oils and lubricants
- Automation and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable and jacket materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YMRJA8-030EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet networking applications requiring robust and high-speed data transmission.
