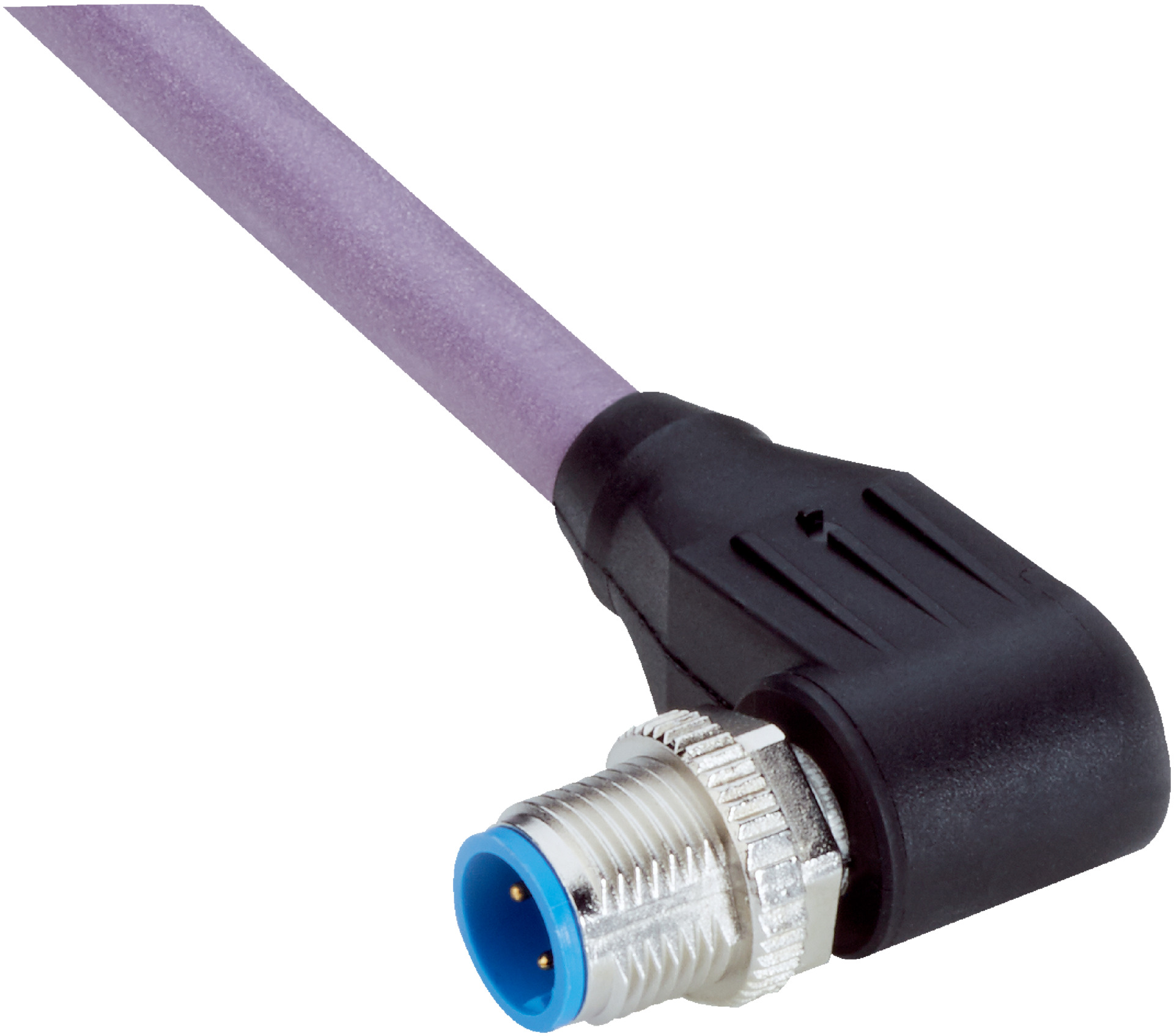

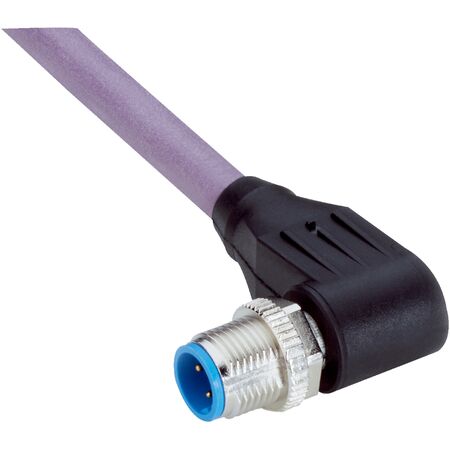

Industrial Fieldbus Cable | M12 Male Connector | 10m Length | IP65/IP66K/IP67 Rated | by SICK
The Industrial Fieldbus Cable YN2B22-100PB1XLEAX features a robust M12 male connector and a 10m halogen-free PUR jacket, making it ideal for drag chain operations in industrial automation. With an IP65/IP66K/IP67 enclosure rating and a wide operating temperature range from -40 °C to +85 °C, this cable ensures reliable data transmission and durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 2-pin, angled, B-coded
- Connection type head B: Flying leads with screw connection
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m, 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -20 °C to +60 °C, Stationary position -40 °C to +80 °C, Drag chain operation -20 °C to +60 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Bending cycles: 5,000,000
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12, 2-pin, angled, B-coded connector on head A
- Flying leads on head B with screw connection locking plug
- Cable length 10 m, 2-wire, PUR, halogen-free jacket
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Rated for 4 A current loading and 300 V AC nominal voltage
- Data transmission rate up to 0.012 Gbit/s for fieldbus communication
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial fieldbus cabling and electrical safety standards to ensure proper connection and compliance.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus and PROFIBUS DP data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacements and waste
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2B22-100PB1XLEAX industrial fieldbus cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable data transmission.
