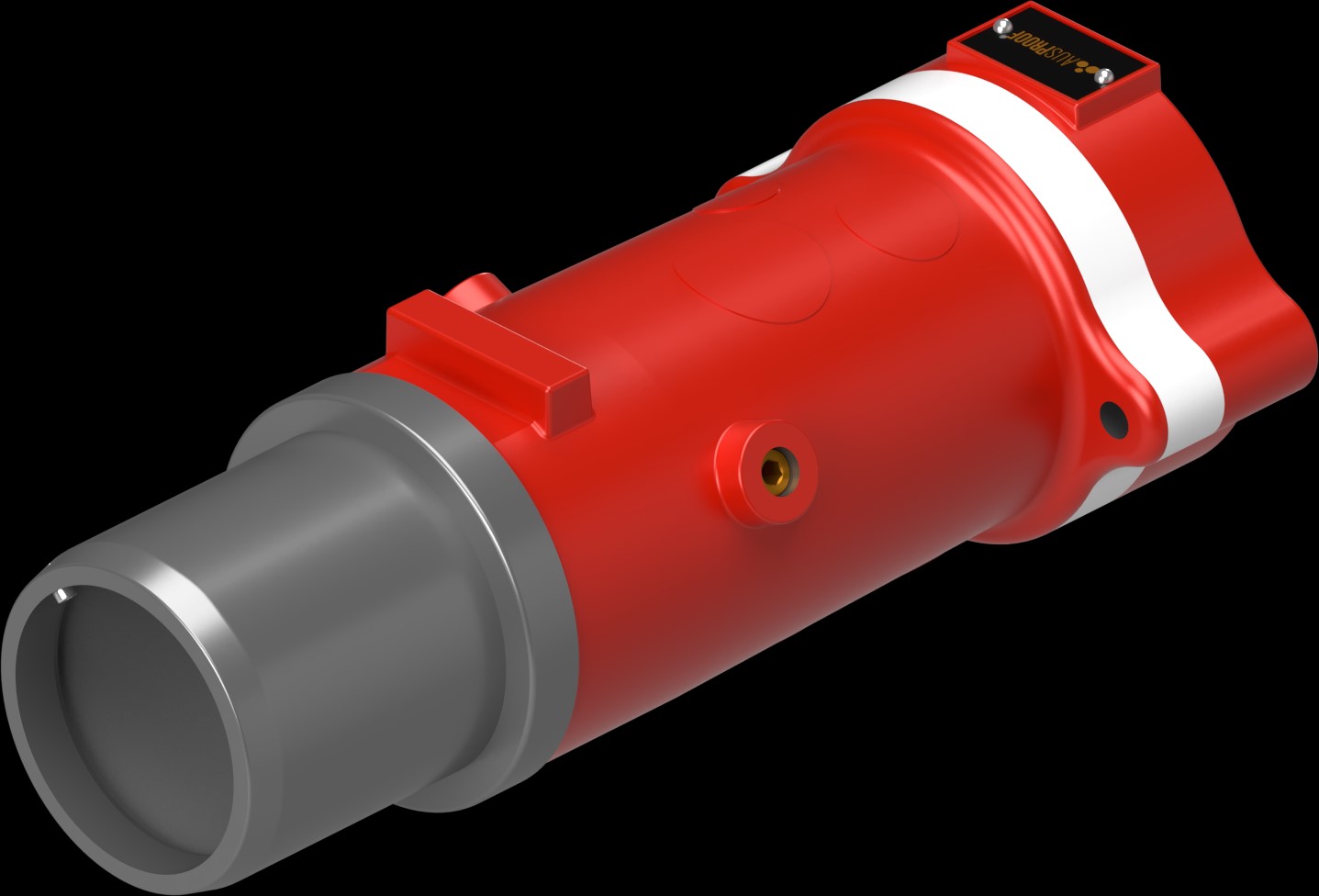

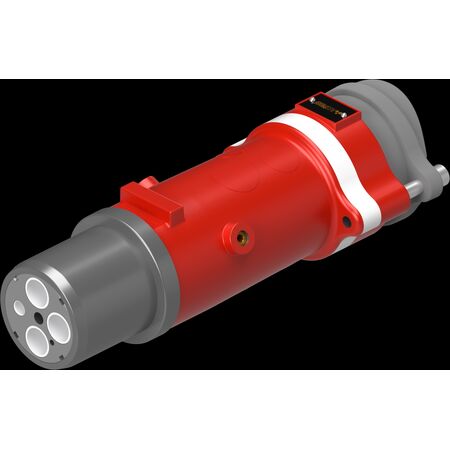

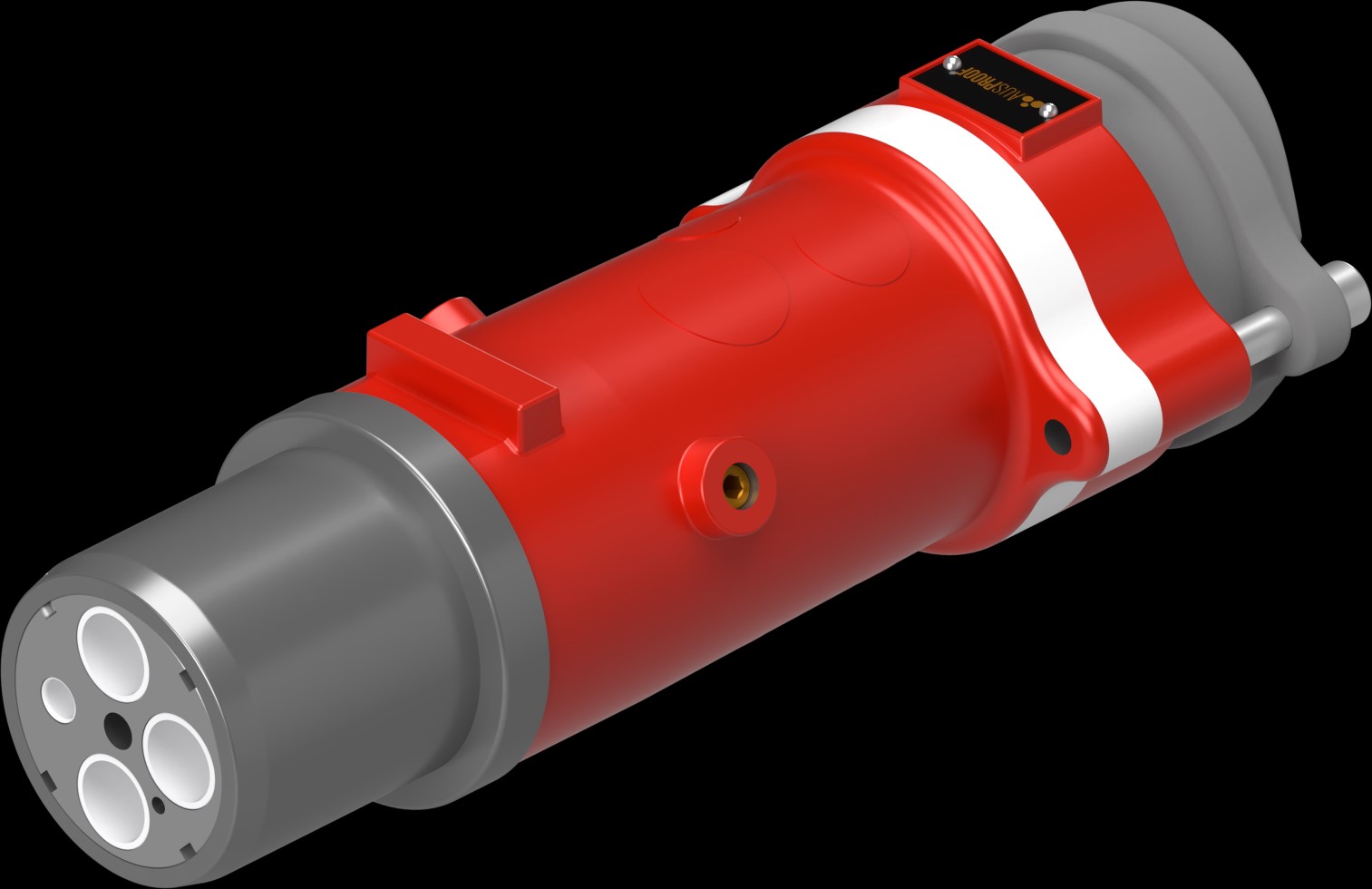

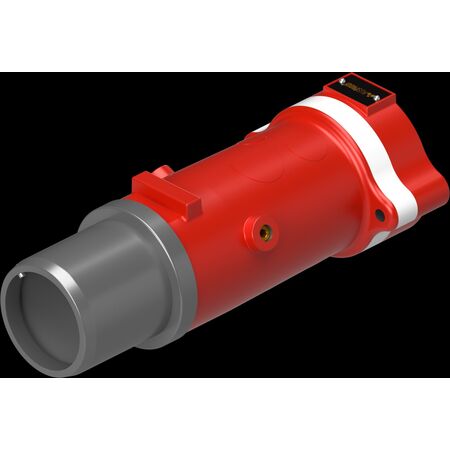

Industrial Flameproof Plug 425A 4P | IP55 Rated | Quick Release & Stainless Steel | Ausproof
The Ausproof PL 3300V 425A 4P plug is designed for hazardous environments, featuring a robust IP55 rating and quick release functionality. Ideal for mining and tunnelling applications, it ensures reliable electrical connections with durable stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 425A 4P Plug (180) 150-C 75-80-G (245.3)
Brand: Ausproof
SKU: RS2201
Alternatively Known As: Ex-certified industrial plug, Flameproof plug, Mining plug, Hazardous area plug, Stainless steel industrial plug
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 245mm x 150mm x 180mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability reduces waste by allowing on-site repairs without full replacement.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 425A 4P Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
