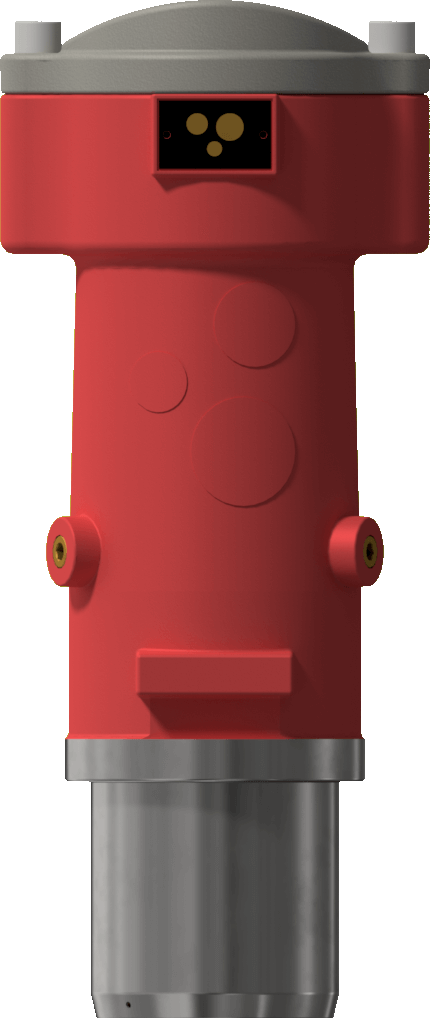

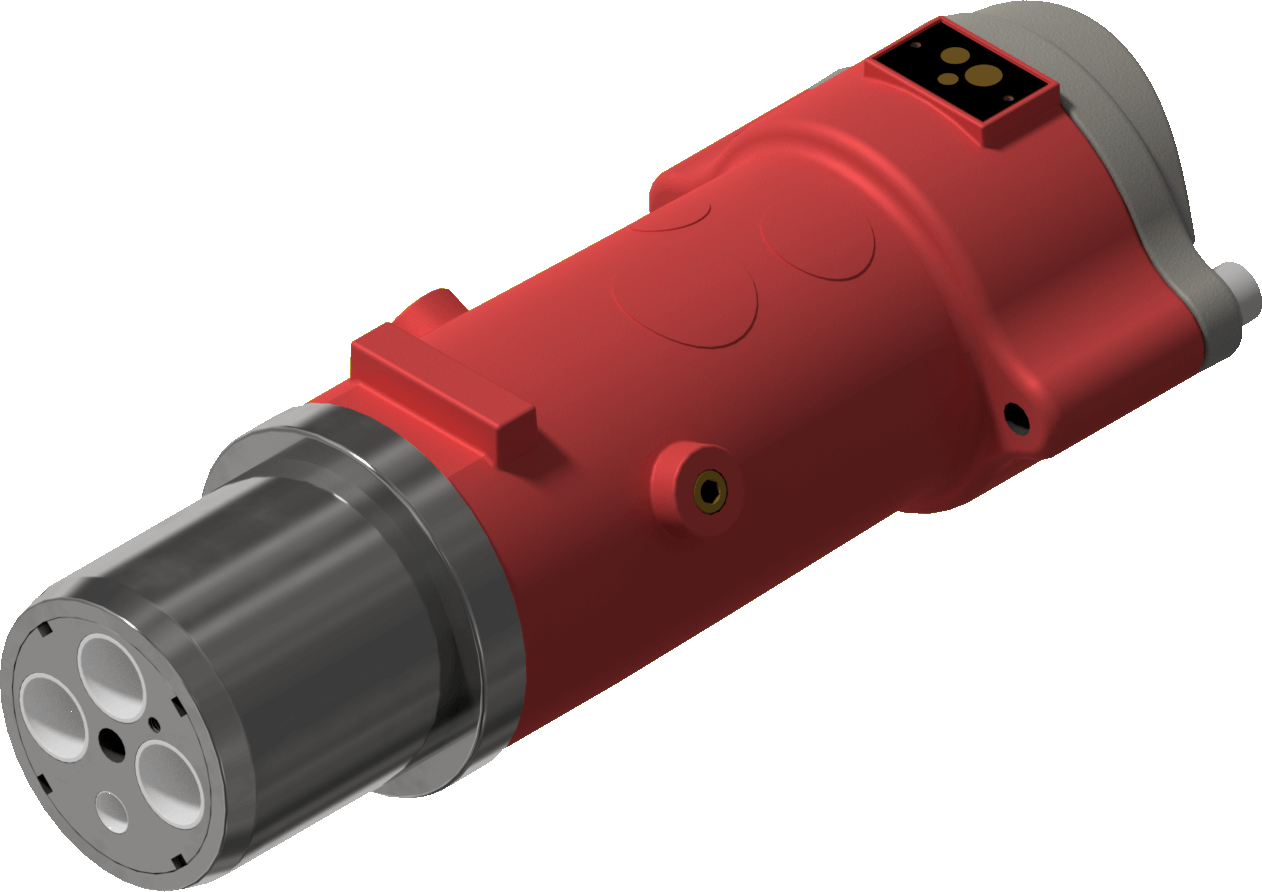

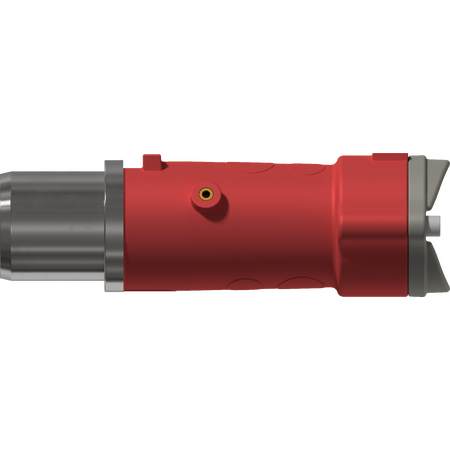

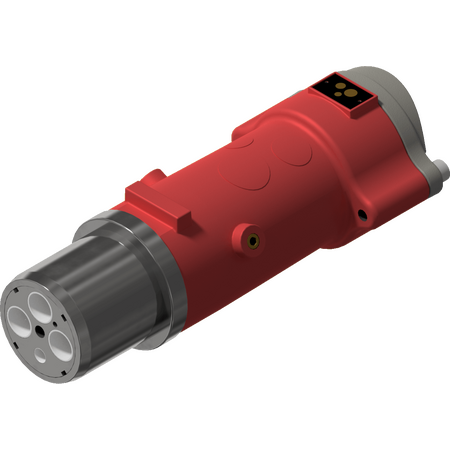

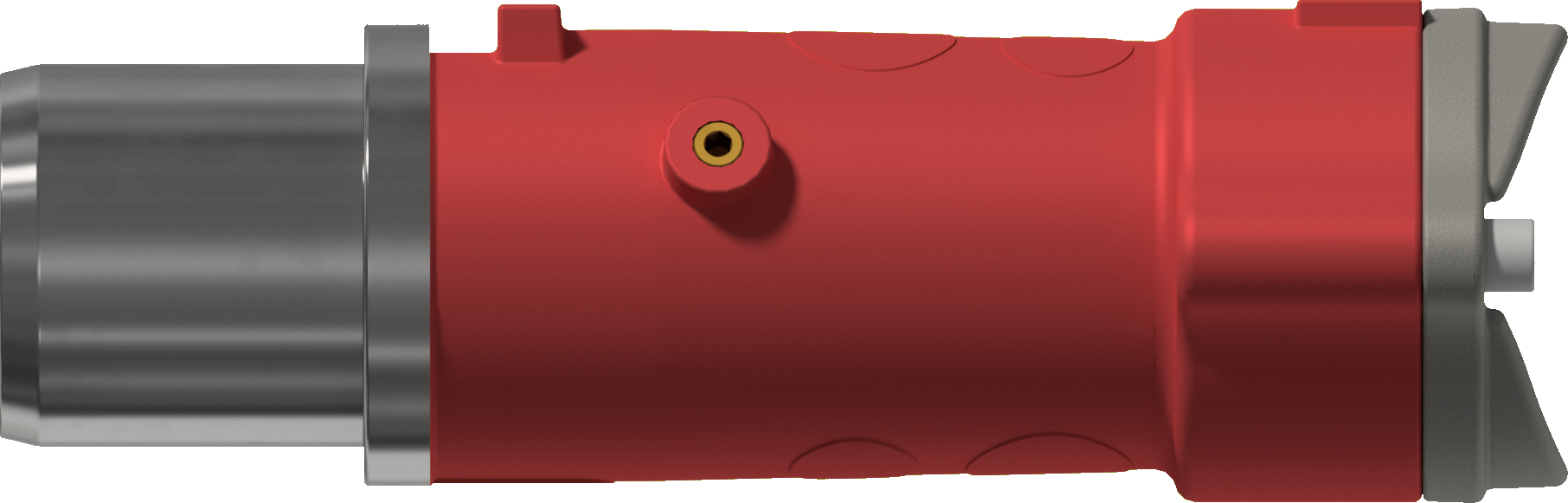

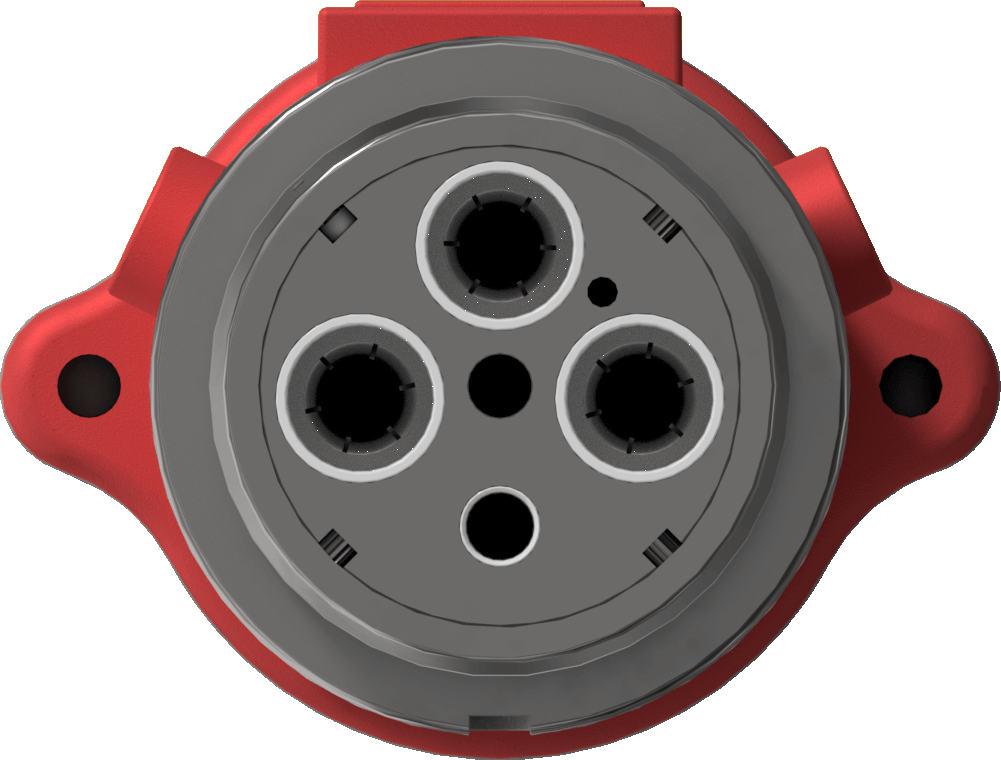

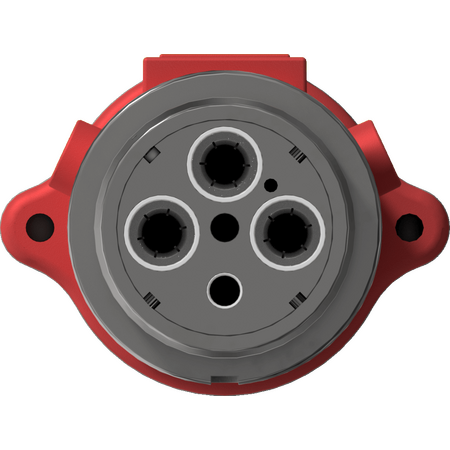

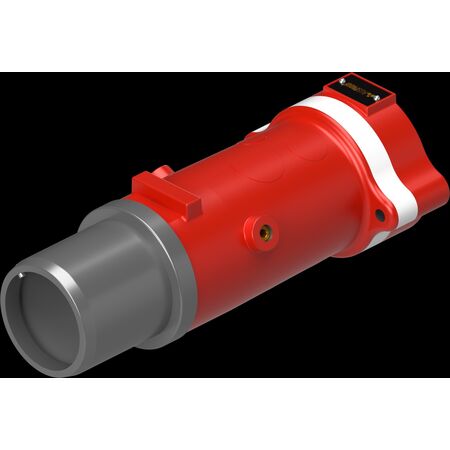

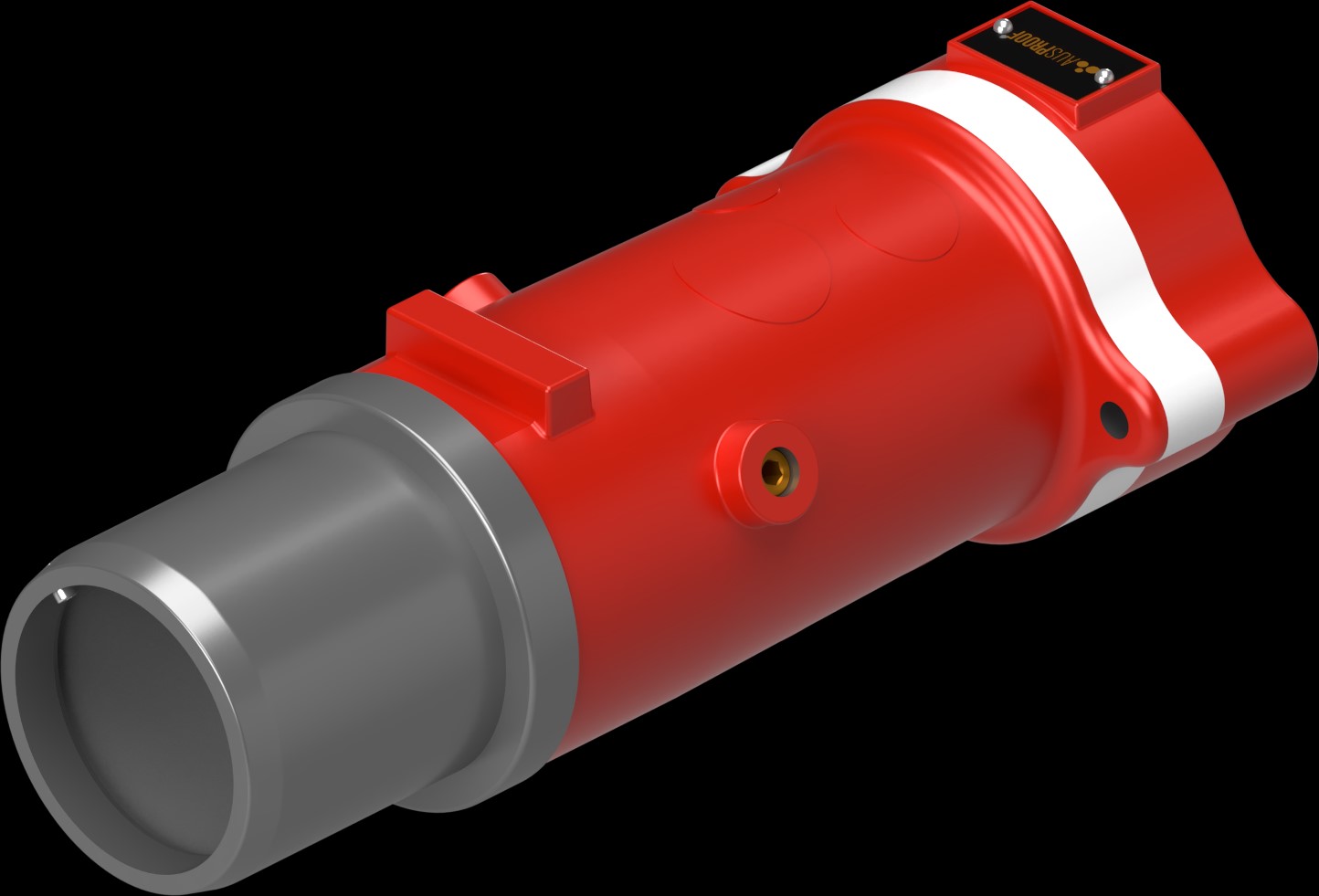

PL 3300V 425A 6P Plug Red wW FLP Removable Body

Industrial Flameproof Plug 425A 6-Pin | IP55 Ingress Protection | Quick Release & Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1980

$284.60 List price: $353.50

+ −

30 Days Return Delivery Options

This industrial flameproof plug features a 425A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, it includes quick release functionality and a robust stainless steel design for reliable performance.

Description

Product Name/Title: PL 3300V 425A 6P Plug Red wW FLP Removable Body

Brand: Ausproof

SKU: RS1980

Alternatively Known As: Ex-certified industrial plug, Flameproof plug, Mining plug, Hazardous area plug, 6-pin industrial plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Suitable for 300A and 425A
Weight: 9.0 kg
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 9.0 kg

Key Features

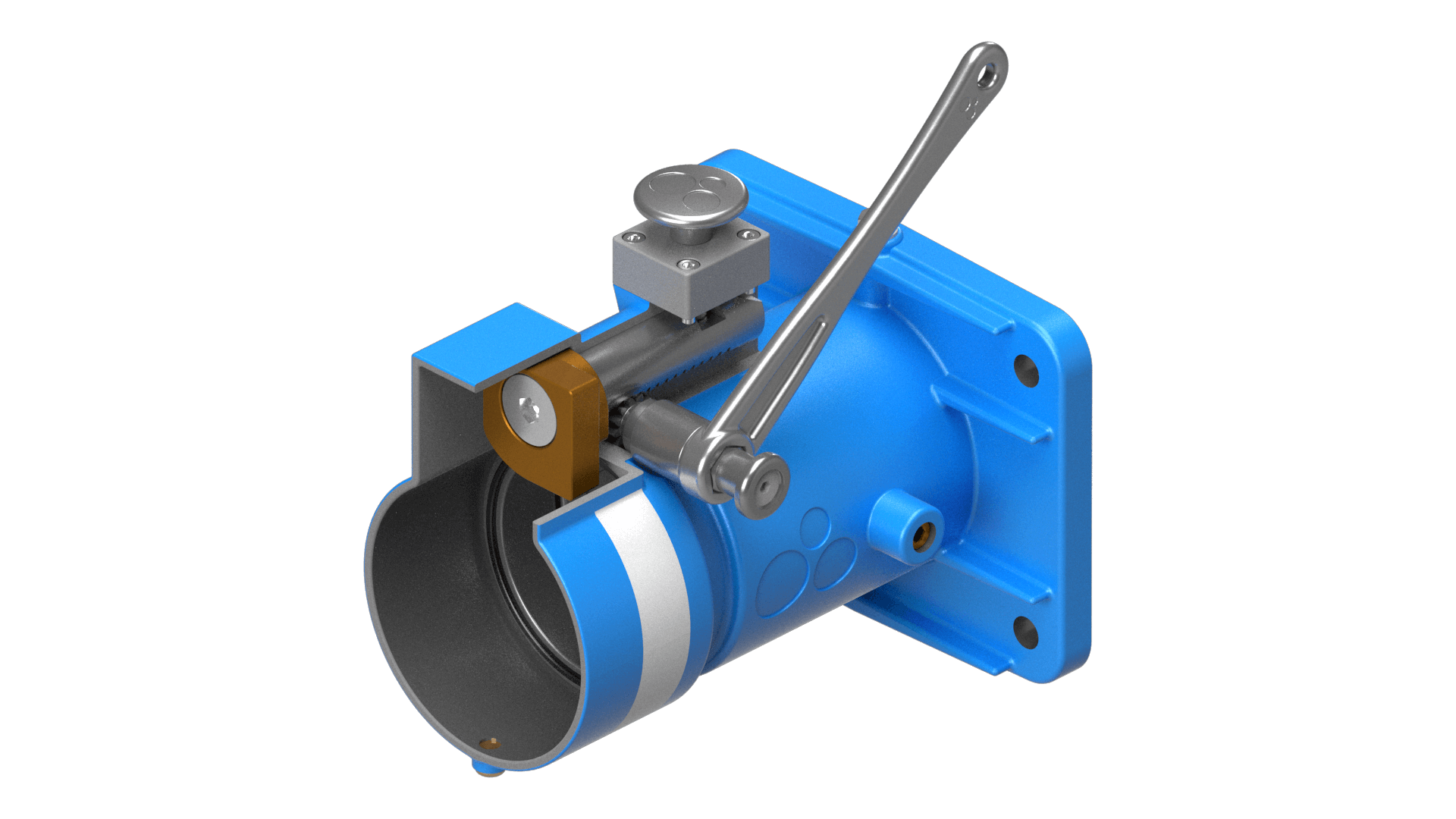

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover

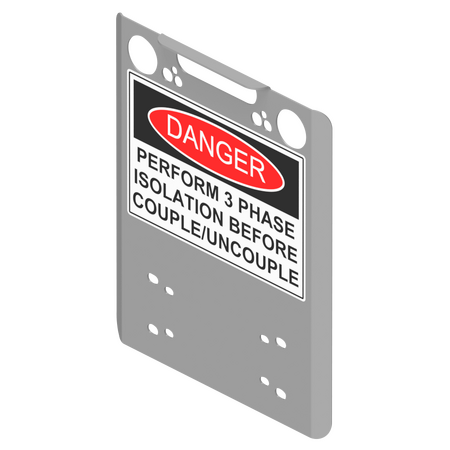

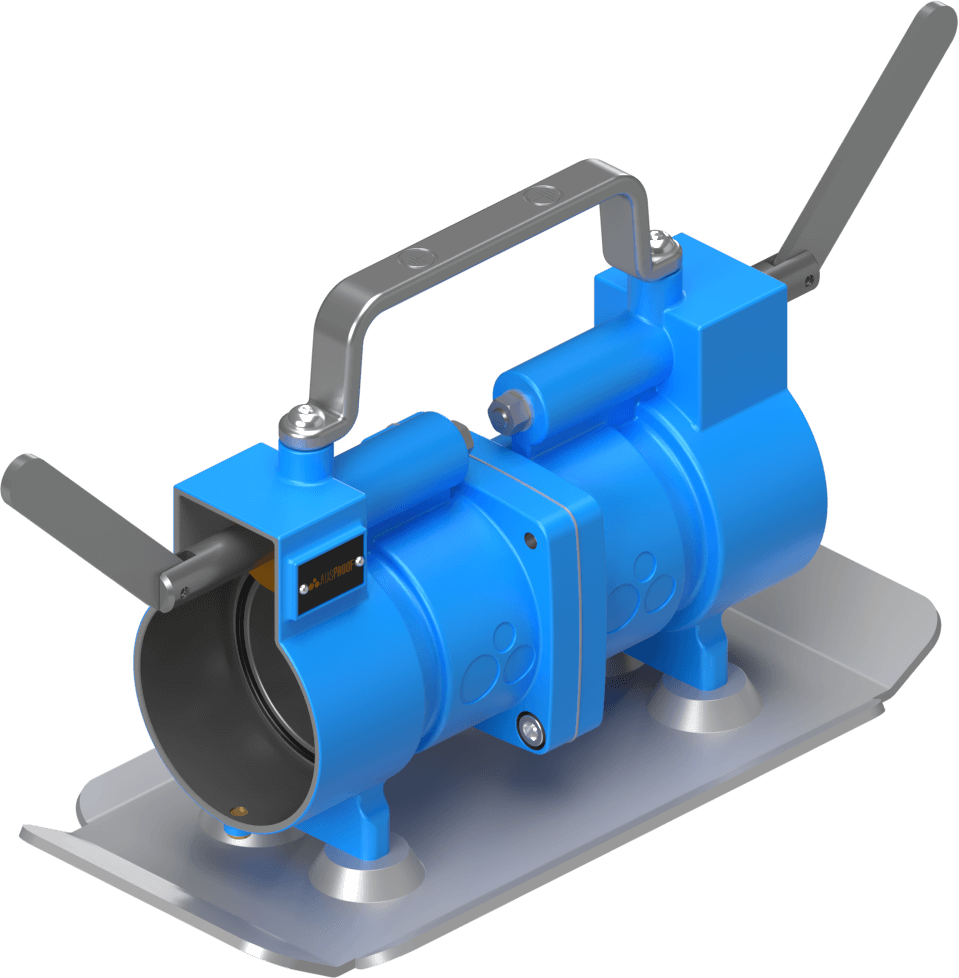

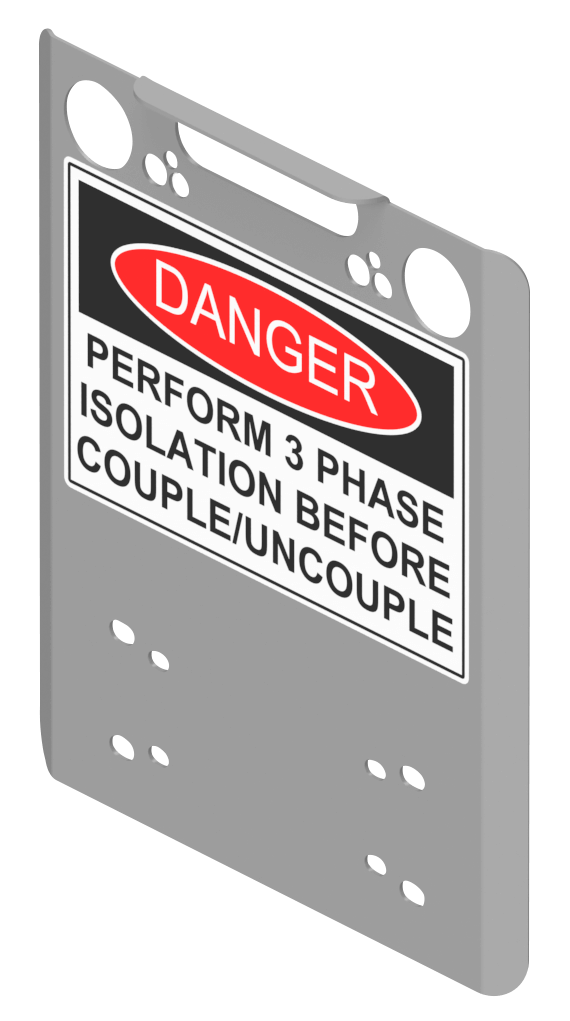

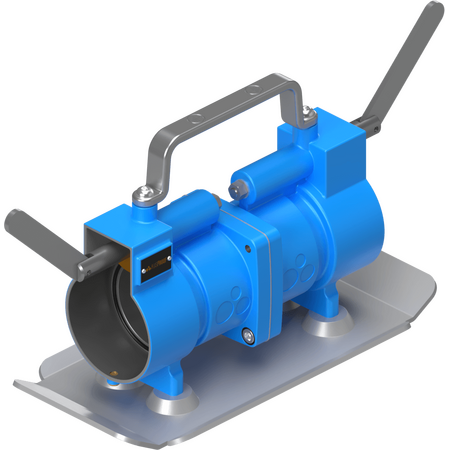

Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste through long product life.
Flameproof repairable design minimizes need for full replacements, reducing material consumption.

Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL 3300V 425A 6P Plug Red wW FLP Removable Body is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
