Industrial Flameproof Receptacle 425A | IP55 Ingress Protection | Quick Release & Stainless Steel | Ausproof
The Ausproof Industrial Flameproof Receptacle offers a robust 425A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, it features quick release and stainless steel construction for easy installation and maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

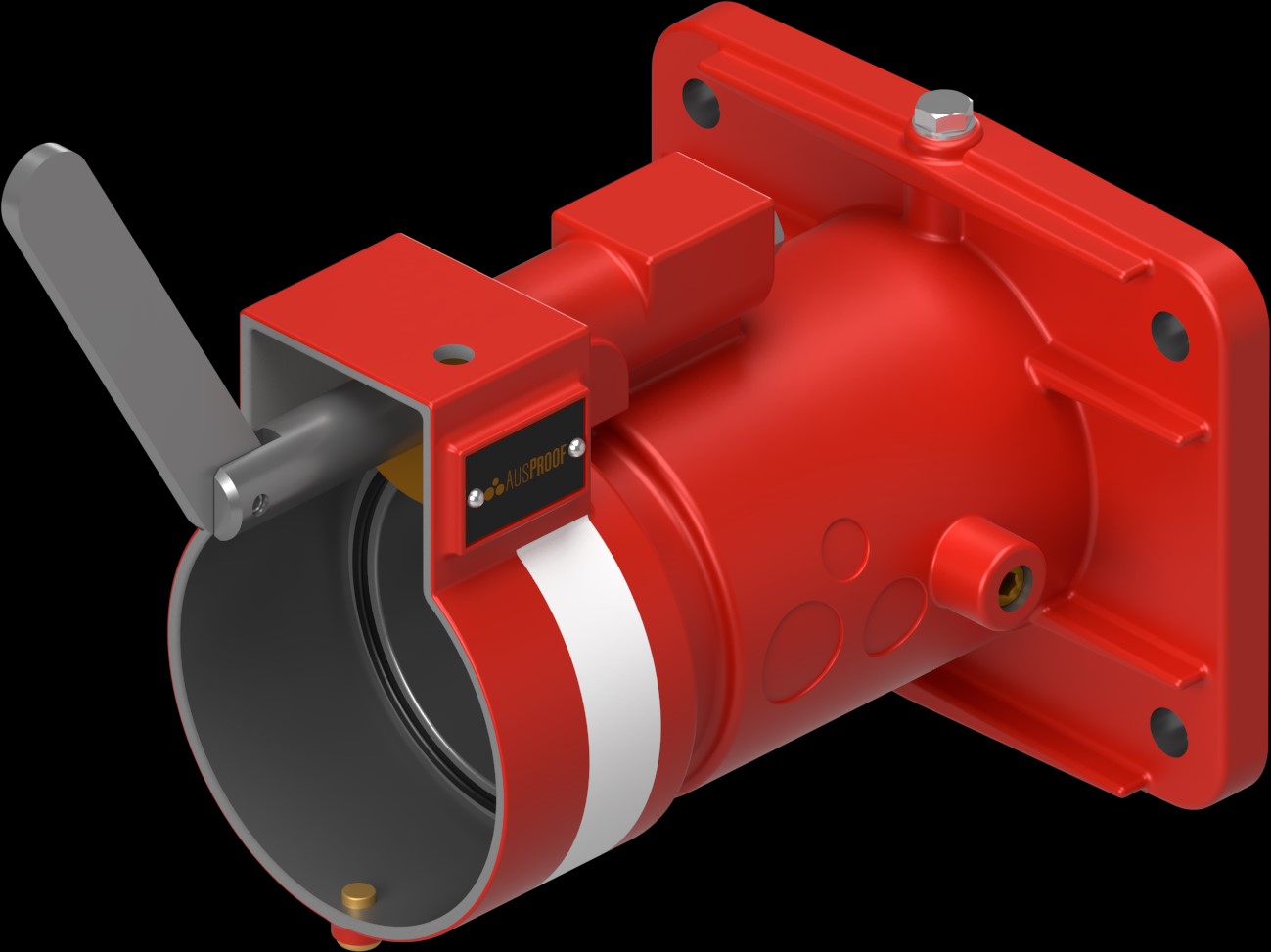

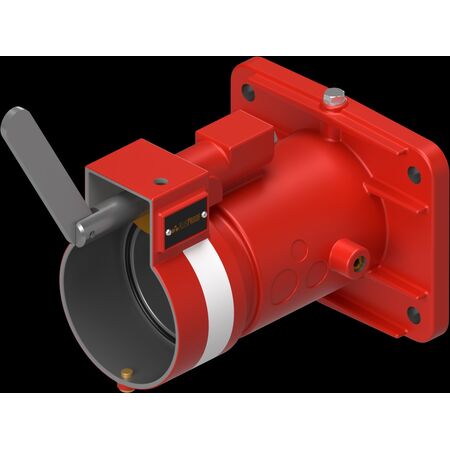

Product Name/Title: PL 3300V 425A 6P RECEP Red wW Body Kit
Brand: Ausproof
SKU: RS1913
Alternatively Known As: PL Range Receptacle, Ex-rated 425A Receptacle, Flameproof Industrial Receptacle, Mining Grade Electrical Receptacle
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 300mm x 150mm x 250mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance with safety standards.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 3300V 425A 6P Receptacle Red wW Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
