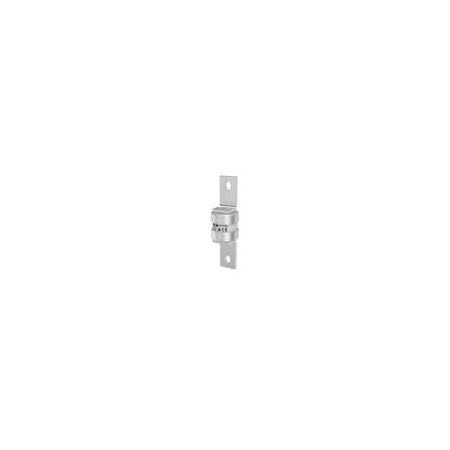

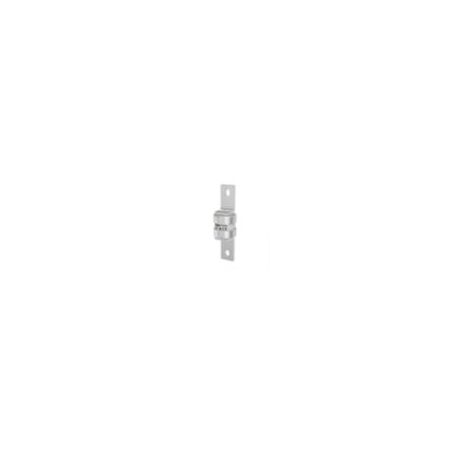

Industrial Fuse 315A 415V AC | Class gG/gL | 80 kA Breaking Capacity | Centre Bolted Tags by Eaton
The 315AMP 415V AC industrial fuse is designed for low voltage protection in electrical systems, featuring a class gG/gL rating and an impressive 80 kA breaking capacity. Ideal for industrial and commercial applications, it ensures reliable performance and compliance with IEC 60269-2 and BS88 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Fuse 315A 415V AC | Class gG/gL | 80 kA Breaking Capacity | Centre Bolted Tags by Eaton
Brand: Eaton
SKU: ED315
Alternatively Known As: 315A Industrial Fuse, 415V AC Fuse, BS88 Fuse, Low Voltage Fuse, Bussmann Fuse ED315
Technical Specifications
- Amperage Rating: 315 A
- Voltage Rating: 415 V AC
- Fuse Type: ED
- Class: gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/B3 BS88/B4
- Fitted with: Centre bolted tags
- Certifications: IEC 60269-2, BS88
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 39mm x 136mm x 38mm
- Weight: 0.294 kg
Key Features
- Low voltage British standard fuse
- Rated at 315A and 415V AC
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 80 kA
- Centre bolted tags for secure fitting
- Complies with IEC 60269-2 and BS88 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse selection.
Applications
- Industrial electrical systems requiring low voltage fuse protection
- Electrical panels and switchboards
- Motor and transformer protection in commercial and industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Warranty terms as per Eaton's standard product warranty policy.
Available Now
The Eaton 315AMP 415V AC Industrial Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
