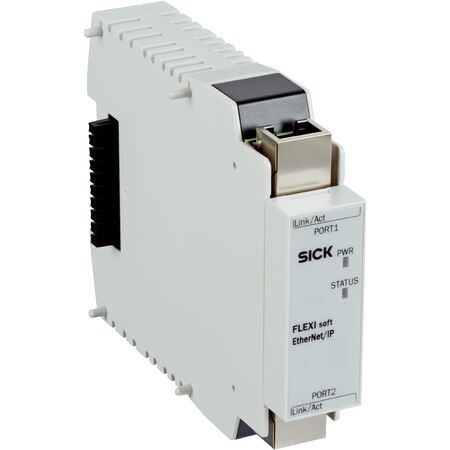

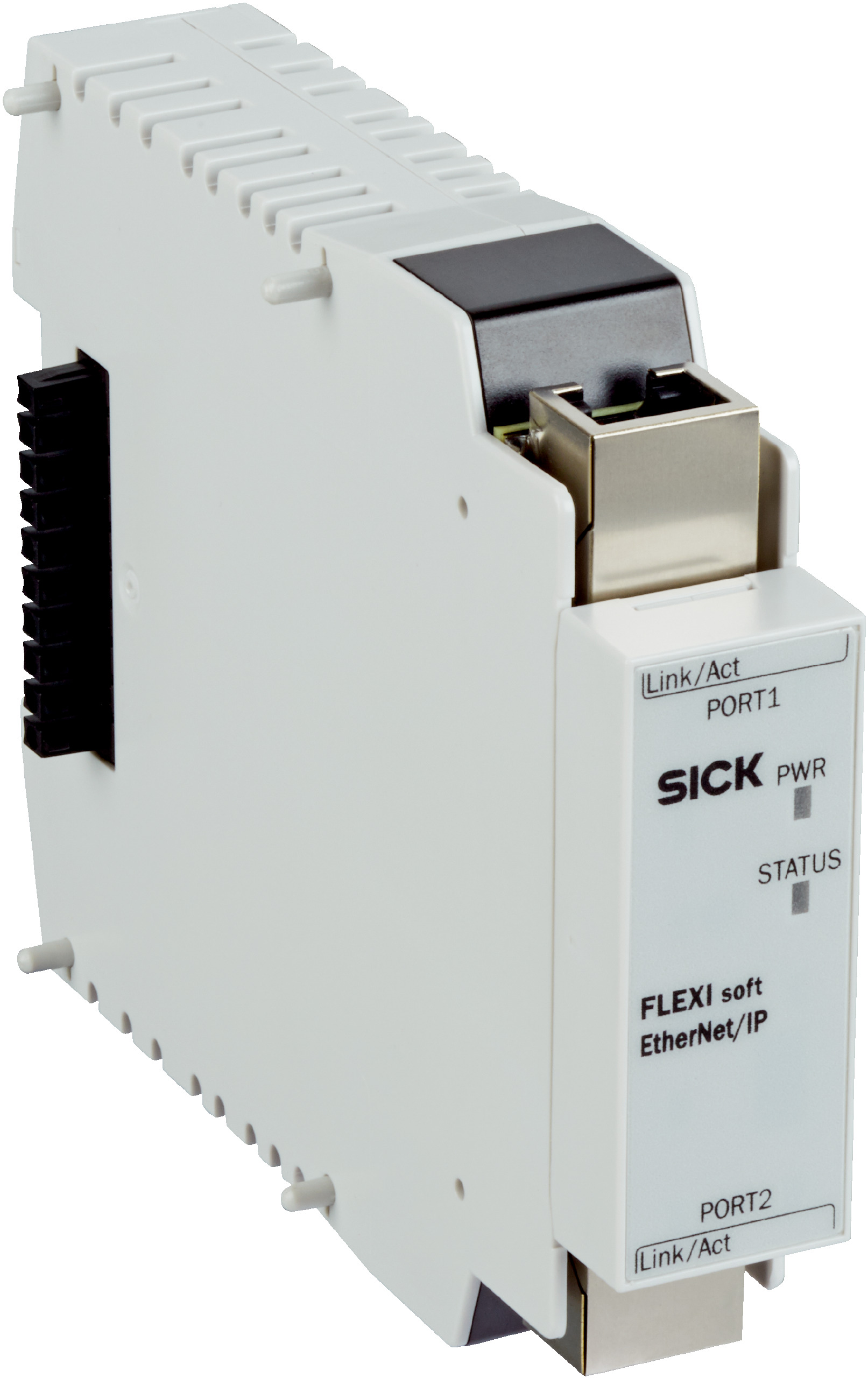

Industrial Gateway Module FX0-GENT00000 | EtherNet/IP & TCP/IP Support | 3-Port Managed Switch | IP20 Enclosure | by SICK
The Industrial Gateway Module FX0-GENT00000 is designed for seamless network communication in industrial automation systems. Supporting EtherNet/IP™ and TCP/IP sockets, it features a 3-port managed Ethernet switch for efficient data transmission rates of 10 Mbit/s and 100 Mbit/s. With a robust IP20 enclosure and low power consumption, this module is perfect for integrating safety and control systems using Flexi Soft Designer.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Gateway Module FX0-GENT00000 | EtherNet/IP & TCP/IP Support | 3-Port Managed Switch | IP20 Enclosure | by SICK
Brand: SICK
SKU: 1044072
Alternatively Known As: Industrial Gateway Module, EtherNet/IP Gateway, TCP/IP Industrial Network Gateway
Technical Specifications
- Module type: Gateway
- Fieldbus/Industrial network: EtherNet/IP™, TCP/IP sockets
- Configuration method: Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
- Integrated Ethernet switch: 3-port layer-2 managed switch with Auto-MDI-X
- Data transmission rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection type: 2 x female RJ-45 connectors
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 3 W
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: ≤ 95 %, non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.125 kg
Key Features
- Gateway module for industrial network communication
- Supports EtherNet/IP™ and TCP/IP sockets
- 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Data transmission rates of 10 Mbit/s and 100 Mbit/s autosensing
- Connection via 2 x female RJ-45 connectors
- Voltage supply via FLEXBUS+
- Low internal power consumption (≤ 3 W)
- Protection class III (EN 61140)
- Operating temperature range from –25 °C to +55 °C
- IP20 enclosure rating
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial network systems and electrical safety standards.
Applications
- Industrial automation systems requiring network communication
- Integration with EtherNet/IP™ and TCP/IP socket networks
- Safety and control systems using Flexi Soft Designer and Safe EFI-pro System
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial environments
- Supports efficient network communication to optimize system performance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-GENT00000 Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
