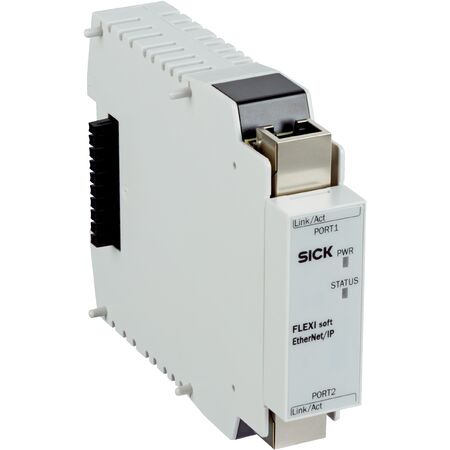

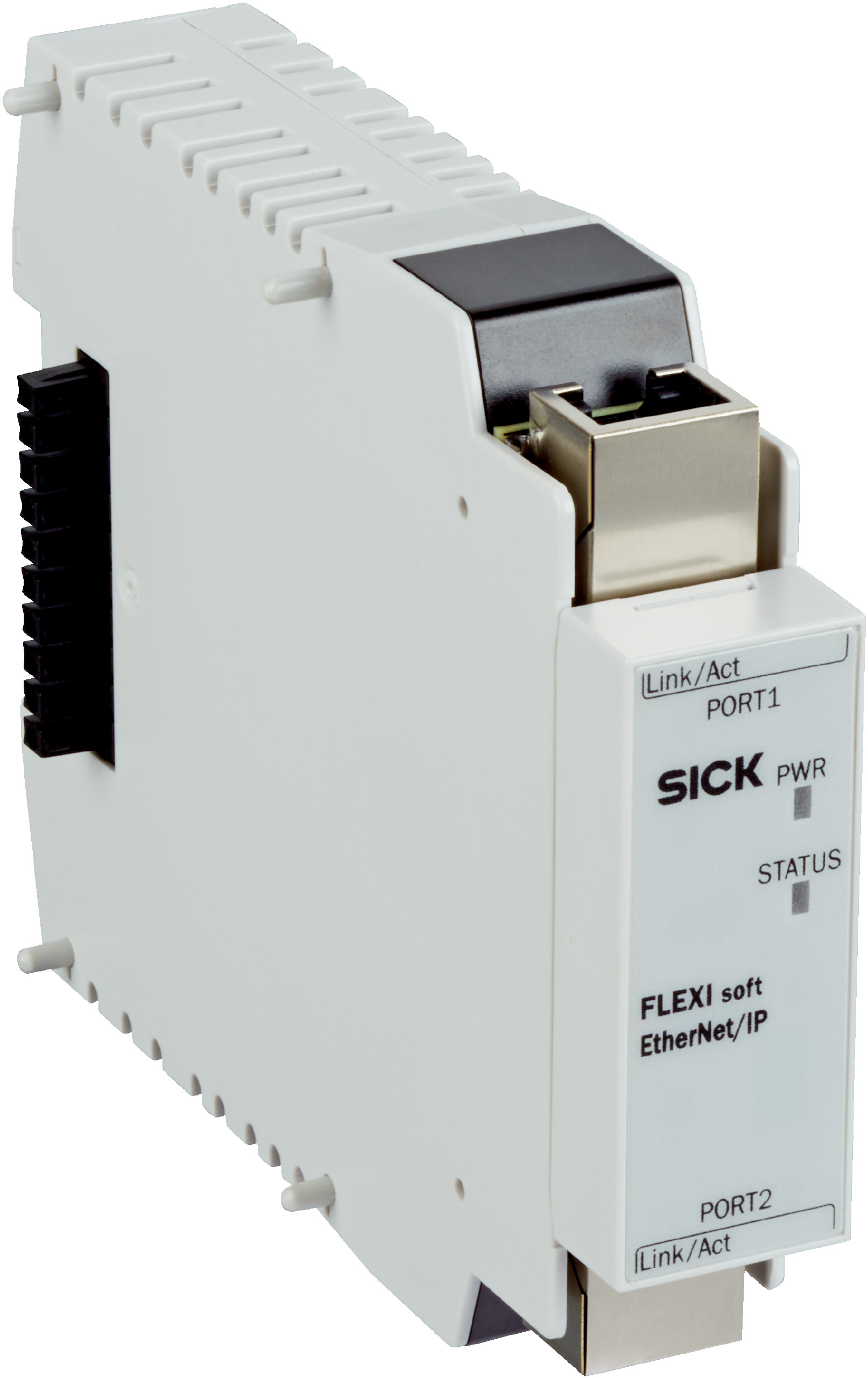

Industrial Gateway Module | EtherNet/IP & TCP/IP Support | 3-Port Managed Switch | IP20 Rated | by SICK
The Industrial Gateway Module FX0-GENT00010 is designed for seamless integration in industrial automation and control systems, supporting EtherNet/IP™ and TCP/IP sockets. With a 3-port managed Ethernet switch and low power consumption, it’s perfect for factory communication networks, ensuring reliable data transmission even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: EtherNet/IP™, TCP/IP sockets
- Configuration Method: Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
- Integrated Ethernet Switch: 3-port layer-2 managed switch with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Gas Resistance: Sulfur dioxide 25 ppm for 21 days at 25 °C; Mixed gases including H2S, NO2, Cl2, SO2 for 21 days at 30 °C
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.125 kg
Key Features
- Gateway module supporting EtherNet/IP™ and TCP/IP sockets
- 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Protective coating for resistance to sulfur and harsh environments
- Low internal power consumption (≤ 3 W)
- Supports configuration via Flexi Soft Designer and Safe EFI-pro System
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial network equipment and electrical safety standards.
Applications
- Industrial automation and control systems
- Factory communication networks
- Data transmission in challenging ambient conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Protective coating extends product lifespan in corrosive environments, reducing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FX0-GENT00010 Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
