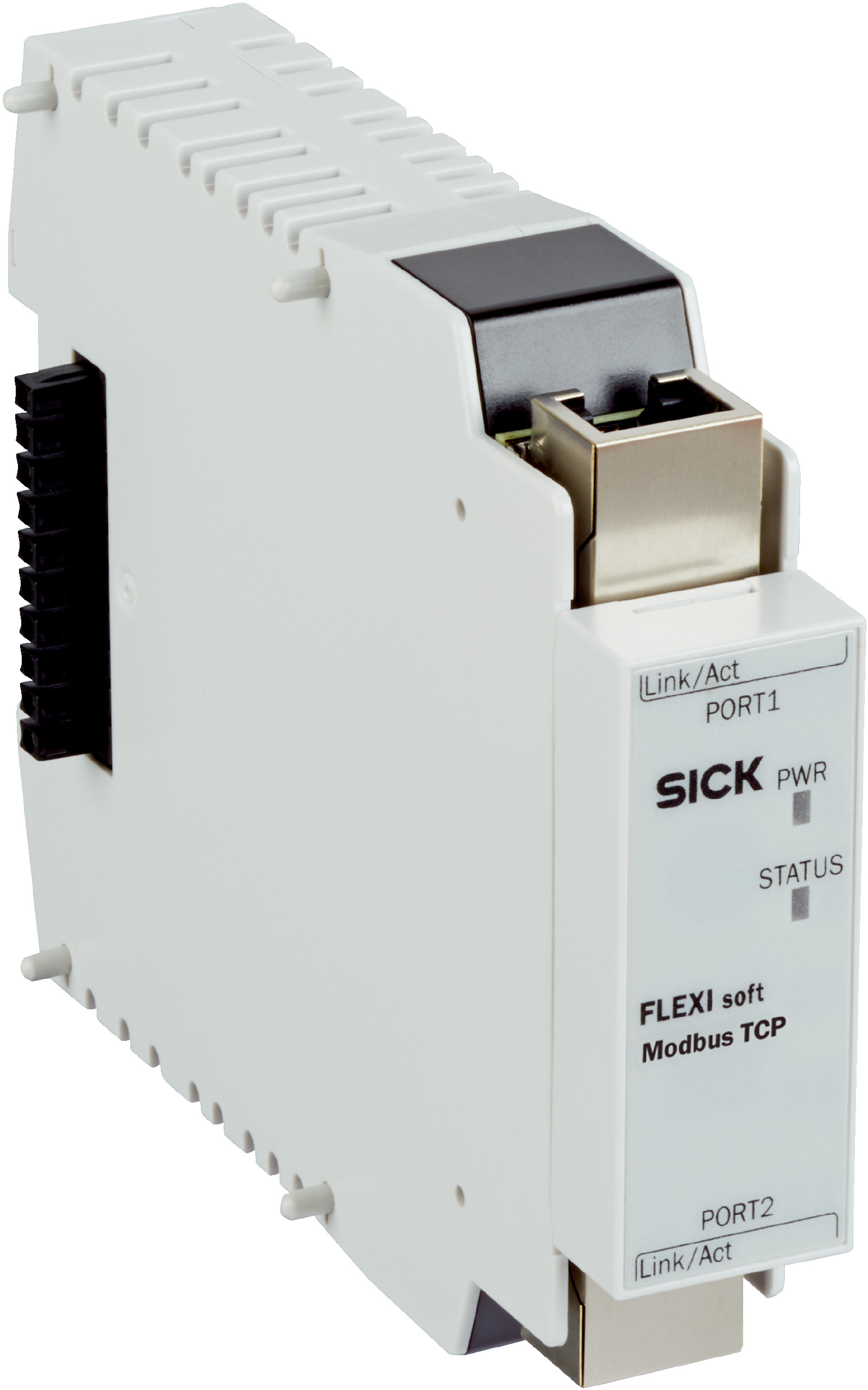

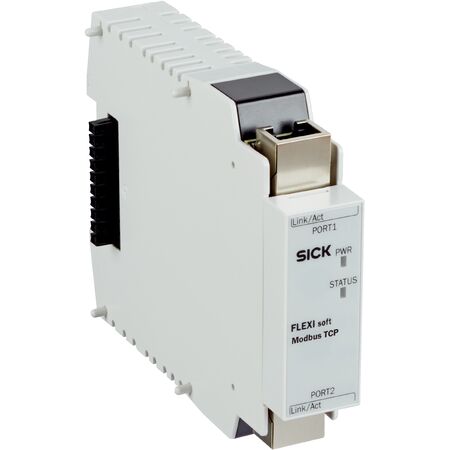

Industrial Gateway Module FX0-GMOD00000 | Modbus TCP & Ethernet | 3-Port Managed Switch | by SICK
The Industrial Gateway Module FX0-GMOD00000 is designed for seamless network communication in industrial automation systems. Supporting Modbus TCP and TCP/IP sockets, this module features a 3-port managed Ethernet switch for efficient data transmission. Ideal for integrating safety and control systems, it ensures reliable connectivity in factory and process automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Gateway Module FX0-GMOD00000 | Modbus TCP & Ethernet | 3-Port Managed Switch | by SICK
Brand: SICK
SKU: 1044073
Alternatively Known As: Industrial Gateway Module, Modbus TCP Gateway, Ethernet Gateway Module
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: Modbus TCP, TCP/IP sockets
- Configuration Method: Via Flexi Soft Designer and Safe EFI-pro System software
- Integrated Ethernet Switch: 3-port layer-2 managed with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.125 kg
Key Features
- Gateway module for industrial network communication
- Supports Modbus TCP and TCP/IP sockets
- 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Data transmission rates of 10 Mbit/s and 100 Mbit/s autosensing
- Connection via 2 x female RJ-45 connectors
- Configuration via Flexi Soft Designer and Safe EFI-pro System software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial network equipment and electrical safety standards.
Applications
- Industrial automation systems requiring network communication
- Integration of safety and control systems via Modbus TCP/IP
- Factory and process automation with Ethernet connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low internal power consumption of ≤ 3 W reduces energy usage
- Supports efficient industrial network communication to optimize system performance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-GMOD00000 Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
