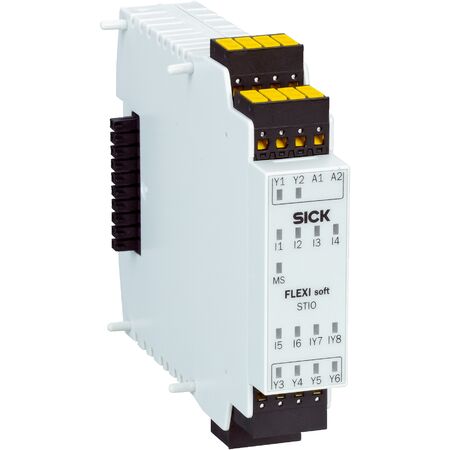

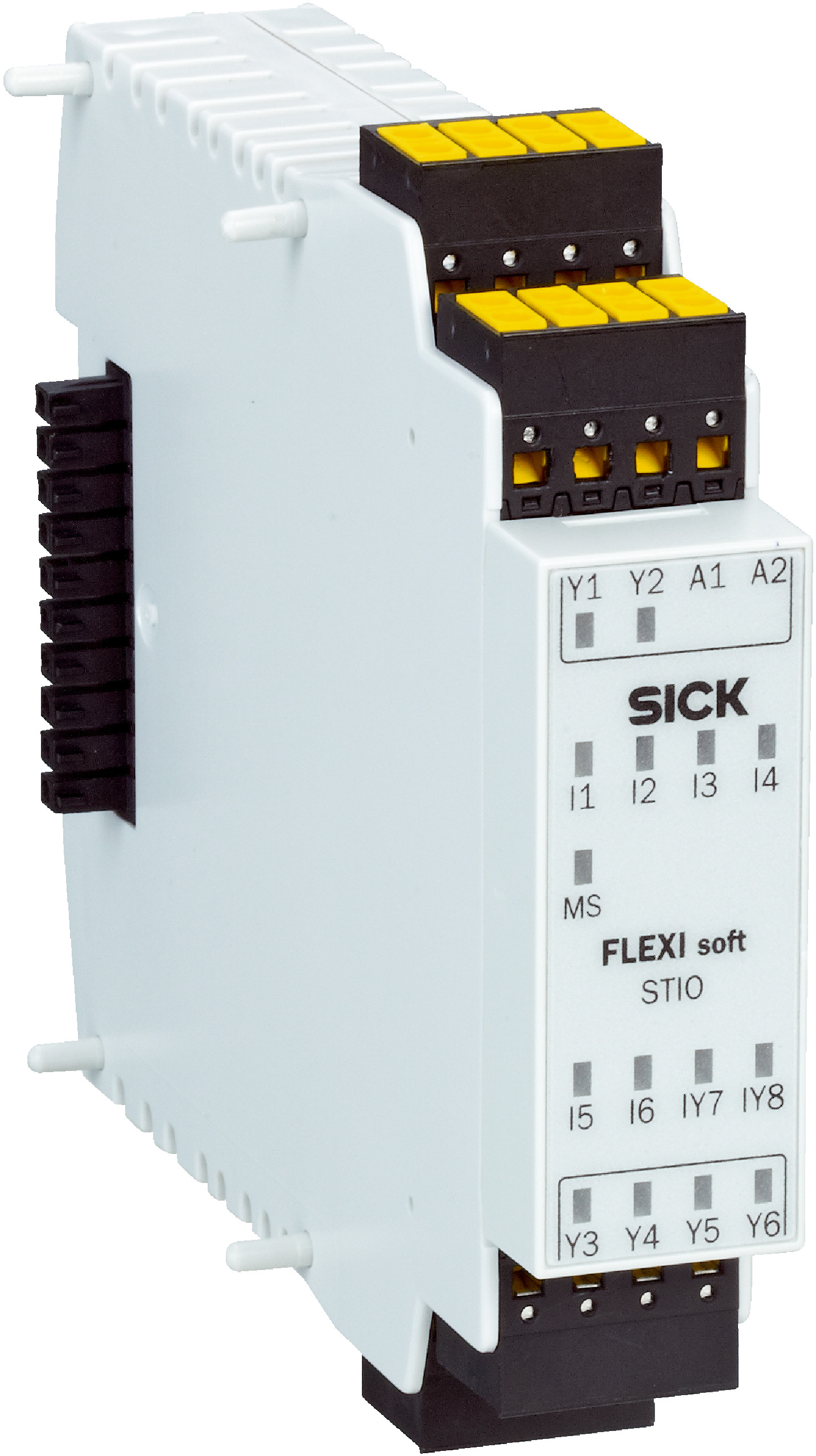

Industrial I/O Module SICK FX0-STIO68012 | Configurable via Software | Protective Coating | by SICK
The SICK FX0-STIO68012 Industrial I/O Module is designed for robust input/output control in industrial automation systems. Configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software, it features a protective coating for resistance to sulfur and harsh conditions. With a wide operating temperature range from -25°C to +55°C and reliable plug-in spring terminal connections, this module is perfect for challenging environments requiring safety and control integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: I/O module
- Configuration Method: Via software (Flexi Soft Designer, Safe EFI-pro System Safety Designer)
- Number of Non-Safe Inputs: 6-8
- Number of Non-Safe Outputs: 6-8
- Connection Type: Plug-in spring terminals
- Protection Class: III (EN 61140)
- Voltage Supply: 24 V DC (16.8 V DC ... 30 V DC) via A1, A2
- Input Voltage HIGH: 13 V DC ... 30 V DC
- Input Voltage LOW: -5 V DC ... 5 V DC
- Input Current HIGH: 2.4 mA ... 3.8 mA
- Input Current LOW: -2.5 mA ... 2.1 mA
- Output Type: PNP semiconductors, short-circuit protected
- Output Voltage HIGH: 16 V DC ... 30 V DC
- Output Current: ≤ 500 mA
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: -25 °C ... +55 °C
- Storage Temperature: -25 °C ... +70 °C
- Air Humidity: ≤ 95 %, Non-condensing
- Gas Resistance: Resistant to sulfur dioxide and mixed gases per IEC standards
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.139 kg
Key Features
- I/O module configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Protective coating for resistance to sulfur and harsh ambient conditions
- Plug-in spring terminal connections for reliable wiring
- Short-circuit protected PNP semiconductor outputs
- Wide operating temperature range from -25°C to +55°C
- IP20 enclosure rating suitable for industrial environments
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial electrical systems and safety standards.
Applications
- Industrial automation systems requiring input/output control
- Environments with challenging ambient conditions including sulfur exposure
- Safety and control systems integration via software configuration
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan reducing waste
- Low internal power consumption (≤ 1.5 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FX0-STIO68012 I/O Module is available for immediate purchase, ideal for industrial automation and control applications in challenging environments.
