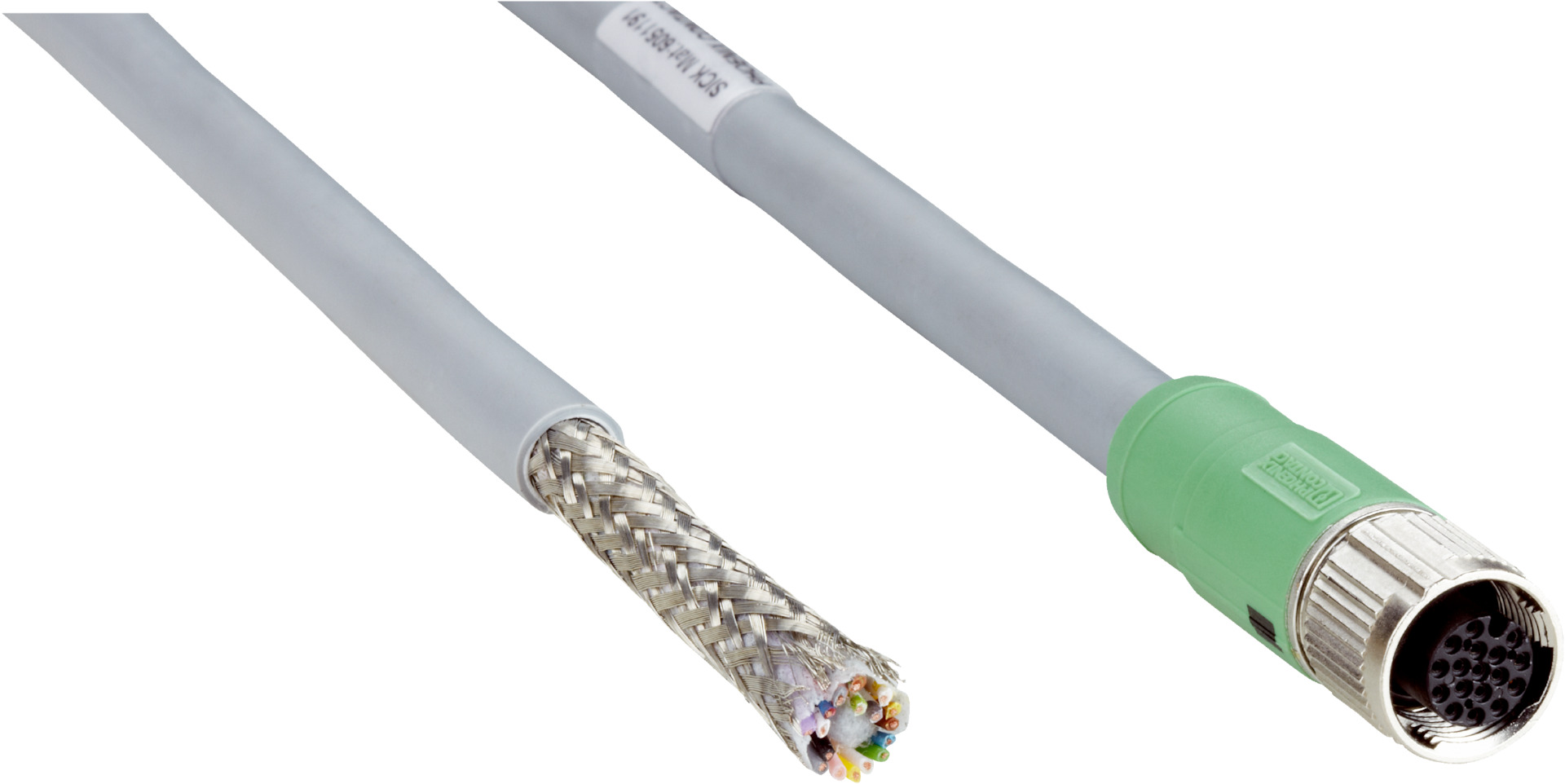

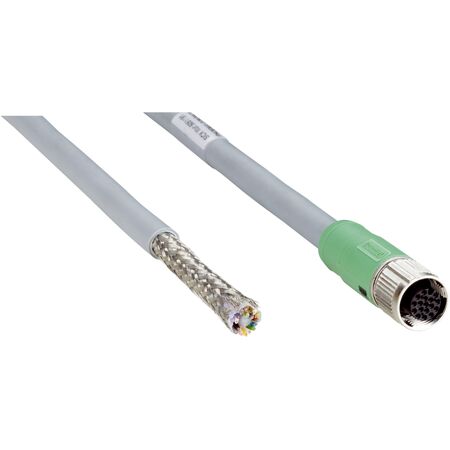

Industrial M12 17-Pin Cable | 3m Shielded PE-X | Quick Screw Connector | by SICK
The Industrial M12 17-pin cable is designed for reliable signal transmission in automation systems, featuring a 3m shielded PE-X construction and a quick screw locking connector. Ideal for drag chain operations, it supports power, serial, CAN, and digital I/O signals, ensuring durability with a bending cycle rating of 1,000,000 and an operating temperature range of -40 °C to +80 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 3 m
- Cable wires: 17-wire, shielded
- Jacket material: PE-X
- Cable diameter: 9.1 mm
- Locking plug connector: Quick screw connection
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Power, serial, CAN, digital I/Os
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Max permissible current at 50 °C: 3 A on contacts 1 (blue) and 2 (brown), others max 100 mA
- Max permissible current at 40 °C: 2 A for two contacts, 1.5 A for 15 contacts
- Dimensions (H x L x W): 20mm x 3000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- 3 m, 17-wire, shielded PE-X cable with 9.1 mm diameter
- Quick screw locking plug connector
- High bending radius suitable for flexible use and drag chain operation
- Supports max. permissible current strength of 3 A on specific contacts
- Durable for 1,000,000 bending cycles
- Operating temperature range from -40 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Power, serial, CAN, and digital I/O signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YF2ASD-030XXXXLECX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
