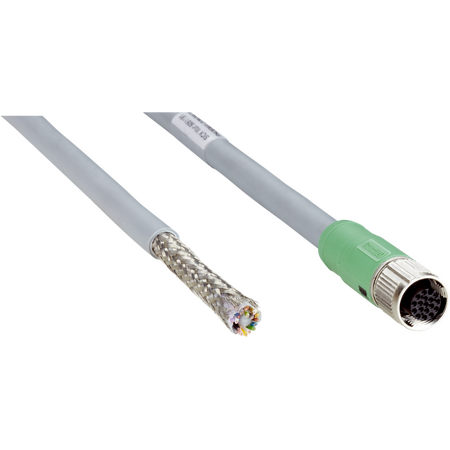

Industrial M12 17-Pin Cable | 5m Length | Shielded & Flexible | by SICK
The Industrial M12 17-pin cable is designed for robust performance in automation systems, featuring a 5m length and a shielded, flexible design. Ideal for drag chain operations, it supports power, serial, CAN, and digital I/O signal transmission, ensuring reliable connectivity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial M12 17-pin cable, SICK M12 connector cable, Drag chain cable with flying leads
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 5 m
- Cable wires: 17-wire, stripped, PE-X jacket
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Locking plug connector: Quick screw connection
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Power, serial, CAN, digital I/Os
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Max permissible current at 50 °C: 3 A on contacts 1 (blue) and 2 (brown), others max 100 mA
- Max permissible current at 40 °C: 2 A for two contacts, 1.5 A for 15 contacts
- Dimensions (H x L x W): 20mm x 5000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- 5 m long, 17-wire cable with PE-X jacket
- Shielded cable with 9.1 mm diameter
- Quick screw locking plug connector
- High bending radius suitable for flexible use and drag chain operation
- Supports max. permissible current strength of 3 A on specific contacts
- Durable for 1,000,000 bending cycles
- Operating temperature range from -40 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Power, serial, CAN, and digital I/O signal transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2ASD-050XXXXLECX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
