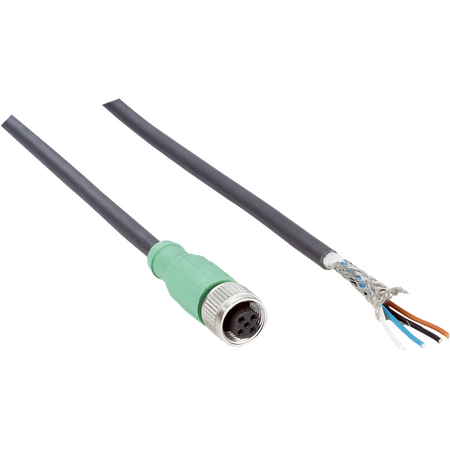

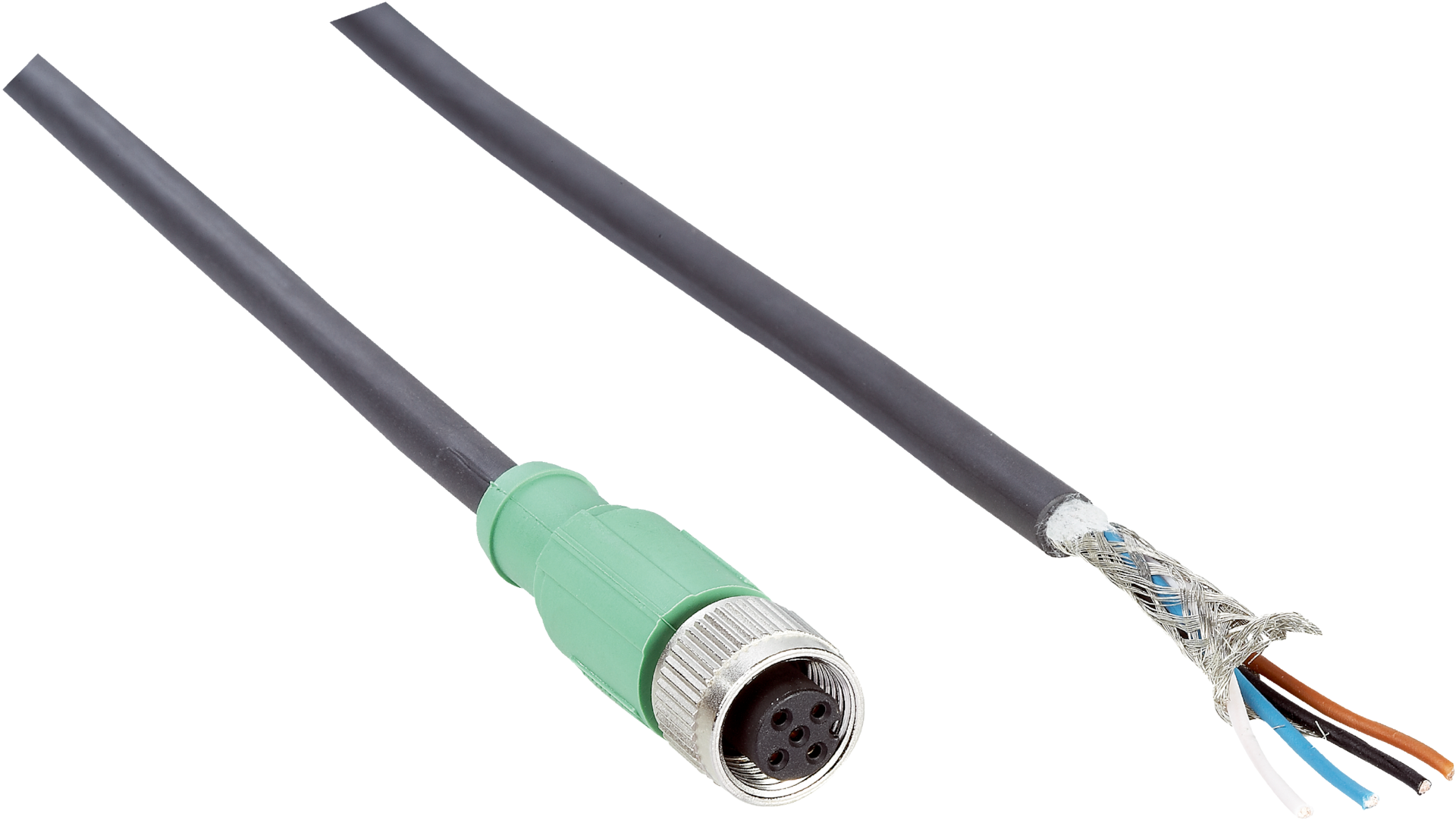

Industrial M12 Cable | 20m Length | 5-Pin Female Connector | Shielded & Halogen-Free | by SICK
The Industrial M12 Cable is designed for robust applications, featuring a 20m length with a 5-pin female connector and shielded construction. Ideal for industrial automation and robotic operations, this cable is made from halogen-free PUR material, ensuring safety and durability in uncontaminated zones and areas with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Industrial M12 Cable, Robot Drag Chain Cable, SICK M12 Connector Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 20 m, 4-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 6.2 mm
- Conductor cross section: 0.75 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: 1,000,000
- Reference voltage: ≤ 300 V
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Power
- Dimensions (H x L x W): 20mm x 20000mm x 20mm
- Weight: 1.2 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded
- Flying leads connection type
- Cable length: 20 m, 4-wire, PUR, halogen-free
- Cable diameter: 6.2 mm
- Shielded cable with TPU connector material
- High bending radius for flexible use (>10x cable diameter) and stationary position (>5x cable diameter)
- Durable locking nut made of zinc die-cast, nickel-plated
- Supports traversing speed up to 3 m/s and travelling distance of 10 m
- Acceleration up to ≤ 10 m/s²
- Designed for power signal type
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2Z15-200UE1XLEAX industrial cable is available for immediate purchase, ideal for industrial automation and robotic applications.
