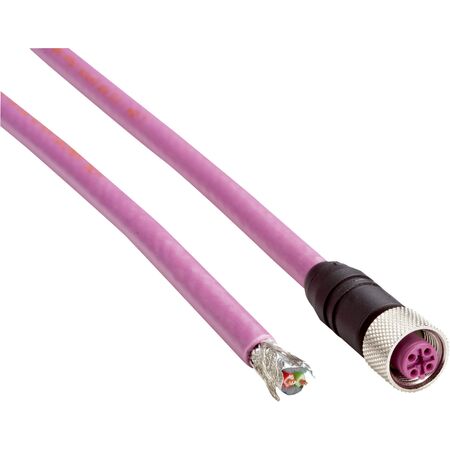

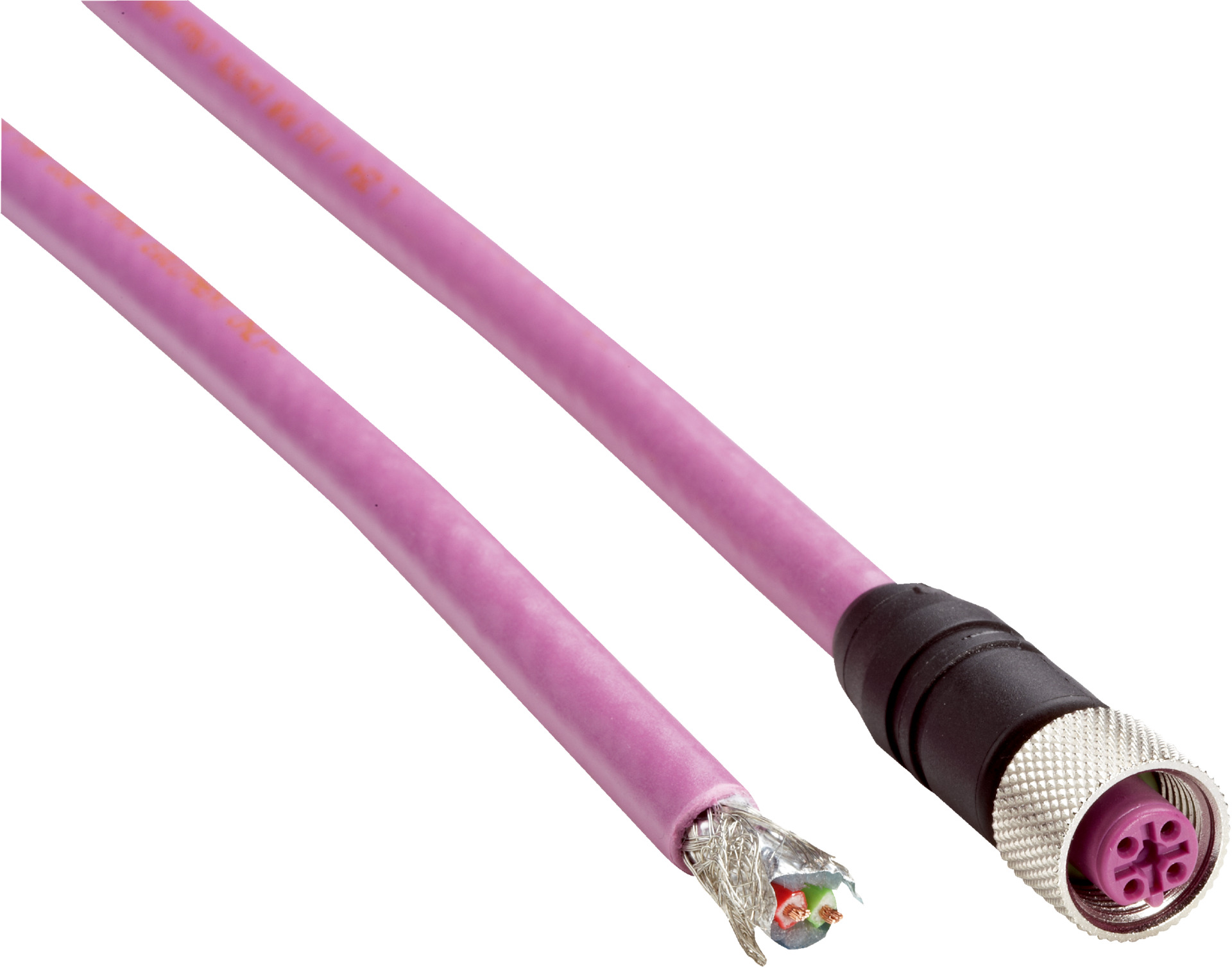

Industrial M12 Cable | 30 m PUR Halogen-Free | IP67 Rated | Shielded Twisted Pair | by SICK
The Industrial M12 Cable is designed for robust fieldbus communication, featuring a 30 m PUR halogen-free cable with a violet jacket and IP67 rating for dust and water protection. Ideal for industrial automation and control systems, this cable ensures signal integrity with its shielded twisted pair design, making it perfect for environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.5 Nm
- Cable length: 30 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.6 mm
- Conductor cross section: 2 x 0.34 mm²
- Shielding: Shielded twisted pair
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 1,000,000
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Application: Zones with oils and lubricants
- Enclosure rating: IP67
- Operating temperature flexible use: –25 °C to +80 °C
- Operating temperature stationary position: –50 °C to +80 °C
- Drag chain operation temperature: –25 °C to +60 °C
- Head temperature range: –25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 30000mm x 10mm
- Weight: 0.5 kg
Key Features
- Female M12, 5-pin, straight, B-coded connector
- 30 m PUR halogen-free cable with violet jacket
- Shielded twisted pair cable for signal integrity
- High bending radius for flexible and stationary use
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -50 °C to +85 °C
- Suitable for drag chain operation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial cabling and fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus and PROFIBUS DP communication networks
- Zones with oils and lubricants requiring durable cabling
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-1205-G30MQ industrial cable is available for immediate purchase, ideal for industrial automation and communication applications requiring robust and reliable cabling.
